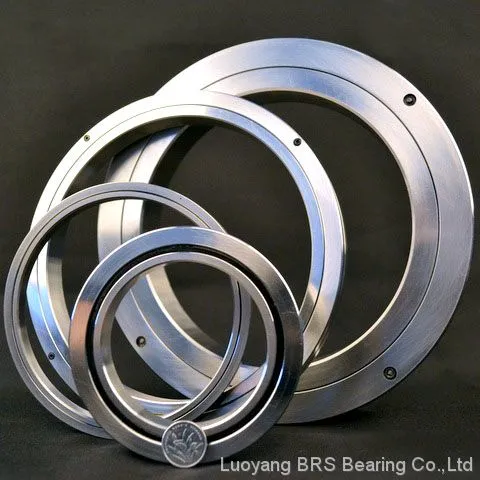

RA15008 Crossed Roller Bearings 150*166*8mm
US$ 10 - 500
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
RA15008UUCC0P5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
45 days
Related Products
-
RA16013 Crossed Roller Bearings 160*186*13mmUS$ 10 - 500MOQ: 5 Sets -
RE15025 Crossed Roller Bearing 150*210*25mmUS$ 10 - 500MOQ: 5 Sets
-
RE30025 Crossed Roller Bearing 300*360*25mmUS$ 10 - 500MOQ: 5 Sets
-
RE25040 Crossed Roller Bearing 250x355x40mmUS$ 10 - 500MOQ: 5 Sets
-
CRBH208AUU Crossed Roller Bearings 20x36x8mmUS$ 10 - 500MOQ: 5 Sets
Brand Name
RIGBRS
Place of Origin
China
Model Number
RA15008UUCC0P5
Feature
Cross Roller
Seals Type
sealed both sides
Outside Diameter
66, 226
Bore Size
50, 200
Gear Options
Nongeared
RA15008 crossed roller bearings specifications
size: 150*166*8mm
structrue: thin section crossed cylindrical roller bearings with separable outer ring and integrated inner ring.
sealing: sealed both sides
clearance: CC0/C0
precision: P5/P4
RA15008 crossed roller bearings have thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.
RA series crossed roller bearing provides high and stable running accuracy, suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.
| Part No. | Dimension (mm) | Shoulder Height | Load Rating | Mass | ||||
| d | D | B | ds(max) | Dh(min) | Cr (kN) | Cor (kN) | (kg) | |
| RA5008 | 55 | 66 | 8 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 |
| RA6008 | 60 | 76 | 8 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 |
| RA7008 | 70 | 86 | 8 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 |
| RA8008 | 80 | 96 | 8 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 |
| RA9008 | 90 | 106 | 8 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 |
| RA10008 | 100 | 116 | 8 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
| RA11008 | 110 | 126 | 8 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
| RA12008 | 120 | 136 | 8 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 |
| RA13008 | 130 | 146 | 8 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 |
| RA14008 | 140 | 156 | 8 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 |
| RA15008 | 150 | 166 | 8 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 |
| RA16013 | 160 | 186 | 13 | 165 | 179 | 23.3 | 44.9 | 0.59 |
| RA17013 | 170 | 196 | 13 | 175 | 189 | 23.5 | 46.5 | 0.64 |
| RA18013 | 180 | 206 | 13 | 185 | 199 | 24.5 | 49.8 | 0.68 |
| RA19013 | 190 | 216 | 13 | 195 | 209 | 24.9 | 51.5 | 0.69 |
| RA20013 | 200 | 226 | 13 | 205 | 219 | 25.8 | 54.7 | 0.71 |
