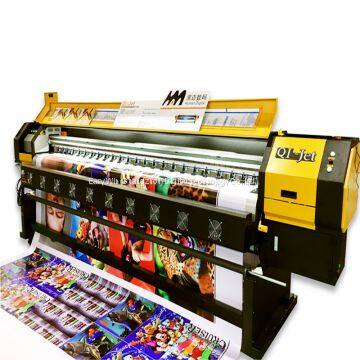

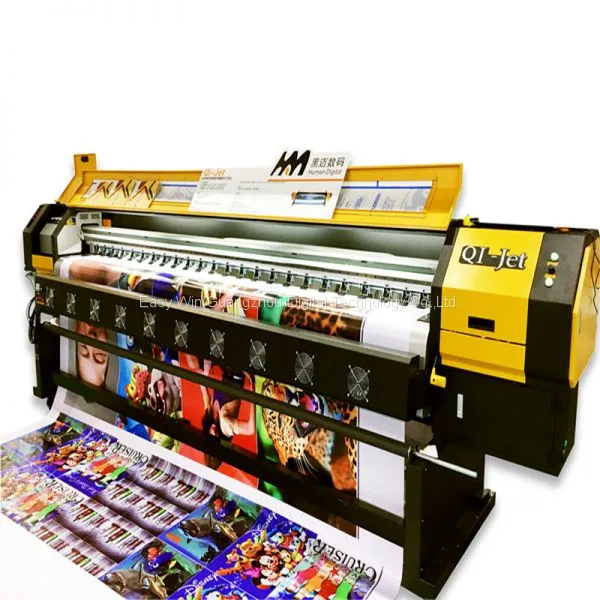

3.2m 8 Konica Heads Large Format Solvent Printer PVC Vinyl Printing Machine

New industrial print head, Overall technical upgraded, Perfect workmanship
8 heads speed: 260 m2 /hr, a great combination of high speed & performance & price ratio

Printer component

*New print head KONICA 512i adoption

* Adopt 8 pcs of Konica 512i high speed print heads, Printing speed is up to 260 m2/hr.

* Printheads moisturizing protection for overnight

* AC servo motor, auto conversion between encoder and raster film, to enhance the printing precision

* Carriage can be raised up and down by manual operation

Printing platform

* Width of print platform increased from 115mm to 200mm

* Wider pinch roller, ensuring the material is seamless with platform

*  Add the LED lights, convenient for observe output quality and the test result

Multi-stage heating system

* Ultra wide preheat table, infrared heating

* Carriage chassis, secondary ink cartridges, ink pipes triple heating

Framework

* Aluminous crossbeam

* Heavy frame, more beautiful

Release & take up system

* Release system changes to three-axe synchronous and adds guiding roll for release & take up

Resolution & Speed

* High quality model: 360×720dpi  100m2/hr

* Production model: 360×540dpi 160m2/hr

* High speed model: 360×360dpi 260m2/hr

Print head

* KONICA 512i high speed printhead: 30pl

*Auto anti-clogged flash head maintenance system

Feeding system

* Three-axe synchronous releasing system, release media without motor, optional tension system

Media

* Modalities: Roll to Roll media

* Specification: Max width 3.2 meters, unlimited length

* Classifications: Soft material, including PE, PP, ABS, PU, Vinyl, banner and PVC, etc.

Inks

* KONICA Certification (Solvent Ink, Eco-solvent Ink)

Print format

* PDF, PS, EPS, TIFF, AI etc. (RGB/CMYK)

RIP

* PhotoPrint Edition version,  Ultra Print, ONYX X10, MainTop, Ultraprint

Environment & Power

* Temperature: 20-30℃

* Humidity: 45-75%RH

* Gross power: 5.5KW

Format dimension

* 4700L×1100W×1680H(mm)

Weight

* 650KG
