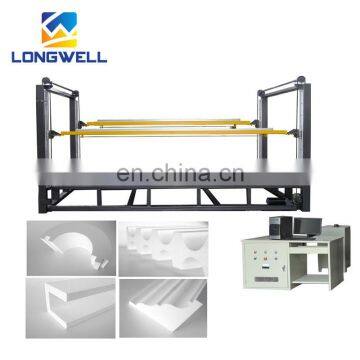

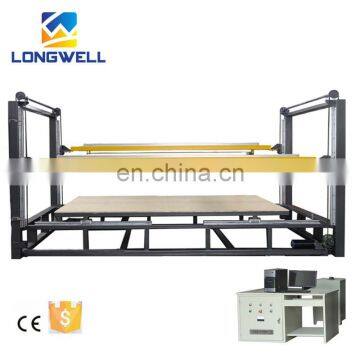

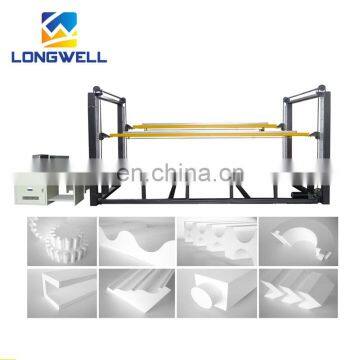

Longwell Top Quality High Accuracy CNC Foam Cutting Machine
It cuts the big foam block to various shapes with electricity hot wire, Ability to cut 30 pieces of identical figures synchronously.
Longwell Top Quality High Accuracy CNC Foam Cutting Machine Technical Data | ||||||||
Item | Unit | LWQ-2000D | LWQ-3000D | |||||
Initial block | length | mm | ≦2000 | ≦3000 | ||||
width | mm | ≦2000 | ≦3000 | |||||
height | mm | ≦1260 | ≦1260 | |||||
Cut size | horizontal | mm | ≦2000 | ≦3000 | ||||
vertical | mm | ≦1000 | ≦1000 | |||||
sideway | mm | ≦1200 | ≦1200 | |||||
Cut speed | m/min | 0~0.5 | 0.5-1 | |||||
Wire diameter | mm | 0.35 – 0.6 | 0.2 – 0.8 | |||||
power | V/Hz | AC380/50 | AC380/50 | |||||
Connected load | heating | Kw | 7.3 | 7.3 | ||||
cutting | Kw | 3.7 | 3.7 | |||||
Overall dimension | mm | 4000*2400*2200 | 3200*3200*2500 | |||||
Weight | Kg | 1000 | 1500 | |||||
Specifications of Longwell Top Quality High Accuracy CNC Foam Cutting Machine
1. This machine have 4 stepping motor ,which control x axis and y axis and have High Performance heated wire, which is alloy wire, composed by Ni,Cr,Co,Mo and Ti.
2. CNC cutting machine can cut different shapes through computerized x axis and y axis running horizontally or vertically same time, then heated wire can cut EPS foam after heated.
3. There are two ways to input picture of products, draw by professional linear cutting software or input the picture by scanning drawing board.
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Hangzhou station
By truck from Kashgar, Urumuqi or other checkpoint
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal & use the machine.
* Engineers available to service machinery overseas.
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. Other payment terms can also be negotiated.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
