What Is Diffuser
Tube Air Diffusers for effluent treatment

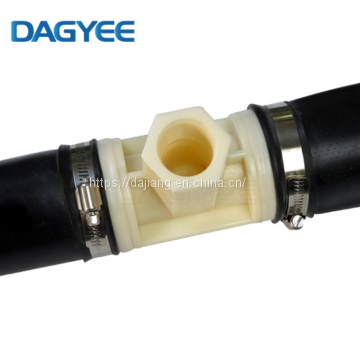

A suitable adapter can be used to connect one side of the Tube Air Diffusers for sewage treatment or in pairs to different rectangular and circular tubes ABS material . The diaphragm is made of high-quality EPDM material and has fine or coarse bubble perforations. When changing the membrane, the supporting tube ABS or PVC material can be reused.
Diffusers are typically connected to a piping system which is supplied with pressurized air by a blower. This system is commonly referred to as a diffused aeration system or aeration grid.

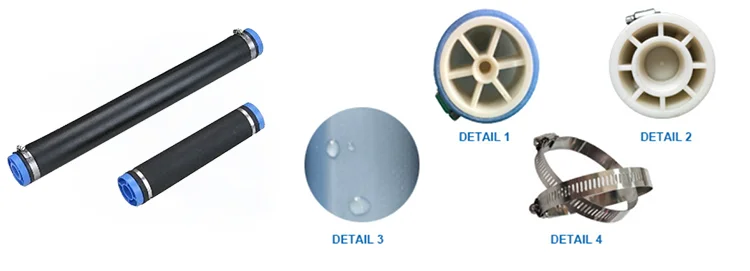

Diffuser Parts
Especially recommended for the construction of mobile aeration systems, and all cases where a large output surface area is required when only a small amount of air distribution ducts are required.
The diffuser mainly composed
A threaded head,
A rigid polypropylene support and
A tubular membrane with tiny holes in the elastomer
Fixed with a stainless steel band clamp
Diffuser Technical Table
| Model | φ63*500 | φ63*750 | φ63*1000 |
| MOC | EPDM/Silicon membrane | EPDM/Silicon membrane | EPDM/Silicon membrane |
| ABS /PP carrier plate | ABS /PP carrier plate | ABS /PP carrier plate | |
| Length | 500mm | 750mm | 1000mm |
| Connector | 3/4 NPT | 3/4 NPT | 3/4 NPT |
| Flow range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| Bubble Size | 0.8-2mm | 0.8-2mm | 0.8-2mm |
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-3.5m² |
| Service Life | >8 year | >8 year | >8year |
DAGYEE Diffuser Features
Increased dissolved oxygen DO
Declining biochemical oxygen demand BOD
Improved treatment of TSS total suspended solids
Short notice emergency aeration and simplified treatment repair
Aeration system energy savings
Overall reduction in maintenance
Diffuser Used
Industrial Wastewater Aeration
Portable And Versatile Aeration System
Efficient Mixing & Aeration
Emergency Wastewater Aeration
Many Years of Experience at Your Service
Diffuser Application
Preservation aeration of waste water
Oxygenation of activation basins
Oxygenation to stabilize sludge
Aeration of rivers and lakes
Aeration of fish ponds
CO admission for neutralization
