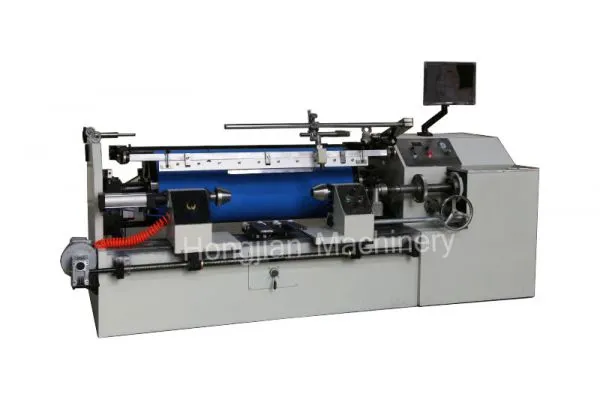

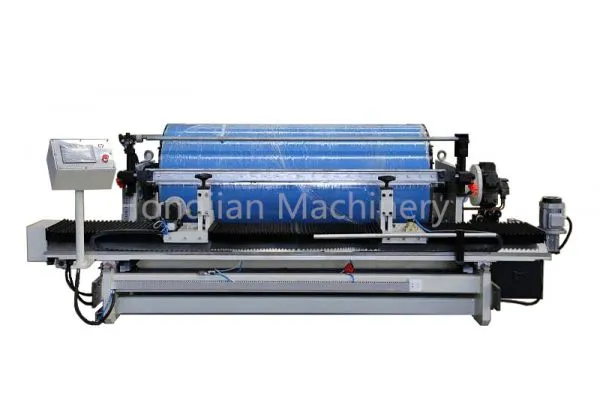

Rotogravure Proofing Machine Gravure Cylinder Proofing Printing Cylinder Proofer Proof Press
US$ 20,000.00 - 40,000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hongjian
Place of Origin:
China
Model Number:
HJ-DYJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
50 days
Related Products
-
Gravure Cylinder Copper Polishing Machine Rotogravure Cylinder Buffing Wheel MachineUS$ 20,000.00 - 50,000.00MOQ: 1 Set -
Double Head Copper Grinding Machine Rotogravure Cylinder Finishing Machine Grinding Stone Polishing MachineUS$ 20,000.00 - 50,000.00MOQ: 1 Set
-
Gravure Cylinder Chrome Polishing Machine Chrome Surface Finishing Machine Sand Belt Rotogravure Chrome PolisherUS$ 20,000.00 - 50,000.00MOQ: 1 Set
-
Gravure Cylinder Plating Machine Plating Tank Plating Bath Plating Line Galvanic LineUS$ 30,000.00 - 500,000.00MOQ: 1 Set
-
Rotogravure Proofing Machine Gravure Cylinder Proofing Printing Cylinder Proofer Proof PressUS$ 20,000.00 - 40,000.00MOQ: 1 Set
Brand Name
Hongjian
Place of Origin
China
Model Number
HJ-DYJ
Type
Other, Gravure Cylinder Proofing
Certification
CE, ISO9001
After-sales Service Provided
No overseas service provided
Warranty
1 YEAR
Weight
3200 kg
Dimension(L*W*H)
3100*1500*1300mm
Voltage
380V
Condition
New
Power(W)
4 KW
Automatic Grade
Automatic
The new generation automatic proofing machine combines the past experience of designer and intelligent CNC technology development. The machine is operated by an industrial touch-screen computer. It adopts imported linear guide, imported bearing ABB dynamo, and SMC pneumatic element. Particularly suitable for plastic, paper, leather, PVC, plastic and plastic packaging printing roller proofing, suitable for gravure business, decoration materials production enterprises, gravure packaging printing enterprises, wallpaper production enterprises, printing ink production enterprises.
Main Technical Parameters:
Press roller diameter: Φ500
Rubber coating width: 1400mm
Rubber coating thickness: 3mm
Max. printing width: 1400mm
Cylinder length: 420-1400mm
Cylinder diameter: 115-350mm
Printing speed: 7-40m/min
Printing press: Pneumatic cylinder pressure 3-4 kg/cm2
Scraper adjustment: Manual adjustment
Angle adjustment: Manual adjustment
Drive power: 3kw, 120-1200 rpm
Features:
1. Proofing speed can be displayed and controlled.
2. Proofing pressure can be displayed and controlled.
3. Squeegee pressure can be displayed and controlled.
4. Squeegee Angle can be displayed and controlled.
5. The proofing success rate is improved, reducing the rework rate.
6. The shallow network transfer rate is improved. More than 3% of network can be transferred.
automatic control. Transducer adopts Fuji transducer, increase the service life of complete appliance.
