1. Usually manufacture 3 layers of face mask(1st layer: PP Non-woven; 2nd layer:Melt-blown filter paper; 3rd layer: PP Non-woven) with our ultrasonic generator machines;
2. It uses horn area can be reached maximum with 5 layers, even 6 layers face masks.
Home > Industrial Equipment & Components > Welding Equipment > Plastic Welder > 20Khz 2000W Ultrasonic System For Face Mask Welding With Continues Welding
20Khz 2000W Ultrasonic System For Face Mask Welding With Continues Welding
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
RPS-sonic
Place of Origin:
China
Model Number:
RPS-2000E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20khz 2000watts Ultrasonic Welding Device for Mask MachineNegotiableMOQ: 2 Sets -
20khz 2000 Watts Ultrasonic Welding Equipment For Ear LoopNegotiableMOQ: 2 Sets
-
35khz 800w Ultrasonic Sewing Machine With Digital GeneratorNegotiableMOQ: 1 Set
-
20KHZ 2000W Ultrasonic Sewing Machine for PP Woven Bag WeldingNegotiableMOQ: 1 Piece
-
20K 2000W Ultrasonic Sewing Machine For Welding Efficient of Ultrasonic Welding EquipmentNegotiableMOQ: 1 Piece
Brand Name
RPS-sonic
Place of Origin
China
Model Number
RPS-2000E
After-sales Service Provided
Engineers available to service machinery overseas
Weight
12KG
Voltage
220V
Power
2000watts
Usage
For mask ear loop welding machine
Frequency
20KHZ
Welding Area
110*20mm
20Khz 2000W Ultrasonic System For Face Mask Welding With Continues Welding
We can produce several plays with horn/mould on different appliacation
Parameter:
| Item | Parameter |
| Generator | 2000E |
| Power | 2000W |
| Frequency | 20Khz |
| Weight | 12Kg |

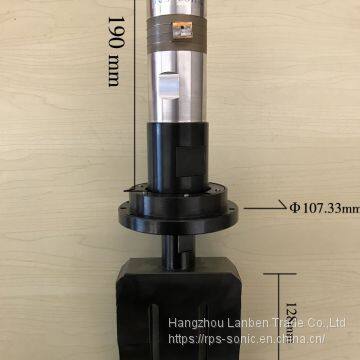

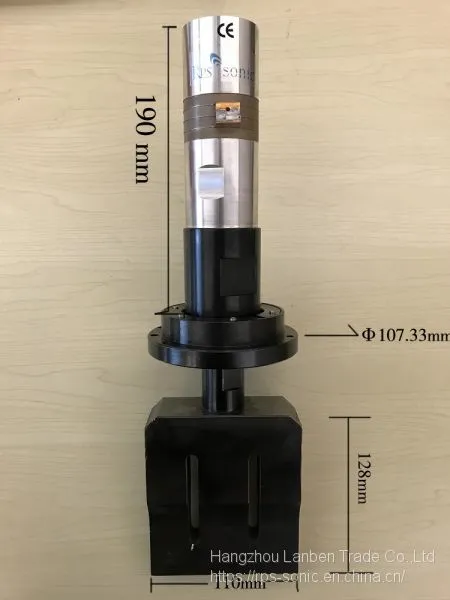

| Horn dimension | 110*20 |
Ultrasonic welding principle:
1. High-frequency vibration transmits the ultrasonic energy to the welding area through the upper
weldment, and the upper and lower weldments in this area are rubbed to generate local high temperature.
2. After the ultrasonic action, the pressure lasts for a few seconds to make it set and form a
strong molecular chain to achieve welding.
3. Ultrasonic generator converts low-frequency alternating current into high-frequency alternating current,
and converts electrical energy into mechanical energy of high-frequency vibration through a transducing capacity.
4. When the welding horn acts on the contact surface of the thermoplastic, it generates tens of thousands of
4. When the welding horn acts on the contact surface of the thermoplastic, it generates tens of thousands of
high-frequency vibrations per second
Our Advantages:
1. Ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
2. The ultrasonic generator is also a part of the ultrasonic energy production, our ultrasonic generator adopts imported electronic components, hardcover.
3. With a high-powered ultrasonic transducer with a titanium alloy ultrasonic horn
4. The machine failure rate is low, consumables, durable, easy installation and debugging, maintenance is simple.
