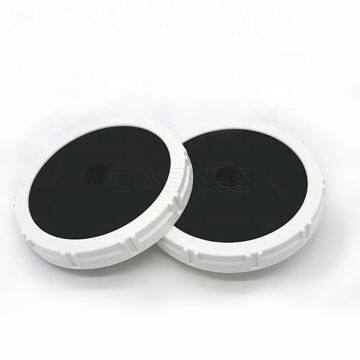

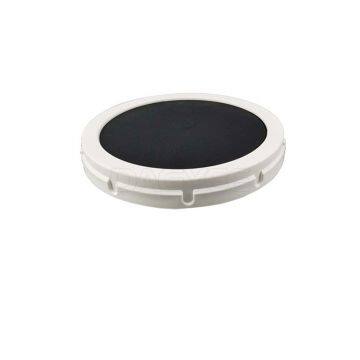

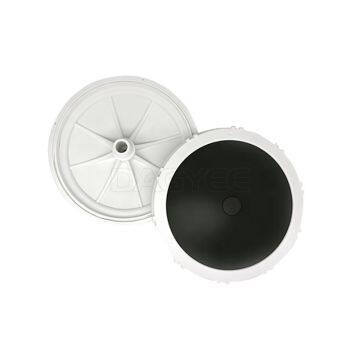

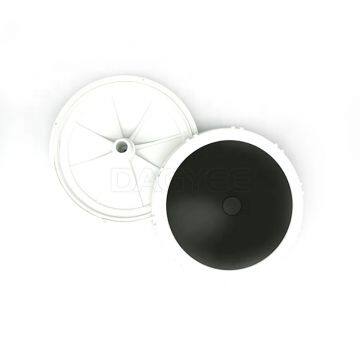

Disc Diffuser For Sewage Treatment
USD $3 - $10
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Tubular Membrane Microbubble Air Diffusion Aeration Tube for Water Treatment
-
Oxygen air tube bubble Air Diffusers for Aeration tanks Water Treatment
-
Tubular Membrane Microbubble Air Diffusion Aeration Tube for Water Treatment
-
Tubular Membrane Microbubble Air Diffusion Aeration Tube for Water Treatment
-
Tube Air Aerators for wastewater treatment
-
Tube Air Aerators for wastewater treatment
Product Details
| Brand Name | Dadyee | Place of Origin | China | |
| Model Number | Disk Aerator Fine Bubble Disc Diffuser |
Product Description
Air disk bubble diffuser
Air disk bubble diffuser for transferring air and oxygen together with air to sewage or industrial wastewater. Microorganisms in water require oxygen to break down pollutants. The Air Disc Fine Bubble Diffuser series combines an effective design with low installation cost, reliability and high performance during intermittent and continuous aeration. Specially designed slits cut slits, slits and patterns for high oxygen transmission and long-term operation
Technical Table
| Model | φ215mm | φ260mm | φ300mm |
| Size | 8 inch | 9 inch | 12 inch |
| Bubble size | 1-2mm | 1-2mm | 1-2mm |
| Working air flow (m3/h) | 1.5-3 | 2-5 | 2-8 |
| Designed air flow(m3/h) | 2 | 3 | 4 |
| Service area(m2/piece) | 0.25-0.45 | 0.35-0.65 | 0.45-0.75 |
| Oxygen utilization ratio(%) | >30 | >30 | >30 |
| Oxygenate capability(kgO2/h) | 0.13-0.35 | 0.18-0.45 | 0.25-0.5 |
| Water submerged depth(m) | 4-6 | 4-6 | 4-6 |
| Theoretic dynamic efficeny(kgO2/kw.h) | 6.5 | 6.5 | 6.5 |
| Drag loss(pa) | <3000 | <3000 | <3000 |
| Shape | Arch type | Arch type | Arch type |
| Flat type | Flat type | Flat type | |
| Connection | 3/4 NPT male thread | 3/4 NPT male thread | 3/4" NPT male thread |
Material
| Parts | Material | Features |
| membrane | EPDM/silicon | Easy to open |
| support plate | ABS | Large service area |
| Check valve | PP | The aerator diaphragm has sufficient extension |
| O-ring | EPDM | Good sealing performance |
| Saddle support | ABS/EPDM/UPVC | Strong overall strength and long service life |
