PSA Oxygen Generator Equipment and Oxygen Pressure Compressor and Oxygen Cylinders Filling Manifold System Set

PSA Oxygen Generator Equipment and Oxygen Pressure Compressor and Oxygen Cylinders Filling Manifold System Set

PSA Oxygen Generator Equipment Set, Liquid Oxygen Tank and Evaporator Set, Automatic / Manul Oxygen Cylinders Manifold Set, these 3 kinds of equipment is used in hospitals / clinics as medical oxygen source equipment.

The PSA Oxygen Generator Set is the latest technology one, used by midium and big scale medical organizations to produce and supply Oxygen gas.

1, What is PSA Oxygen Generating Technology?

This is PRESSURE SWING ADSORPTION / PSA process:

It has 2-vessels filled with Zeolite Molecular Sieves. Clean compressed air at 30ºC is passed through 1-vessel and Oxygen comes out as product gas. The other vessel is depressurized to atmospheric pressure and purged with little quantity of Oxygen coming out from other vessel. This regenerates Zeolite Molecular Sieves for use in next cycle. Thus 2-vessels keep cycling alternately in Oxygen production and Regeneration making Oxygen gas available continuously. These units are designed and supplied for 93% to 95% (Max) Oxygen purity.

2, Gas Flow Chart:

Air Compressor → Oil Separator → Air Dryer → Air Filter → Air Filter → Air Filter → Active Carbon Filter → Air Buffer Tank → PSA Oxygen Generator → Oxygen Buffer Tank → Oxygen Filter → Oxygen Tank

↗Oxygen Compressor / Booster (0.6MPa / 6Bar) → Oxygen Tank → Oxygen Pipeline System

↘Oxygen Compressor / Booster (20.0MPa / 200Bar) → Oxygen Cylinders

3, Salient Features:

(1) Full Autamtic: All systems are designed for un-attended operation and automaticlly Oxygen demand adjustment;

(2) Small Space Requirement: Our design and equipment make the plant size compact, assembly on skids, most equipment prefebricated in factory;

(3) Quickly Start-Up: From system Start-Up to getting desired Oxygen Purity, the time is no more than 30 minutes; This helps customer to reduce cost and can be switched On/Off as a On-Site Oxygen Source Equipment;

(4) High Reliability: Reliable for continuous and steady operation with constant Oxygen Purity; Even in biggest Oxygen outputing, system supplies no less than 93% purity Oxygen gas;

(5) Zeolite Molecular Sieves Life: CECA brand Zeolite Molecular Sieves life is more than 10 years;

(6) Low Investment and Energy Consumption Cost;

(7) Simple Operation and Maintanence.

4, Oxygen Producing Capability:

Different models have different oxygen producing capabiligy, we customize according users' requirements, and models of 3Nm³/hour to 200Nm³/hour are available.

5, Installing Service Out of China:

Available.

We can send professional working team to users' constructing site to do installing, commissioning, and user trainning;

Also, we can send experience engineer to user's constructing site to guid installing and commissioning processes by local engineering teams.

As a professional manufacturer, C&H Medical supply total solution service for medical gas pipeline system in medical organizations. Our service includes:

designing,

manufacturing,

installing,

commissioning,

user training,

maintenance.

Please contact us for more information details.

PSA Oxygen Generator System in User's Installing Site, in system equipment commissioning:

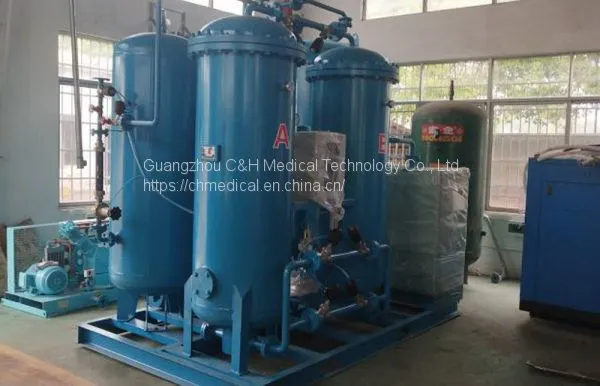

PSA Oxygen Generaotr System in user's workshop:
