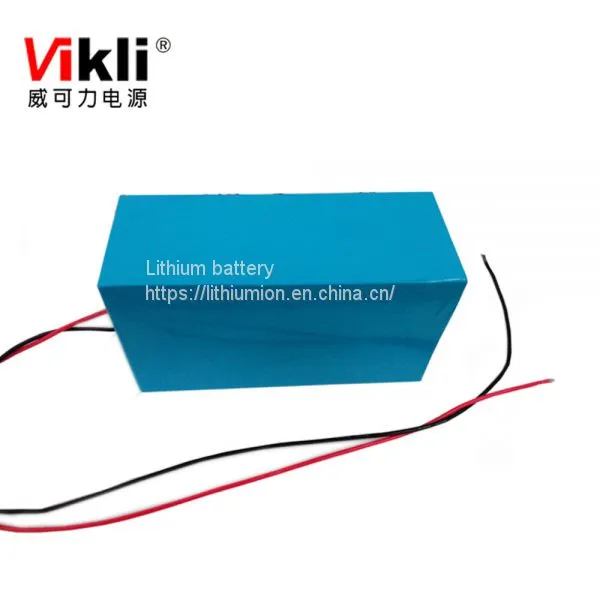

customized LiFePO4 Battery 24V Lithium ion 50Ah/100Ah/150Ah/200Ah Battery
Supplying: 24v 10ah/30ah/50ah/60ah/80ah/90ah/100ah/200ah/300ah/500ah lifepo4 battery pack for solar energy off-grid storage system.
PS: OEM is available
Detailed parameters of 24v 100ah battery lifepo4 battery
Cell |
model |
GLP20Ah-70170240 |
|
Capacity(0.5C) |
20Ah |
||
rated voltage(V) |
3.2V |
||
Typical Impedance (mΩ) |
≤2mW |
||
Battery material |
Lifepo4 battery |
||
|
Lithium ion phosphate battery pack |
Combination method |
5P8S |
|
Minimal capacity(0.5C) |
100Ah |
||
Nominal voltage |
24V |
||
Max. charge voltage |
28.8V |
||
Discharge cut-off voltage |
24V-25.6V |
||
Max Charge current |
50A |
||
Max Working current |
50A |
||
Standard charge current |
20A |
||
Standard discharge current |
20A |
||
Pack Impedance standard |
≤35mW |
||
Weight (Approx.) |
≈12Kg |
||
Max. dimension(L×W×H)(mm) |
≤ 150*175*260 |
||
|
Operating temperature |
Charge temperature |
0℃~45℃ |
|
Discharge temperature |
-20℃~55℃ |
||
Application of lifepo4 battery 12v 100ah:
Features of 12v 100Ah rechargeable battery:
1) Lithium iron phosphate battery cell with high capacity, light weight, high consistency, high security.
2) LiFePO4 battery cell with long cycle life > 2000 times.
3) No memory effect, environmental friendly
4) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.
5) Lithium battery cells can be combined in series to increase voltage and parallel to increase capacity.
Warning of 12v 20ah40ah60ah80ah100ah200ah battery pack:
Use the battery charger specifically for that purpose when recharging.
Do not discard the battery in fire or a heater.
Do not dismantle the battery
Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
Do not use or leave the battery near a heat source such as fire or heater.
Please choose Telecom Power supply charger when charging.
Do not reverse the positive and negative terminals.
Do not connect the battery to an electrical outlet.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
1) What is your main product?
We specialized in LiFePO4 battery, NMC complex lithium ion battery, lithium polymer battery.
2) Do you provide sample?
Yes, we provide sample for your testing before you place an order.
3) What is the lead time?
According to the order volume. Sample needs 10-25 days, mass production needs 30-45 days.
4) What info should we offer?
Your requirement about dimension, max. working current, constant current, max. load, communication protocol, iron case protection level, the application.
