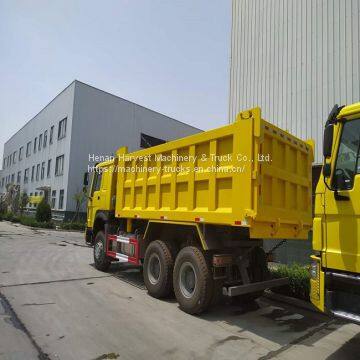

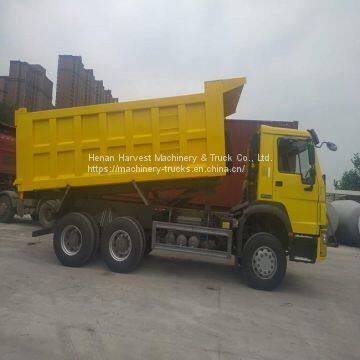

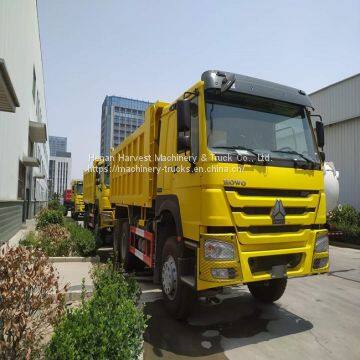

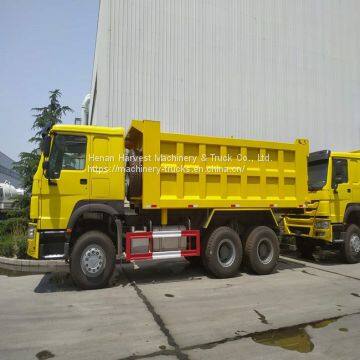

Howo Dump Truck
ZZ3257N3847A Sinotruck Howo heavy tipper trucks are good choice of clients .The dump trucks can be used for transporting stones,sands,minerals etc,
Our Sinotruck Howo dump tipper truck emission standard euro 2 drive type rhd 6x4 high performance 30-40 tons loading capacity.
Engine: Euro2 or Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 are available
Horse Power: 266hp, 290hp, 336hp, 371hp, 420hp for option
HOWO 6x4 336hp dump truck | ||||
Truck Model | ZZ3257N3847A | |||
Steering type | left hand or right hand | |||
Dimension of box (LxWxH) | 5800x2300x1500 mm | |||
Thickness of box (mm) | bottom 8mm, side 6mm | |||
Lifting Type of carriage | middle lifing | |||
Overall dimensions (LxWxH) | 8607*2560*3386 mm | |||
Approach angle/Departure angle(°) | 19/23 | |||
front/rear suspension (mm) | 1500/1870 | |||
Wheelbase (mm) | 3825+1350 | |||
Max speed(km/h) | 75 | |||
Vehicle Curb weight(kg) | 12460 | |||
Gross mass (kg) | 25000 | |||
Engine
| Model | SINOTRUK WD615.69, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||
Power, max(kw/rpm) | 336 HP | |||
Emission | Euro2 | |||
Transmission | Model | HW19710, 10 speeds forward ,2 reverse | ||
Brake system
| Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Auxiliary brake | Engine exhaust brake | |||
Steering system | Model | 8118,hydraulic steering with power assistance | ||
Front axle | HF 9,drum type | |||
Driving axle | HC16,16ton double reduction | |||
Tire | 12.00R20 radial/12R22.5 tubeless,11pcs (one spare) | |||
Clutch | φ430 diaphragm spring clutch,hydraulic control air power assisted | |||
Cab | HW76 2 seats & 1 sleeper with A/C 4-point support floating suspension and shock absorbers, up/down and front/back adjustable steering wheel, VDO instrument and control module,safety belt , air horn,outer sun visor. | |||
Electric system | Battery | 2x12V/165Ah | ||
Alternator | 28V-1500 KW | |||
Starter | 7.5 Kw/24 V | |||
Color | red,white,yellow. Optional as per customer’s requests. | |||
Competitive Advantage
1) competive price, cost-effective
2) with all kinds of truck model, which can satisfy your requirements
3) all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight, high rigidity, high loading capacity
4) using the high strength steel, make it has a long service life
5) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6) excellant apperance of cabin, safety, reliable
7) quick and efficient spare parts supply bring you more convenient
8) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9) The hydraulic sytem using HYVA brand or Domestic famouse brand
10) low fuel consumption
11) strong enough engine
12) fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
