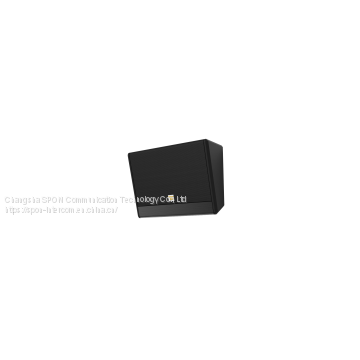

XC-9602A/B IP AUDIO SPEAKER (INDOOR 2×30W)

Name: XC-9602A/B IP AUDIO SPEAKER (INDOOR 2×30W)
Brand: SPON
SKU: 162694457
Availability: InStock

US$ 1 - 900 MOQ: 1 Piece

Key Specifications

Brand Name:

SPON

Place of Origin:

China

Model Number:

XC-9602A/B

Changsha SPON Communication Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hong kong/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SPON

Place of Origin China

Model Number XC-9602A/B

PURPOSE：

For offices, classrooms, meeting rooms communication.

FEATURES：

1. With an integration of the network audio decoding, digital amplifier and audio speaker.

2. Adopting A7 528M integrated industrial grade chip, start-up time≤3s.

3. Built-in class-D digital amplifier, CD level voice output, power output: 2×30W (DC adapter) and 2×10W (POE).

4. Inverse-phase box design, divide-by-two fractional frequency design.

5. Compound horn, adopting 5”LF component and 3”HF components, perfect reduction of human voice and music.

6. Possessing Offline ringing function, integrated with 2G RAM, being able to import timed task, automatic broadcasting when offline.

7. Possessing NTP automatic time correction function, avoiding the ringing task failure caused by long time offline.

8. Two audio input lines, one of them can be configured as microphone input.

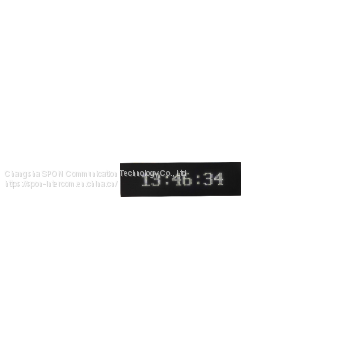

9. Possessing USB 2.0 interface, can be connected with LED clock (SEC-M1101A), synchronously display time and text.

10. Built-in 7 EQ digital equalization units, being able to adjust the sound effect according to the environment of installation site.

11. Optional: constant voltage backup module, connecting 100V constant voltage broadcasting circuit as the backup line.

12. Optional: wireless receiving module, 2.4G wireless microphone (NCS-R29):

12.1. Supporting automatic pair with the speaker when booting.

12.2. Supporting local amplification, the volume can be adjusted by the microphone.

12.3. Possessing wireless infrared laser sensor, 8+ hours operating time.

12.4. Computer control function, wireless page turning, zoom in & out, window switch, desktop display, video play & pause, screen off, power off.

SPECIFICATIONS

	XC-9602A	XC-9602B
POEWR SUPPLY & CONSUMPTION	DC24V/2.7A, ≤65W	DC24V/2.7A, ≤70W
POWER OUTPUT	2×30W (8Ω)
NETWORK PROTOCOL	TCP/IP, UDP, ARP, ICMP, IGMP
NETWORK CHIP RATE	10/100Mbps
AUDIO CODE	MP2/MP3/PCM/ADPCM
AUDIO SAMPLING	8kHz～44.1kHz, 16bit, 8kbps-320kbps
S/N & FREQUENCY RESPONSE	≥80dB, 30Hz～18kHz	≥85dB, 50Hz～16kHz
NETWORK DELAY	≤30ms
INTERFACE	1×Power Supply, 1×RJ45, 1×USB, 2×Line In, 1×Line Out, 1×Constant Voltage Backup Input.
WORKING TEMP & HUMIDITY	0℃～45℃, 10%~90%RH (Not Condensing)	-10℃～50℃, ≤90%RH (Not Condensing)
DIMENSIONS	310x232x156.5mm	290x117x215mm
