Home > Instruments & Meters > Meter for Electricity > Multimeter > Acrel ADW210 Three Phase Din Rail Multi-loop Power Meter IOT With RS485/ Multi Channel Energy Meter

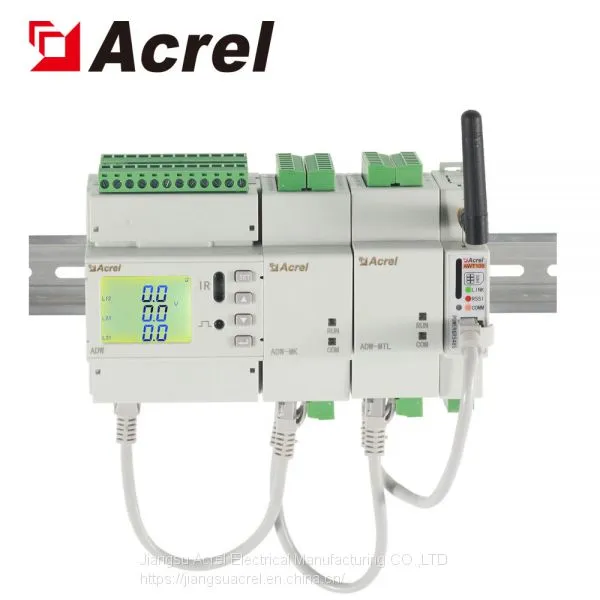

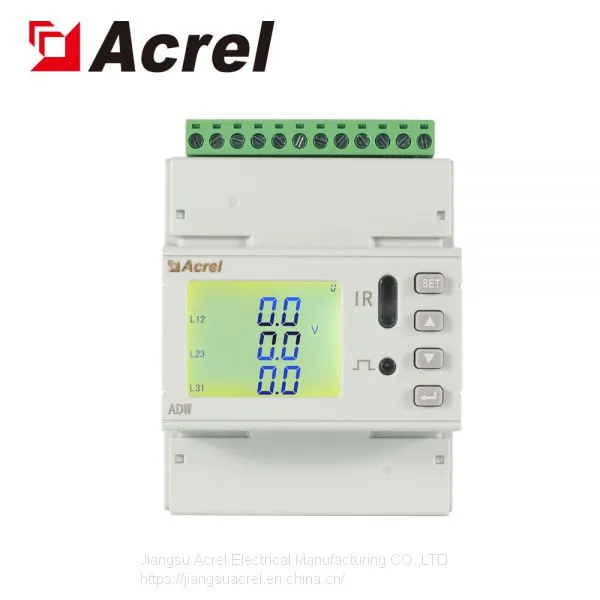

Acrel ADW210 Three Phase Din Rail Multi-loop Power Meter IOT With RS485/ Multi Channel Energy Meter
US$ 273 - 290
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADW210-D10-4S
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
5 days
Related Products
-
Acrel Wireless Energy Meters ADW300 Series/ 2G/4G/loar/NB IOT Power MeterUS$ 72.1 - 144MOQ: 1 Piece -
Acrel ADL10-E AC Single Phase Electrical Energy Meter/solar Power Meter//din Rail Energy MeterUS$ 17.5 - 25MOQ: 1 Piece
-
ACREL Low Price Single Phase Din Rail Smart Energy Meter ADL100-ETUS$ 35 - 50MOQ: 1 Piece
-
Acrel ADL3000-E Smart Electricity Meter / Din Rail Eneryg Meter/ Solar Power MeterUS$ 70 - 100MOQ: 1 Piece
-
Acrel ADL10-E/C Rs485 Modbus Protocol Single Phase Din Rail Energy Meter/1P AC Power MeterUS$ 23.8 - 34MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADW210-D10-4S
Operating Temperature
-25℃~55℃
Dimensions
71.5mm*72.2mm*97.7mm
Measuring Inductance Range
000000.00~999999.99kWh
Measuring Voltage Range
380V
Measuring Current Range
1-5A
Outline and size
Function
Measurement of all electric parameters of N(1,2,3,4) channels three-phase circuit.
Current transformer external.
1.Three pahse voltage, current, zero-sequence current, frequency;
2.Three phase power, total power(active, reactive, apparent);
3.Voltage and current phase angle, voltage and current imbalance.
4.Voltage, current total harmonic and 2nd-31st harmonic ;
5.Record of extreme values of voltage, current and power in current month and last month;
6.Maximum current, power demand and real-time current, power demand;
7.200 event records, recording the action of DI/DI, Support over-voltage, over-current, phase failure, Di linkage and other alarm output;
8.The rate of 4 time zones and 14times piriods can be set;
9.Four quadrant electric energy, 12-month multi rate electric energy statistics;
10.31 days four quadrant and multi rate electric energy freezing;
11.Active energy Class 1.0, and reactive electric energy Class 2.0;
12.Standard function : 2DI/DO, RS485, 1 way active pulse output (corresponding circuit can be switched)
