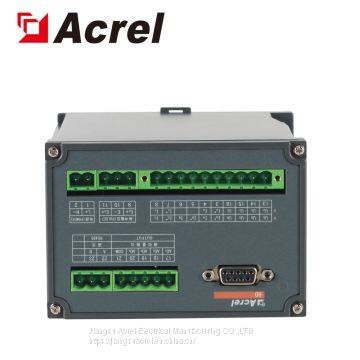

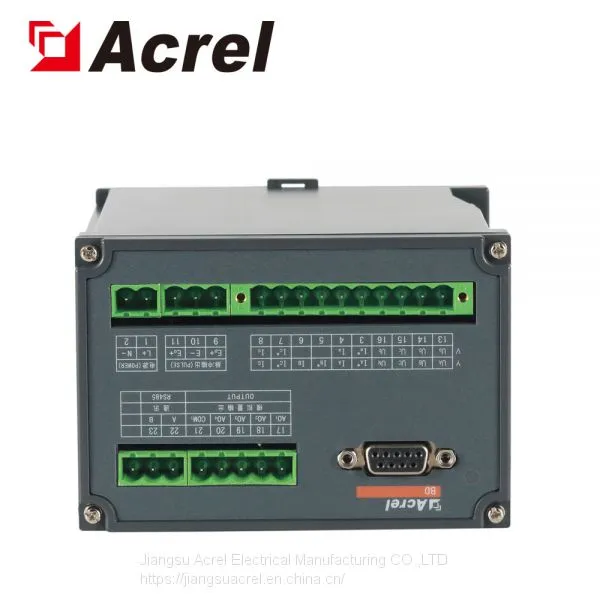

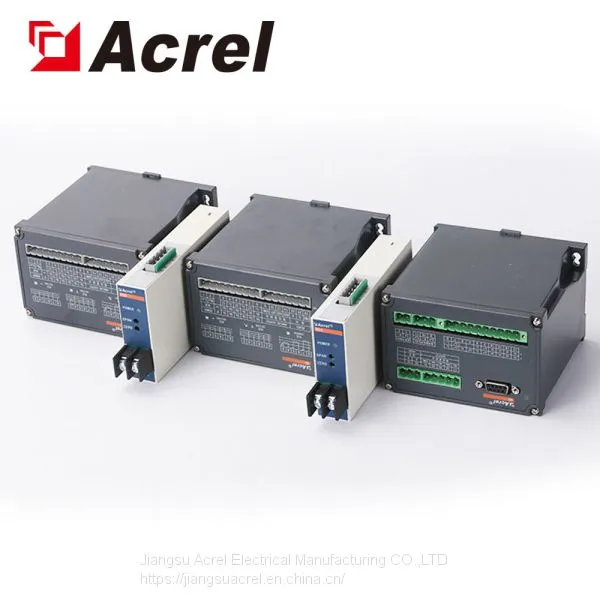

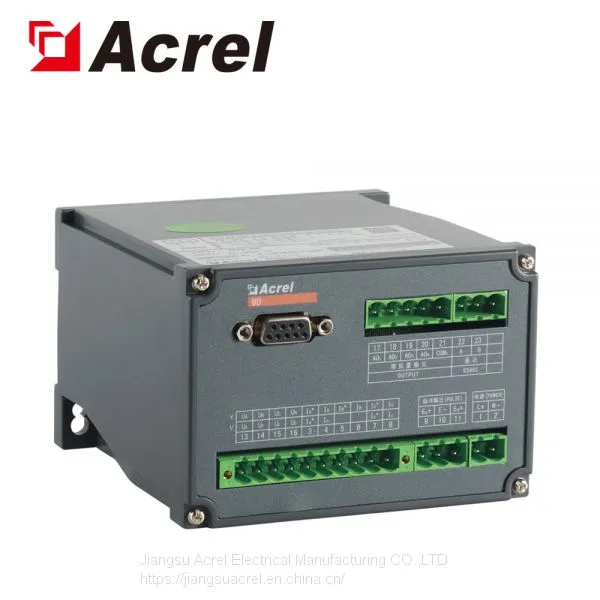

Name: Acrel 3 Phase 4 Wire Power Transducer BD-3P
Brand: Acrel
SKU: 162617123
Availability: InStock

ALL CATEGORIES

Acrel 3 Phase 4 Wire Power Transducer BD-3P

Send Inquiry to This Supplier

Type		Function
BD-AI		Input:AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-AV		Input:AC0-100/300/500V; Output:4-20mA; Power:AC/DC85-270V
BD-DI		Input:DC4-20mA,0-20mA; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-DV		Input:DC0-10V,0-75mV; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-3I3		Input:3 phase AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-3(4)V3		3P3W/3P4W,Input:0-120/300/500V; Output:4-20mA/0-5A; Power:AC/DC85-270V or DC24V
BD-3(4)P		3P3W/3P4W,Input:0-1/5A,0-125/250/450V; Output:4-20mA; Power:AC/DC85-270V,1 channel analog output
BD-3P/Q/I		3P3W input, measuring P,Q; Power:AC/DC85-270V;3 channels analog output
BD-4E		3P3W, measuring I,U,P,Q,F,PF,kWh,Kvarh,etc; 1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU
BD-4EA		3P3W,measuring and displayingmeasuring I,U,P,Q,F,PF,kWh,Kvarh,etc;1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU

Acrel 3 Phase 4 Wire Power Transducer BD-3P

Product Details
