popular 48V100Ah Li-ion battery pack with BMS for solar system
Detailed parameters of Li-ion battery pack 48V100Ah with BMS used for solar system
Battery type | LiFePO4 battery pack | |
Battery pack model | 48V100AH | |
Voltage range | 40V~59V | |
Energy(KWh )20±5℃ | 4.8KWh | |
Capacity(Ah)20±5℃,0.5C | 100Ah | |
Single cell | EV GLP25Ah-94172226 | |

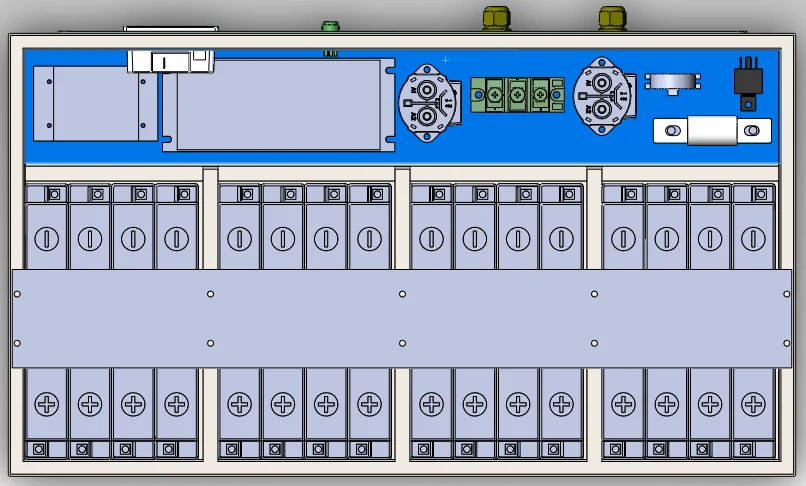

Combination | 4P16S | |
Charging input port type | Same port(YES ) | Plug model and specification |
Discharging output port type | ||
Range of working environment temperature(℃) | Charging temperature: 0~45 | |
Discharging temperature: -20~55 | ||
Relative humidity | 20%~90% | |
Storage temperature | 25~40 | |
Cycle life(DOD100%) 80% of initial capacity | 1800 times | |
Continual charging current | 0.2C | |
Maximum charging current | 0.5C | |
Maximum discharging current | 2C | |
Continual discharging current | 1C | |
Weight(kg) | Appox 100 KG | |

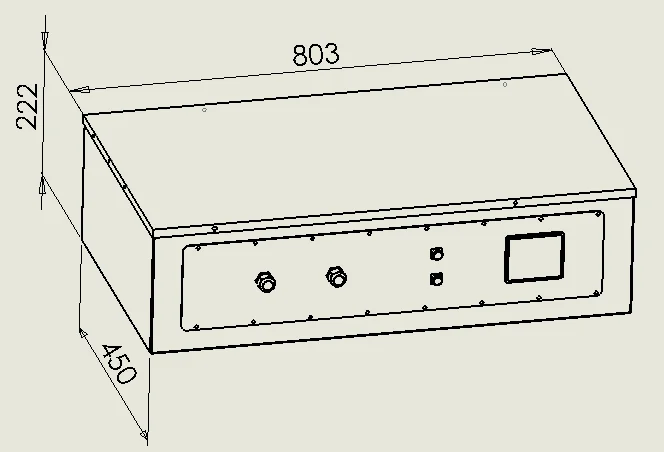

Dimension | ≤ 803*450*222mm (L*W*H) | |

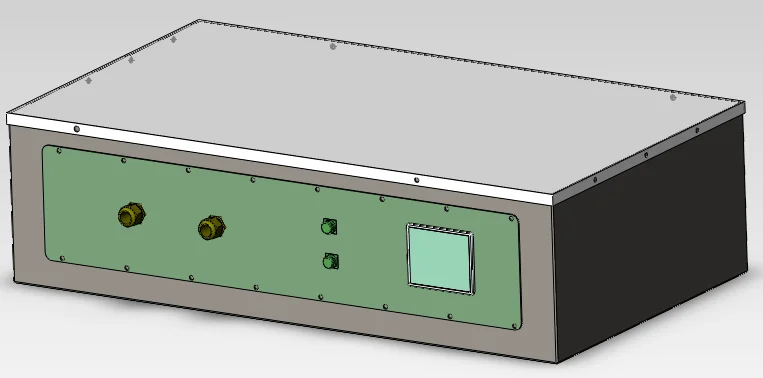

Battery pack appearance
Notice of Li-ion battery pack 48V100Ah with BMS used for solar system
Use the battery charger specifically for that purpose when recharging.
Do not discard the battery in fire or a heater.
Do not dismantle the battery
Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
Do not use or leave the battery near a heat source such as fire or heater.
Please choose LiFePO4 battery charger when charging.
Our partners
Our clients
Factory and equipments show

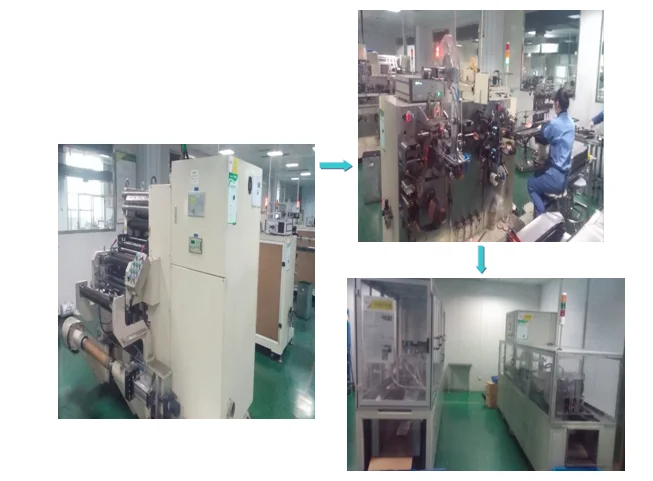

Production line
