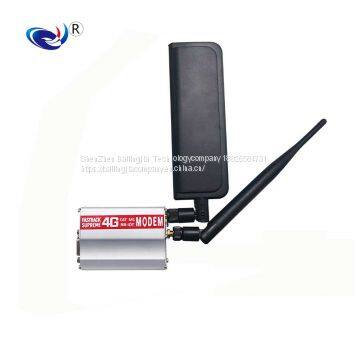

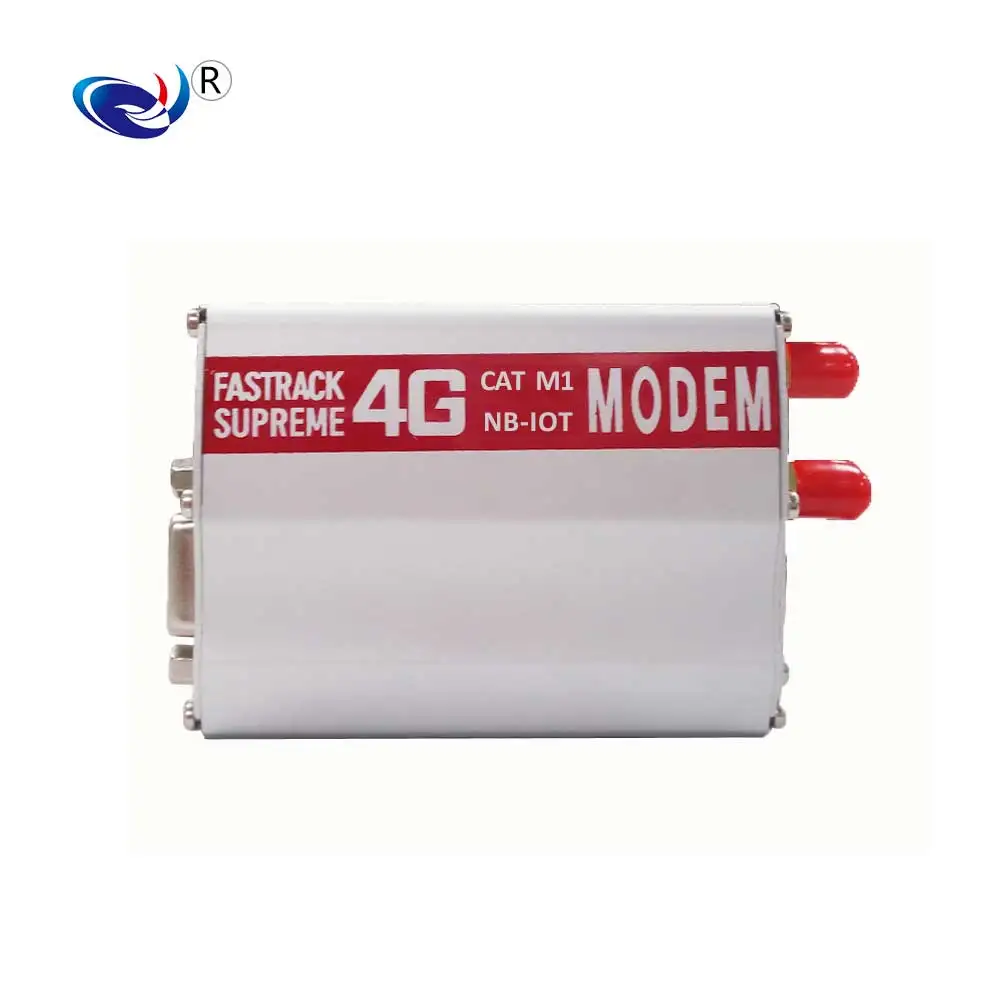

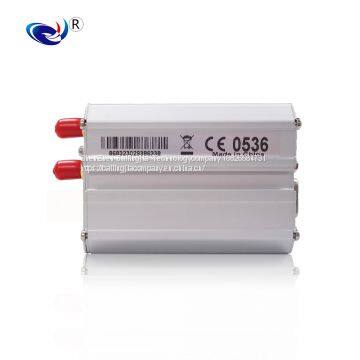

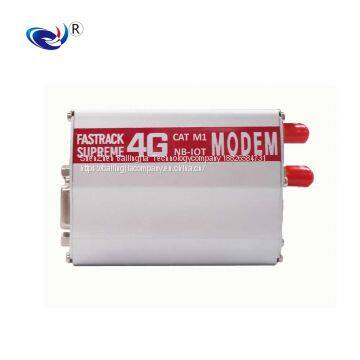

Factory Wholesale Industrial 4G LTE Cat M1 NB-IoT USB RS232 SIM Card Modem

BAILING G6 NB-IOT 4G LTE, featuring the new Cat M1 and NB-IoT 4G technologies. These new technologies are designed for low power 4G connectivity and are specifically aimed at M2M, IoT and metering applications. BAILING was the first company to offer a remote meter reading modem in Australia and we have continued to design our own solutions in Australia. BAILING represents the latest and most modern version of our proven and reliable BAILING modems.

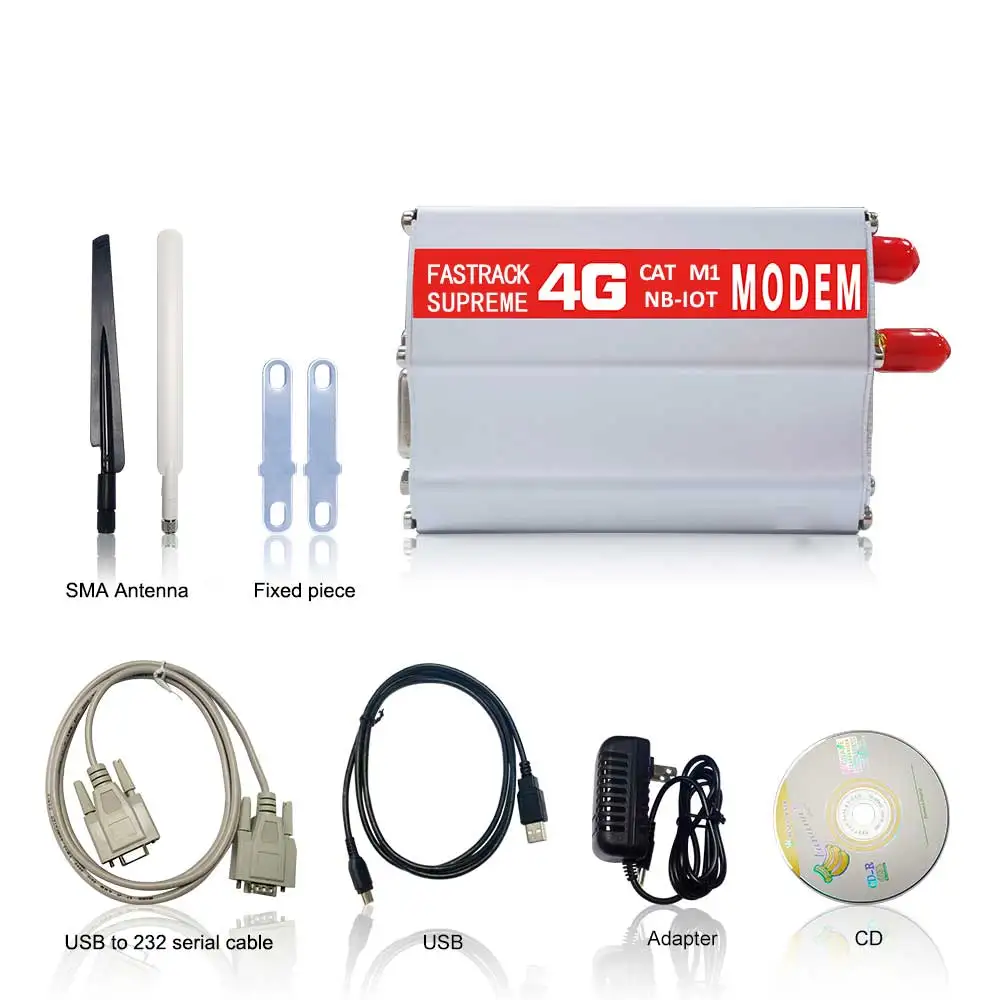

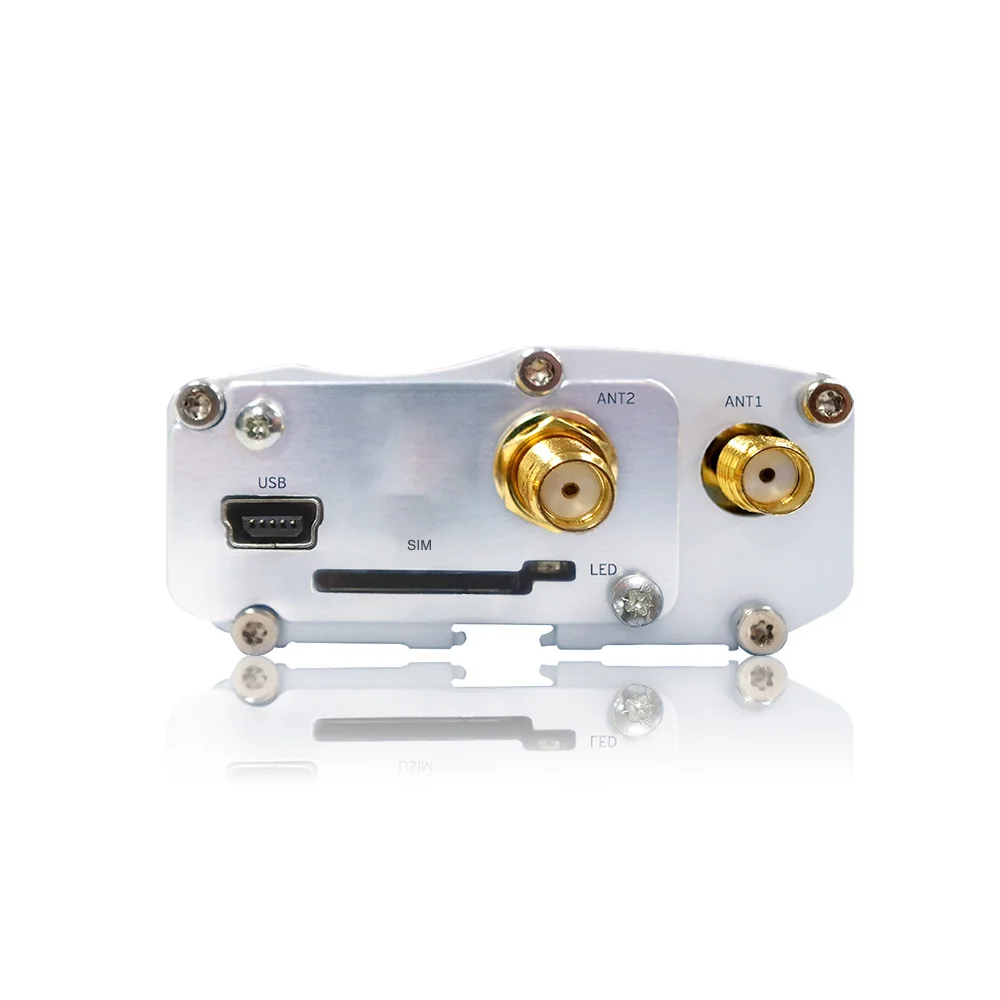

The Bailing is fitted with a USB port and a Serial RS232 Port for connectivity and can be controlled using AT Commands. The BAILING is running BAILING’s TCP/IP Stack for remote connectivity. BAILING is available in two versions supporting different frequency bands, allowing the end user to select the modem that suits their requirements.

BAILING  General Features:-

Support 4G LTE Cat M1 and NB-IoT

Remote AT commands are configurable

Standard 3GPP AT command TS 27.007

Serial interface

Serial RS232 and DC power supply

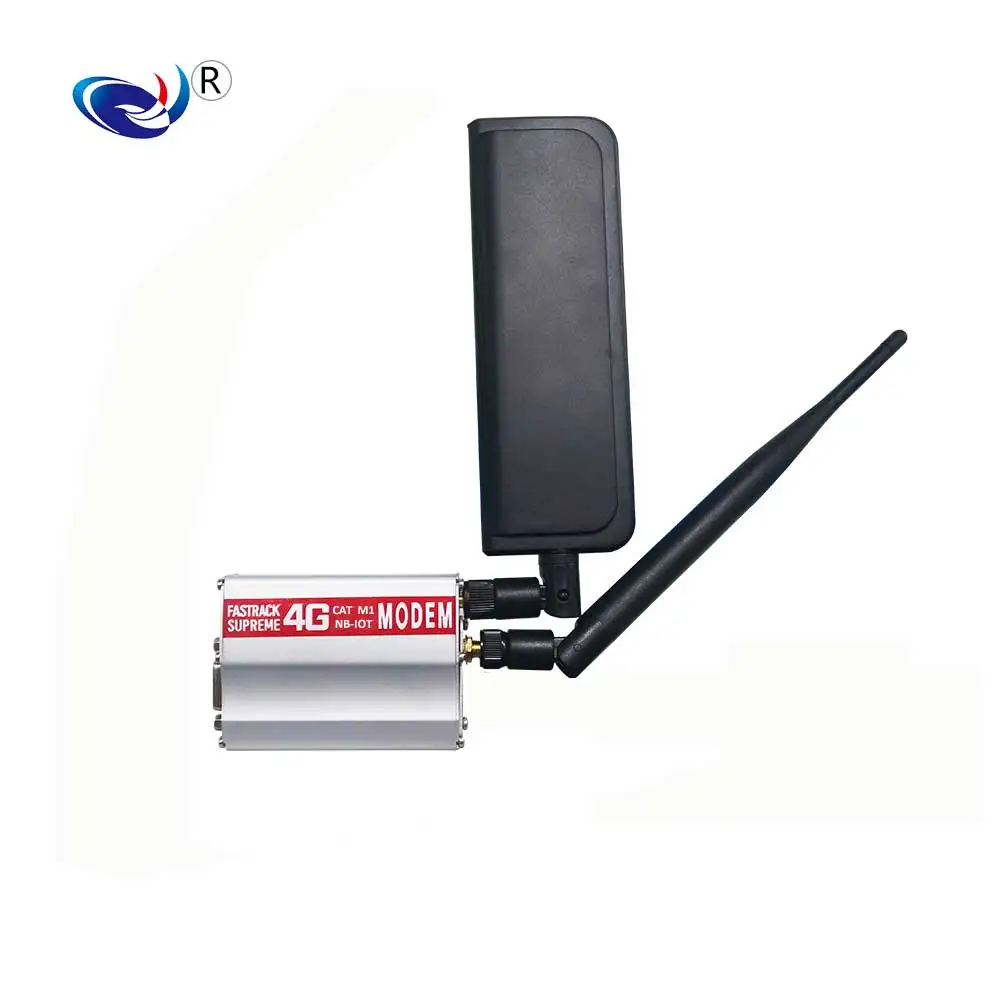

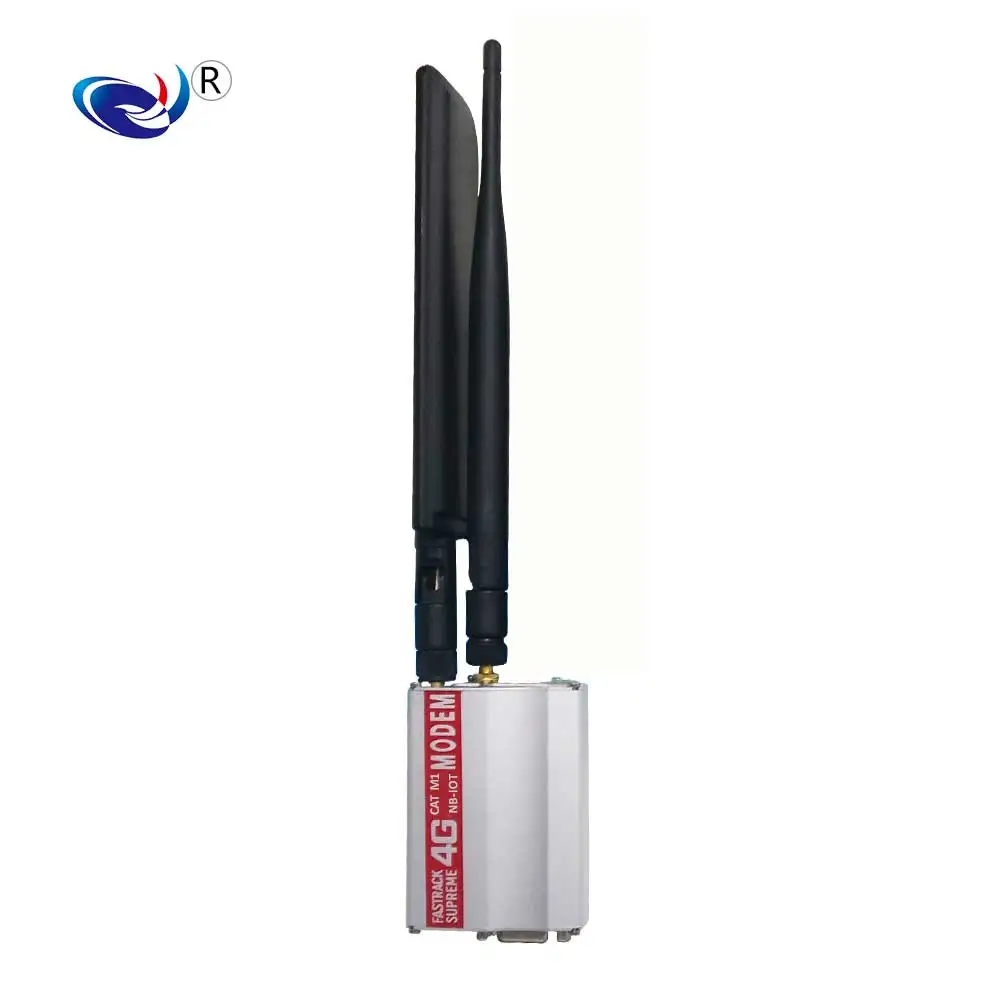

RF connector: 2 x SMA male

Rugged and lightweight aluminum housing

Output power: maximum 23dBm

Wide input voltage range: 5V to 32V

Current consumption (TBC):

Standby: 30mA @ 12V

Average use: 40mA @ 12V

Maximum usage: 70mA @ 12V

Support 3V / 1V8 SIM card

Dimensions: 74mm x 55mm x 24mm

Weight: about 100 grams

Operating temperature: -40C ° to + 85C

RoHS Compliant

Data Features:

SMS mobile Terminate/Originate

Intercel’s smart stack TCP/UDP

FOTA and DOTA functions supported

Frequency Bands:

CatM1 Speed Max. 300 Kbps DL Max. 375 Kbps UL

NB-IoT Speed. Max. 250 Kbps DL Max. 250 Kbps UL

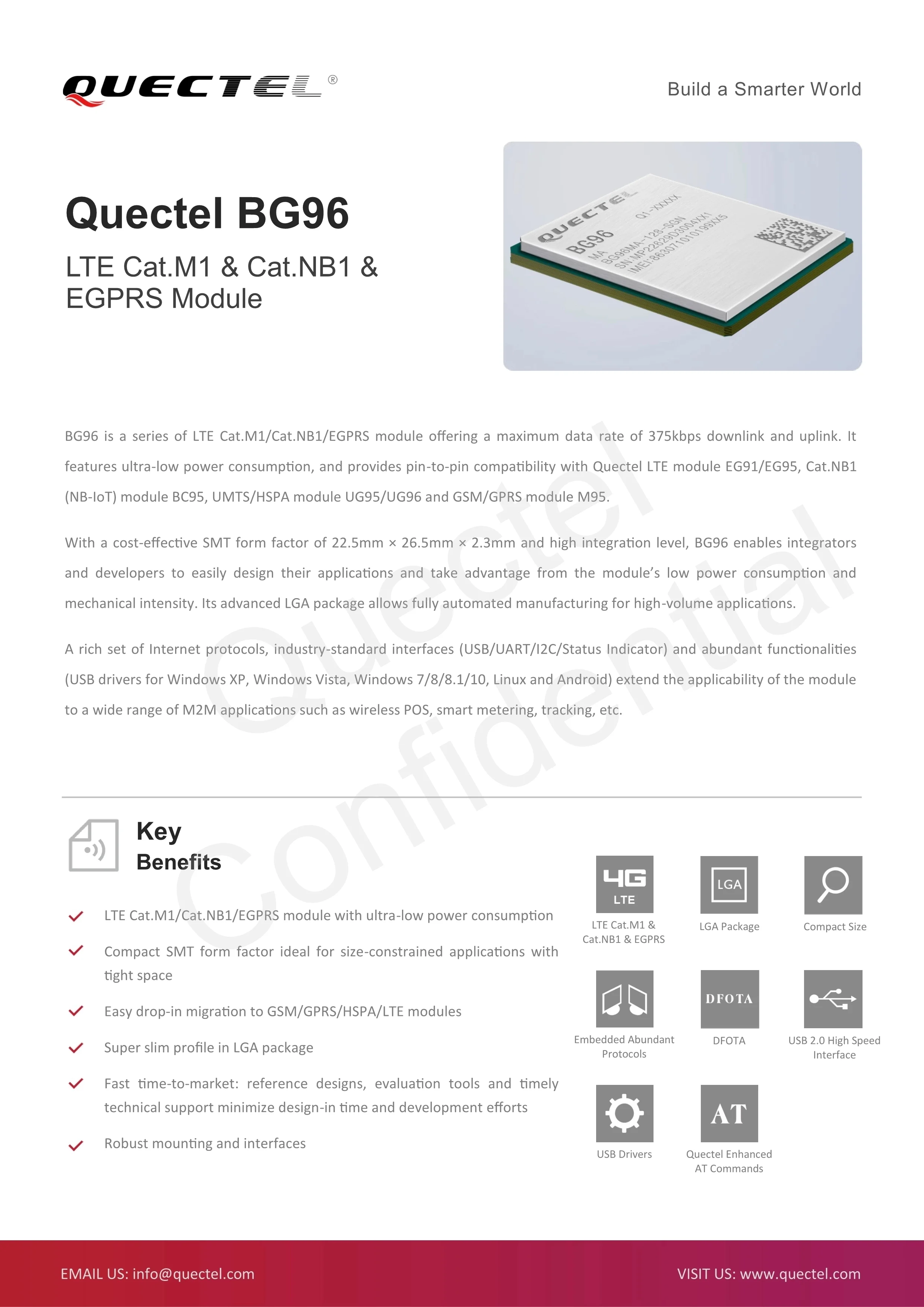

BG96

Cat.M1/Cat.NB1:

LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/

B19/B20/B26/B28

LTE TDD: B39 (For Cat.M1 Only)

EGPRS:

850/900/1800/1900MHz

Applications:-

Water Quality and levels Monitoring

Remote Monitoring Power and Substations

Data Logging

Traffic Signals

Metering

Fleet Management

Monitor Security Systems and Alarms

Weather Station

4G Communication device
