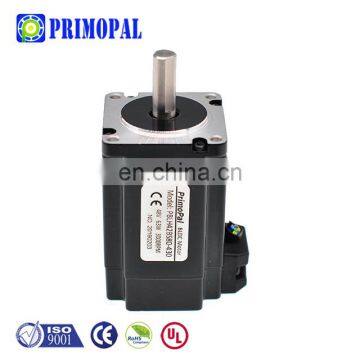

63w Design Drive Pancake Speed Control Electric Long Shaft With Hall Effect Sensor Brushless dc Motor for Drill
US$ 15 - 40
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PBLH42BS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
94w Shaft bl Winding Machine Hollow Shaft High Speed Control Board Design Brushless dc Mower Motor for Electric Lawn MowerUS$ 15 - 40MOQ: 1 Piece -
250W 310V 3000rpm 80mm Power Micro Variable Speed dc Brushless Electr Motor Speed Control With Hall Sensor for GenerateUS$ 40 - 110MOQ: 1 Piece
-
Hybrid Solar Roof Ventil With Brushless 400w 310v 3000rpm Small Torque Mini dc Motor Manufacturer in ChinaUS$ 40 - 110MOQ: 1 Piece
-
Low Speed 600w 310v Electric Power Steering Bldc Motor With Hollow Shaft for Milling Machine Micro Generate and Robot ArmUS$ 40 - 110MOQ: 1 Piece
-
Shanghai Low Price 50w 310v 3000rpm Low Noise 42mm Long Shaft High Speed Electric High Torqu Bldc Motor for Cordless DrillUS$ 15 - 60MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PBLH42BS
Certification
CCC, CE, ROHS, UL, VDE
Torque
0.1~0.3N.m
Construction
Permanent Magnet
Efficiency
IE 3
Continuous Current(A)
0.87~2.61A
Speed(RPM)
3000RPM
Commutation
Brushless
PrimoPal’s PBL series brushless DC motors offer high performance, long life and low maintenance for applications
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.

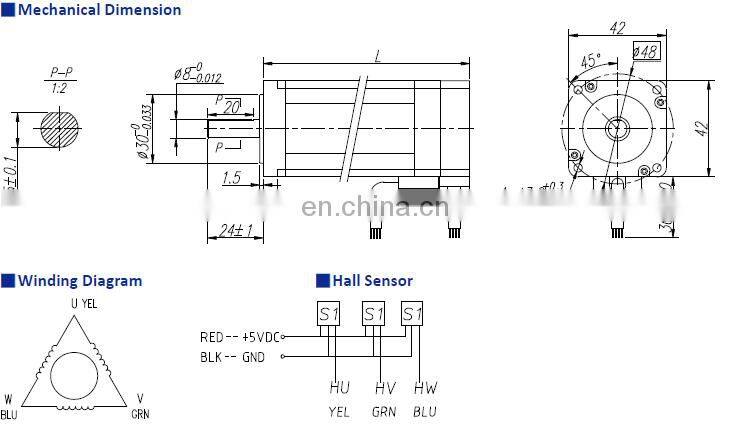

| Winding Connection | Delta |
| Hall Effect Angle | 120° Electric Angle |
| Shaft Run Out | 0.025mm |
| Ambient Temperature | 20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500VDC for one minute |
