Home > Electrical & Electronics > Electric Motor > Stepper Motor > 0.4A Nema 16 Stepper Motor With Controller

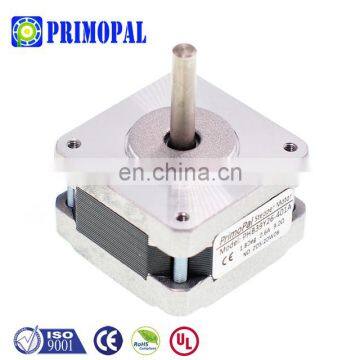

0.4A Nema 16 Stepper Motor With Controller
US$ 4 - 6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHB39Y Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.4A 12Nm Strong Motion Stepper MotorUS$ 4 - 6MOQ: 1 Piece -
12Nm Stepper Motor With Strong Motion for CncUS$ 4 - 6MOQ: 1 Piece
-
High Quality Speed Quiet Micro Accuracy Unipolar Can Stack Cnc Delta 1.8 Degree 24v Nema 11 Stepper MotorUS$ 4 - 6MOQ: 1 Piece
-
NEMA 14 Stepper Motor With ISO/CE Certified and RoHs Compliant for CNC ApplicationUS$ 3 - 5MOQ: 1 Piece
-
High Torqu 2 Phase Round dc Nema 10 Stepper Motor Use in Cnc Kit Camera Robot 3d Print Printer Floor Stepper MotorUS$ 4 - 6MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHB39Y Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom
PHB39Y series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA16 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 16 stepper motors ranges from 20mm to 40mm, and the holding torque could be as high as 24N.cm (33.9oz-in). These high-performance and high-reliability NEMA 16 stepper motors are terminated with four or six flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -10 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
