12v Hybrid Fast Micro Linear Actuator With 45mm Body Length

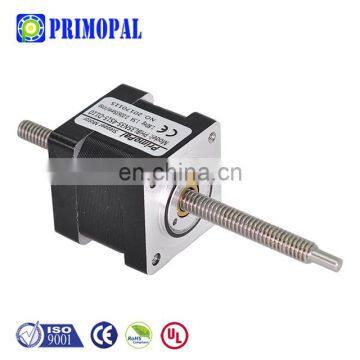

12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-1

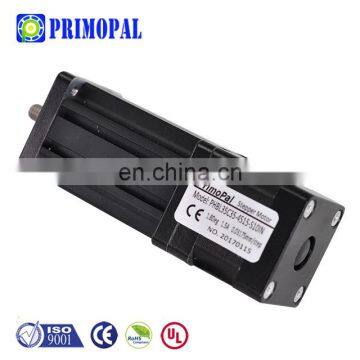

12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-2

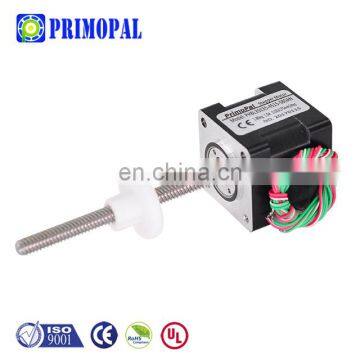

12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-3
12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-4
12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-5
12v Hybrid Fast Micro Linear Actuator With 45mm Body Length photo-6
US$ 15 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHBL35 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name PrimoPal
Place of Origin Shanghai, China
Model Number PHBL35 Series
Type Hybrid
Phase 2
Certification CE, ISO, ROHS, UL
Current / Phase Variable, can be custom

12v hybrid fast micro linear actuator with 45mm body length

PHBL35 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 14 square stepper motor with 1.8°/0.9° step angle (200/400 steps per revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.





12v hybrid fast micro linear actuator with 45mm body length

Temperature Rise80 °C Max.(rated current, 2 phase on)
Ambient Temperature-20 °C ~ +50 °C
Dielectric Strength500 VAC for one minute
Shaft Axial Play0.08 Max. (450 g-load)



ModelVoltageCurrentResistanceInductance

Lead

Wire
Motor Length
 V/ØA/ØΩ/ØmH/ØPininchmm
PHL35(*)35-4S056.60.513.214.041.378035
PHL35(*)35-4S103.31.03.33.641.378035
PHL35(*)35-4S152.21.51.51.641.378035
PHL35(*)47-4S0512.00.524.029.041.850447
PHL35(*)47-4S106.01.06.07.241.850447
PHL35(*)47-4S154.01.52.71.841.850447


Note:   1. (*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.

             2. We also could manufacture the custom stepper motors, according to the customer's requirements.



  Lead Screw Specs12v hybrid fast micro linear actuator with 45mm body length



Force vs. Pulse Rate

12v hybrid fast micro linear actuator with 45mm body length



12v hybrid fast micro linear actuator with 45mm body length

12v hybrid fast micro linear actuator with 45mm body length

12v hybrid fast micro linear actuator with 45mm body length

12v hybrid fast micro linear actuator with 45mm body length12v hybrid fast micro linear actuator with 45mm body length12v hybrid fast micro linear actuator with 45mm body length12v hybrid fast micro linear actuator with 45mm body length12v hybrid fast micro linear actuator with 45mm body length12v hybrid fast micro linear actuator with 45mm body length
