Home > Electrical & Electronics > Electric Motor > Stepper Motor > Non-captive Small Linear Actuator Stepper
US$ 15 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHBL28 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stepper Miniature Motor Linear Actuator for 3D PrinterUS$ 15 - 30MOQ: 1 Piece -
Non-captive and Captive Stepper Motor ActuatorUS$ 15 - 30MOQ: 1 Piece
-
45mm Micro xy Stepper Motor Linear ActuatorUS$ 15 - 30MOQ: 1 Piece
-
NEMA 11 33mm Heavy Duty Linear Stepper MotorUS$ 15 - 30MOQ: 1 Piece
-
Non Captive/captive 57mm NEMA 23 Linear Stepper MotorUS$ 25 - 40MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHBL28 Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom

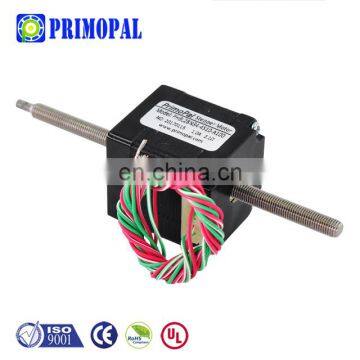

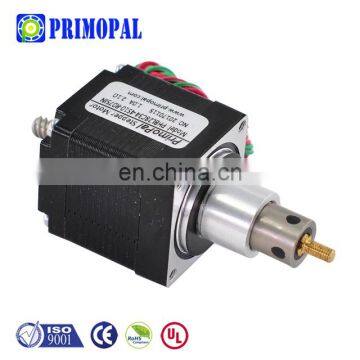

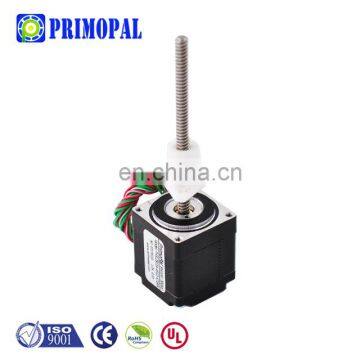

PHBL28 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 11 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Ambient Temperature | -20 °C ~ +50 °C |
| Temperature Rise | 80 °C Max. (rated current, 2 phase on) |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | Class B (Class F also available) |
