Home > Electrical & Electronics > Electric Motor > Stepper Motor > 51mm dc 0.4A Helic 1:369 Planetary Small 8N.cm Metal Sleeve Bearing Micro Nema 16 Stepper Gear Motor With Gearbox for Instrument

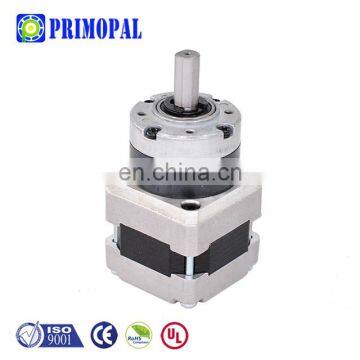

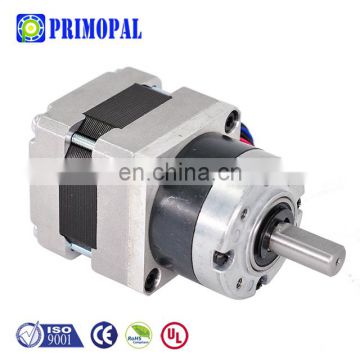

51mm dc 0.4A Helic 1:369 Planetary Small 8N.cm Metal Sleeve Bearing Micro Nema 16 Stepper Gear Motor With Gearbox for Instrument
US$ 15 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHG39Y/PTP36E Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Planetary 1.7 A 40mm Length 40 N.cm NEMA 17 Reducer Power Micro Housing Material Metal Stepper Motor With GearboxUS$ 15 - 35MOQ: 1 Piece -
NEMA 17 0.4A 28 N.cm 40 mm Metal Sleeve Bearings Small Cheap Micro Stepper Motor Gear Box Head Rack With Gearbox and EncodUS$ 15 - 35MOQ: 1 Piece
-
NEMA 17 1.3A 40 N.cm 40mm Length Housing Material Metal Sleeve Bearings Reduction Ratio 4.44 Strong Gear Stepper MotorUS$ 15 - 35MOQ: 1 Piece
-
72.5mm 0.6a Headcheap Power With Nema 16 Stepper Gear Motor for 3d PrinterUS$ 15 - 35MOQ: 1 Piece
-
59mm Cycloid and 100 Planetary Small Nema 17 Stepper Gear Motor With Gearbox for Cnc Control 21N.cm Reducer 3d Printer MachineUS$ 15 - 35MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHG39Y/PTP36E Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom
PrimoPal's PHG series hybrid stepper gearmotor offers a wide range of gear ratios to fulfill your project needs. The planetary gearhead (transmission series) and spur gearbox have been strictly tested to ensure long life and maximum efficiency. They are low-cost solutions and can perfectly meet your needs of motion or automation control. Besides, high precision gearhead, custom motor winding and gearhead specs are also available.
