Home > Products > Brushless DC Motor > HFM004 48V 1500W 1800RPM KEB48300X controller high torqu brushless bldc hall sensor dc motor

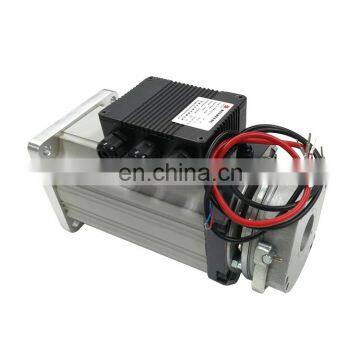

HFM004 48V 1500W 1800RPM KEB48300X controller high torqu brushless bldc hall sensor dc motor
- 1000 Unit / Units per Month
- T/T Credit Card
- 76V 400W 2000RPM 1.91Nm 6.20Amp HFM003 B3 B14 B34 B5 hall sensor specific flange 8poles brushless dc motor
- HFM005 48V 750W 1500RPM bldc hall sensor brushless dc motor with KBS48101X controller
- HFM006 8NM 200RPM 48Vdc 48V 400W 1500RPM BLDC Worm Gear 7.5 brushless dc motor with driver
- Custom long life 3000 w 100 hp 12v 8kw 48v/4kw motion electric car brushless dc motor for equipment
- HFM008 IP54 220Vac 750W 3000RPM bldc hall sensor brushless dc motor with FS50L-0R7-2 controller
- HFM010 220Vac 300W 1500RPM 1.91Nm 1.60Amp high power long controller brushless bldc motor for drive test
Product Details
Brand Name: | HF Motion | Place of Origin: | Zhejiang, China | Model Number: | HFM004 |
Certification: | CCC, CE, ROHS, UL | Torque: | 8.75 | ||
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 4 |
Continuous Current(A): | 3.58A | Speed(RPM): | 1800rpm | ||
Commutation: | Brushless |
Product Description
VIEW MORE PLS CONTACT US >>>
Q:Motor has been running then fails to start,what to do?
A:Likely cause: Fuse or circuit breaker is tripped.
What to do: Replace the fuse or reset the breaker.
Likely cause: Armature is shorted. Motor may make a humming noise and the circuit breaker or fuse will trip.
What to do: Disassemble motor and inspect the armature for a burnt coil. Inspect the commutator for burnt bars. If this condition exists, the motor needs to be replaced.
Likely cause: The brushes may be worn down too far and no longer make contact with the commutator.
What to do: Check the brushes to make sure that they are still making contact with the commutator. Contact manufacturer for brushes.
Likely cause: Controller may be defective.
What to do: Verify voltage is coming out of the controller.
Q: On initial installation, motor fails to start up,what to do?
A: Likely cause: Motor is incorrectly wired
What to do: Verify that the motor is wired correctly.
Likely cause: No output power from controller.
What to do: Measure voltage coming from the controller.
Likely cause: Motor is damaged and the armature is rubbing against the magnets.
What to do: Disassemble motor and see if the armature can be realigned by reassembly. Motor may have to be replaced.
Q: Motor takes too long to accelerate,what to do?
A: Likely cause: Motor controller not properly set.
What to do: Adjust the acceleration trim pot of the controller.
Likely cause: Brushes are worn.
What to do: Verify brush length.
Likely cause: Bearings may be defective.
What to do: Inspect bearings. Noisy or rough bearings should be replaced.
Q: Motor runs in the wrong direction,what to do?
A: Likely cause: Incorrect wiring
What to do: Interchange the two motor leads.
Q: Motor runs OK but has a clicking noise,what to do?
A: Likely cause: Suspect a burr on the commutator.
What to do: Remove burr from commutator using a commutator stone.
