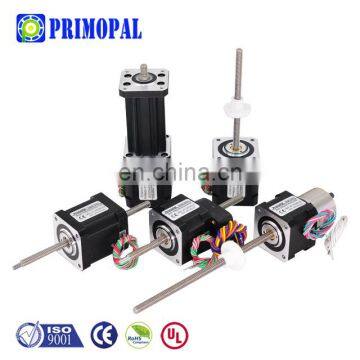

High-precision NEMA 17 External Linear Stepper Motor for Lifting Platform
US$ 15 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHBL42 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-performance NEMA 17 External Linear Stepper Motor for Linear Driving SystemUS$ 15 - 30MOQ: 1 Piece -
1.8 Degree NEMA 8 Mini Stepper Motor for Security System 20mmx28mm, 1.4N.cmUS$ 9 - 10.3MOQ: 2 Pieces
-
0.6a NEMA 8 Micro Stepper Motor for Medical EquipmentUS$ 4 - 6MOQ: 1 Piece
-
High Torque NEMA 8 Small Stepper Motor for CCTV SystemUS$ 4 - 6MOQ: 1 Piece
-
Double Shaft D-cut NEMA 8 Small Stepper Motor 1.8 Degree 20 Flange SizeUS$ 4 - 6MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHBL42 Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom
PHBL42 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 17 square stepper motor with 1.8°/0.9° step angle (200/400 steps per revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Model | Voltage | Current | Resistance | Inductance |
Lead Wire |
Motor Length | |
| V/Ø | A/Ø | Ω/Ø | mH/Ø | Pin | inch | mm | |
| PHL42_35-4S05 | 7.2 | 0.5 | 14.4 | 19.8 | 4 | 1.3780 | 35 |
| PHL42_35-4S10 | 3.6 | 1.0 | 3.6 | 5.0 | 4 | 1.3780 | 35 |
| PHL42_35-4S15 | 2.4 | 1.5 | 1.6 | 2.2 | 4 | 1.3780 | 35 |
| PHL42_49-4S05 | 11.0 | 0.5 | 22.0 | 46.0 | 4 | 1.9291 | 49 |
| PHL42_49-4S12 | 4.5 | 1.2 | 3.8 | 8.0 | 4 | 1.9291 | 49 |
| PHL42_49-4S25 | 2.2 | 2.5 | 0.87 | 1.8 | 4 | 1.9291 | 49 |
Note: 1. (*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
