High Torque 1.8 Degree Nema 23 Linear Stepper Motor for Measuring Tool
US$ 25 - 40
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHBL57 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Manufacturer IP65/IP54 NEMA 24 Waterproof Stepper Motor With Low PriceUS$ 20 - 35MOQ: 1 Piece -
High-performance IP65/IP54 NEMA 24 Stepper Motor for Medical EquipmentUS$ 20 - 35MOQ: 1 Piece
-
IP65/IP54 NEMA 24 Waterproof Stepper Motor for Waterjet Milling MachineUS$ 20 - 35MOQ: 1 Piece
-
NEMA 17 Non-captive Linear Stepper Motor for Analysis Equipment,Low CostUS$ 15 - 30MOQ: 1 Piece
-
NEMA 17 Captive Linear Stepper Motor for 3D Printer,Hot Sale!US$ 15 - 30MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHBL57 Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom

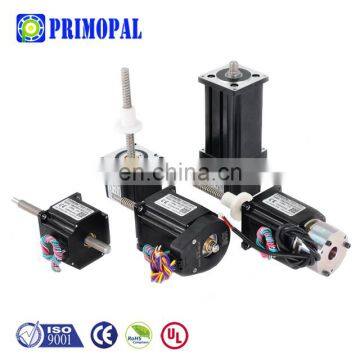

PHBL57 series hybrid linear stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 23 square stepper motor with 1.8°/0.9° step angle (200/400 steps per revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet, which are an excellent solution for positioning applications that require rapid acceleration and high-speed moves with low mass payloads. Three different movement types are available for various applications, which are external, non-captive and captive linear version. Besides, custom motor winding, lead screw and nut specs are available.
| Model | Voltage | Current | Resistance | Inductance | Lead Wire |
Motor Length | |
| V/Ø | A/Ø | Ω/Ø | mH/Ø | Pin | inch | mm | |
| PHBL57(*)47-4S10 | 6.4 | 1.0 | 6.4 | 16.4 | 4 | 1.8504 | 47 |
| PHBL57(*)47-4S20 | 3.2 | 2.0 | 1.6 | 4.1 | 4 | 1.8504 | 47 |
| PHBL57(*)47-4S30 | 2.1 | 3.0 | 0.7 | 1.7 | 4 | 1.8504 | 47 |
| PHBL57(*)66-4S10 | 10.8 | 1.0 | 10.8 | 32.0 | 4 | 2.5984 | 66 |
| PHBL57(*)66-4S25 | 4.2 | 2.5 | 1.7 | 5.2 | 4 | 2.5984 | 66 |
| PHBL57(*)66-4S40 | 2.4 | 4.0 | 0.65 | 2.0 | 4 | 2.5984 | 66 |
Note: 1. (*) Non-captive type (N), External type (E) or Captive type (C) is available, and please specify it with (*) when ordering.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
2. We also could manufacture the custom stepper motors, according to the customer's requirements.
