Help Center1.8degree 48V 2 Phase Nema 42 5 Axi Cnc Precision Instrument China Cnc Kit Silent Square Stepper Motor for Cctv Camera
Related Products
-
3 Wire NEMA 34 Stepper Motor for Industrial PrinterUS$ 12 - 25MOQ: 1 Piece -
3 Phase NEMA 34 Stepper Motor for Automatic Welding MachineUS$ 12 - 25MOQ: 1 Piece
-
300 Steps per Revolution NEMA 24 Stepper Motor Hot Sale!US$ 4 - 10MOQ: 1 Piece
-
Bipolar Nema 42 Stepper Motor With RoHS CertificationUS$ 30 - 60MOQ: 1 Piece
-
4.6A 3 Phase NEMA 24 Stepper Motor for Monitoring EquipmentUS$ 4 - 10MOQ: 1 Piece

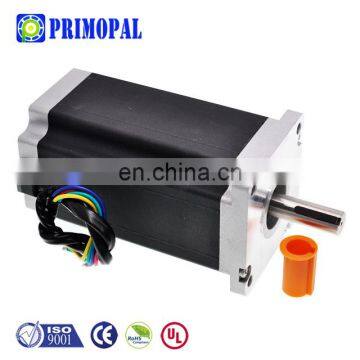

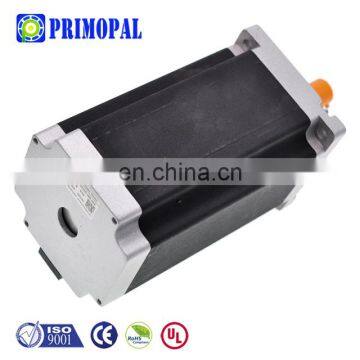

PHB110S series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 42 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 42 stepper motors ranges from 100mm to 200mm, and the holding torque could be as high as 2,900N.cm (4,100oz-in). These high-performance and high-reliability NEMA 42 stepper motors are terminated with four, six or eight flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -10 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 1800 VAC,1s, 5mA |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
