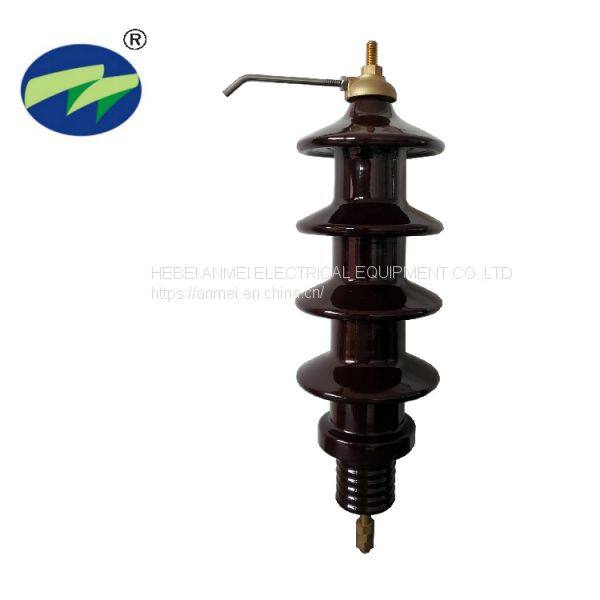

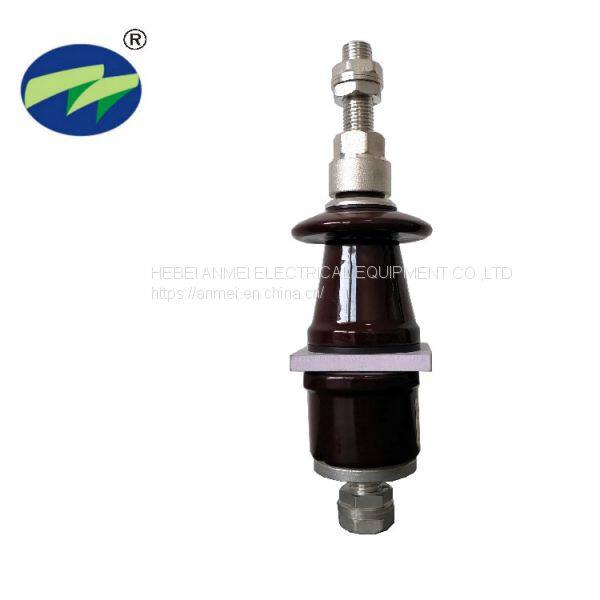

DIN Standard 1KV 3KV 12KV 36KV 24KV 52KV Insulator for Distribution Transformer Bushing High Low Voltage Insulator photo-1

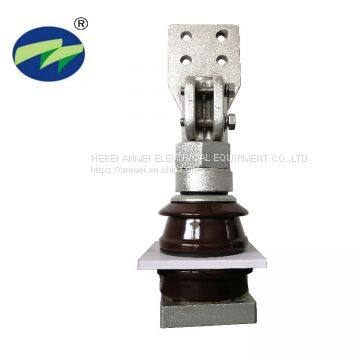

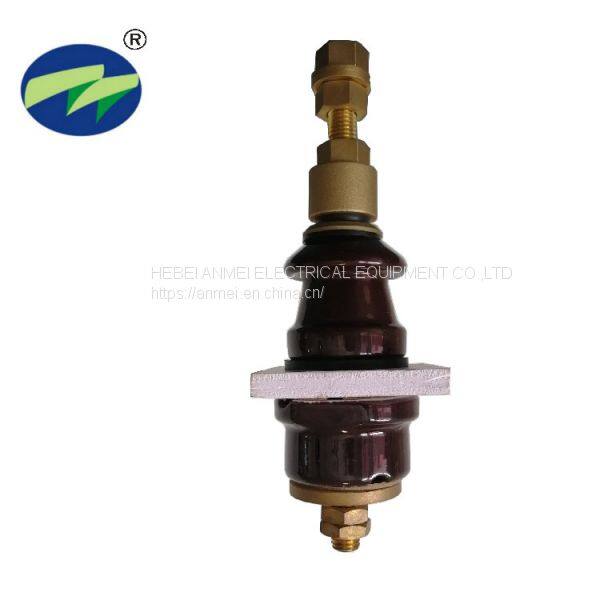

DIN Standard 1KV 3KV 12KV 36KV 24KV 52KV Insulator for Distribution Transformer Bushing High Low Voltage Insulator photo-2

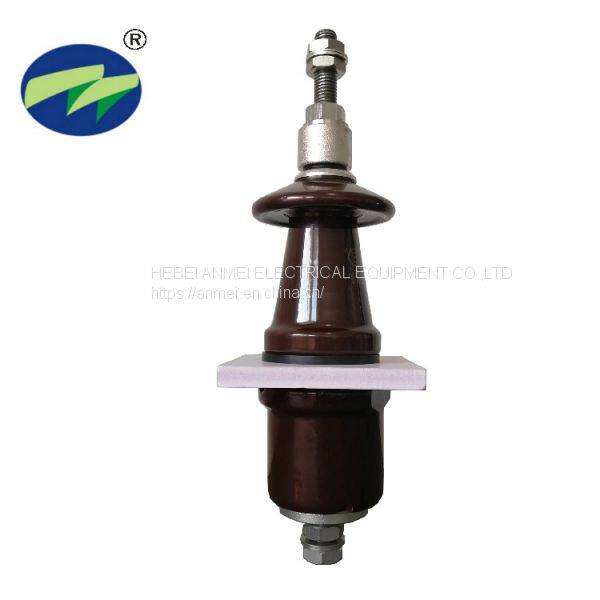

DIN Standard 1KV 3KV 12KV 36KV 24KV 52KV Insulator for Distribution Transformer Bushing High Low Voltage Insulator photo-3

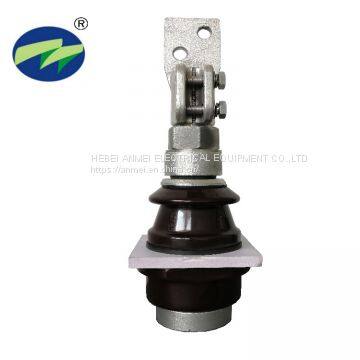

DIN Standard 1KV 3KV 12KV 36KV 24KV 52KV Insulator for Distribution Transformer Bushing High Low Voltage Insulator photo-4

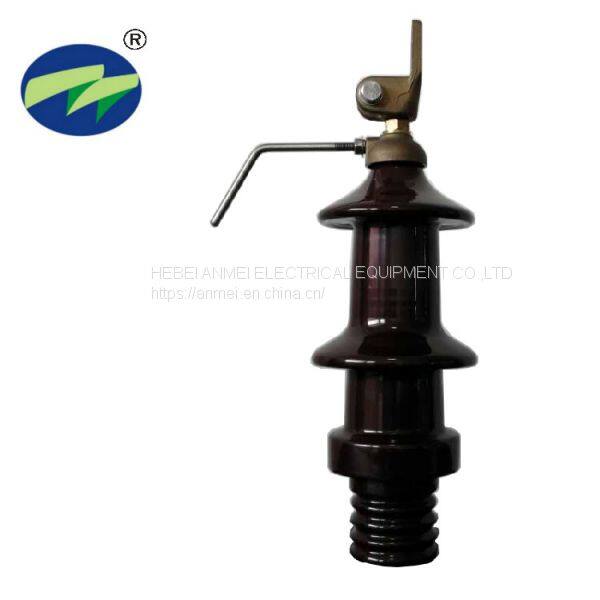

DIN Standard 1KV 3KV 12KV 36KV 24KV 52KV Insulator for Distribution Transformer Bushing High Low Voltage Insulator photo-5
US$ 5 - 20 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
ANMEI
Place of Origin:
China
Model Number:
DIN-3/1000
Contact Supplier Request Quote Chat Now
Hebei Anmei Electrical Equipment Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI NINGBO
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ANMEI
Place of Origin China
Model Number DIN-3/1000
Material Porcelain
Type Insulator
Application Low Voltage
Rated Voltage 1KV~25KV
DIN(1~3kV/250~630A)

Sequence Number
Code
Model		 (Dimensions)
Opening
arcing distance
Creep distance
Shield
Weight
(kg)
H h2 h3 Md d1 d2 d3 d0 h1
1 AM.DAA.001 DIN-1/250 205 62.5 28.5 M12×1.75 50 60 50 28 49 55 1 1
2 AM.DAD.001 DIN-1/630 260 78 43 M20×2.5 70 85 70 45 59 70 1 2.4
3 AM.DBA.001 DIN-3/250 272 87.5 28.5 M12×1.75 75 70 60 39 89 120 1 1.5
4 AM.DBD.001 DIN-3/630 318 103 43 M20×2.5 91 85 70 45 89 120 1 2.9
DIN(1~3kV/1000~4500A)

Sequence Number
Code
Model		 (Dimensions)
Opening
arcing distance
Creep distance
Shield
Weight
(kg)
H h2 h3 h4 Md d1 d2 d3 d4 B1×B2 b1×b2 t S S1 d0 h1
1 AM.DAF.001 DIN-1/1000 322 58 17 6~10 M30×2 90 110 90 14 60×60 26×26 10 -- 50 56 59 75 1 5.5
2 AM.DAJ.001 DIN-1/2000 404 63 22 8~16 M42×3 104 125 104 14 100×100 50×40 15 100 60 70 59 70 1 12
3 AM.DAL.001 DIN-1/3150 434 68 27 8~16 M48×3 125 150 125 14 120×120 60×40 15 110 60 90 59 75 1 16.5
4 AM.DBF.001 DIN-3/1000 374 78 17 6~10 M30×2 110 110 90 14 60×60 26×26 10 -- 50 56 89 120 1 6.5
5 AM.DBJ.001 DIN-3/2000 454 83 22 8~16 M42×3 125 125 104 14 100×100 50×40 15 100 60 70 89 120 1 13.5
6 AM.DBL.001 DIN-3/3150 487 88 27 8~16 M48×3 143 150 125 14 120×120 60×40 15 110 60 90 92 120 1 18.7
7 AM.DBN.001 DIN-3/4500 602.5 101 30 10~20 M55×3 170 160 -- 18 150×150 70×70 20 160 100 119 100 125 1 33.5
DIN(12~36kV/250~630A )

Sequence Number
Code
Model		 (Dimensions)
Opening
arcing distance
Creep distance
Shield
Weight
(kg)
H h2 h3 Md d1 d2 d3 d4 E C d0 h1
1 AM.DDA.002 DIN-12/250 367 250 65 M12×1.75 140 12 74 51 146 70 78 174 300 2 5
2 AM.DDD.002 DIN-12/630 400 246 65 M20×2.5 150 20 88 60 174 70 92 174 310 2 7.1
3 AM.DFA.002 DIN-24/250 457 340 80 M12×1.75 145 12 74 51 146 100 78 249 440 3 6.8
4 AM.DFD.002 DIN-24/630 490 336 80 M20×2.5 160 20 88 60 174 100 92 249 460 3 9.3
5 AM.DGA.002 DIN-36/250 557 440 80 M12×1.75 155 12 74 51 146 200 78 349 610 4 7.8
6 AM.DGD.002 DIN-36/630 615 461 100 M20×2.5 180 20 88 60 174 200 92 354 670 4 12
DIN(12~36kV/250~630A )

Sequence Number
Code
Model		 (Dimensions)
Opening
arcing distance
Creep distance
Shield
Weight
(kg)
H h2 h3 Md d1 d3 d4 E C d0 h1
1 AM.DDA.001 DIN-12/250 427 125 60 M12×1.75 140 74 51 146 70 78 174 300 2 5.3
2 AM.DDD.001 DIN-12/630 475 140 75 M20×2.5 150 88 60 174 70 92 174 310 2 8
3 AM.DFA.001 DIN-24/250 517 140 60 M12×1.75 145 74 51 146 100 78 249 440 3 7.2
4 AM.DFD.001 DIN-24/630 565 155 75 M20×2.5 160 88 60 174 100 92 249 460 3 10.4
5 AM.DGA.001 DIN-36/250 617 140 60 M12×1.75 155 74 51 146 200 78 349 610 4 8.3
6 AM.DGD.001 DIN-36/630 690 175 75 M20×2.5 180 88 60 174 200 92 354 670 4 13.5
DIN(12~52kV/1000~3150A)

Sequence Number
Code
Model		 (Dimensions)
Opening
arcing distance
Creep distance
Shield
Weight
(kg)
H h2 h3 d4 t Md d1 d3 E C d0 h1
1 AM.DDF.001 DIN-12/1000 637 175 85 100 10 M30×2 170 108 225 85 115 166 340 2 18
2 AM.DDJ.001 DIN-12/2000 737 205 115 120 15 M42×3 170 131 235 85 135 167 350 2 23
3 AM.DDL.001 DIN-12/3150 772 215 125 120 15 M48×3 170 131 235 85 135 167 350 2 29
4 AM.DFF.001 DIN-24/1000 722 185 85 100 10 M30×2 185 108 225 155 115 241 500 3 18
5 AM.DFJ.001 DIN-24/2000 822 215 115 120 15 M42×3 210 131 235 155 135 242 500 3 29
6 AM.DFL.001 DIN-24/3150 857 225 125 120 15 M48×3 210 131 235 155 135 242 500 3 33
7 AM.DGF.001 DIN-36/1000 852 210 85 100 10 M30×2 175 108 225 220 115 346 640 4 22
8 AM.DGJ.001 DIN-36/2000 952 240 115 120 15 M42×3 230 131 235 220 135 347 750 4 35
9 AM.DGL.001 DIN-36/3150 987 250 125 120 15 M48×3 230 131 235 220 135 347 750 4 40
10 AM.DJF.001 DIN-52/1000 1012 280 100 120 10 M30×2 250 131 -- -- 135 432 950 6 36
11 AM.DJJ.001 DIN-52/2000 1112 310 130 120 15 M42×3 250 131 -- -- 135 432 950 6 45
12 AM.DJL.001 DIN-52/3150 1147 320 140 120 15 M48×3 250 131 -- -- 135 432 950 6 50
