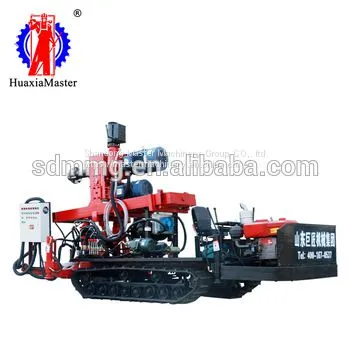

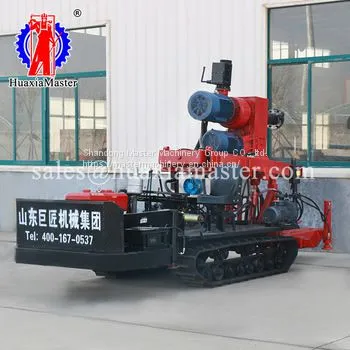

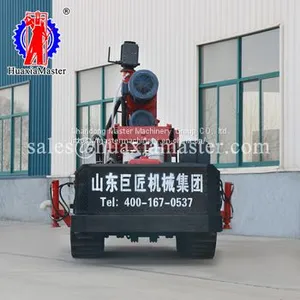

JZF-D series positive and reverse circulation crawler water well drilling rig
1.Brief introduction of JZF-D series positive and reverse circulation crawler water well drilling rig
JZF-D positive and reverse circulation water well drilling rig is a crawler type drilling rig that integrates positive circulation and reverse circulation drilling functions. The positive circulation is mainly used for drilling sandy soil, and the reverse circulation is mainly used for slime or pebble. This drilling rig can easily handle the drilling of soil, sand, slime, and pebble layers. It has been widely used in drilling wells, farm irrigation wells, and engineering pile holes.
2.Features of JZF-D series positive and reverse circulation crawler water well drilling rig
· The steel wire rubber track chassis is adopted to reduce the walking noise of the vehicle and it will not hurt the road when walking on urban roads.
· The crawler chassis is equipped with hydraulic outriggers to facilitate the leveling of the rig.
· The traveling chassis is equipped with an electric start diesel engine, which reduces the labor intensity of the operator, especially in cold seasons.
· There is plenty of driving space on the track chassis for more comfortable operation.
· The layout of the operating handle and power distribution cabinet is compact and reasonable for easy operation.
· By operating the valve, the lifting and retracting of the rig can be easily controlled, which saves time and effort, and is safe and reliable.
· High and low transmission configuration to meet different requirements of formation of the difference in rotational speed.
3.Technical parameters of JZF-D series positive and negative circulation crawler water well drilling rig
Drilling diameter |
mm |
300-1000（reverse circulation） |
Drilling depth |
m |
40-80（reverse circulation） |
Drilling diameter |
mm |
200-850（positive cycle） |
Drilling depth |
m |
50-120（positive cycle） |
Drill rod specifications |
mm |
φ140*2000 |
Rotary main motor |
kw |
7.5 |
Reverse circulation pump motor |
kw |
15 |
Vacuum pump |
kw |
4 |
Hydraulic oil pump |
kw |
4 |
Track chassis |
hp |
25 |
Rig weight |
T |
3.2 |
Transport size |
mm |
4900*2200*2450 |
Note: The rig accepts customization. The above parameters will be changed.
Shandong Master Machinery Group CO.,LTD. specializes in supplying manual drilling rigs, two-phase electric drilling rigs, three-phase electric drilling rigs, gasoline drilling rigs, diesel drilling rigs, hydraulic water well drilling rigs, pneumatic drilling rigs, positive and negative circulation drilling rigs ,Calls are welcome to discuss business!
