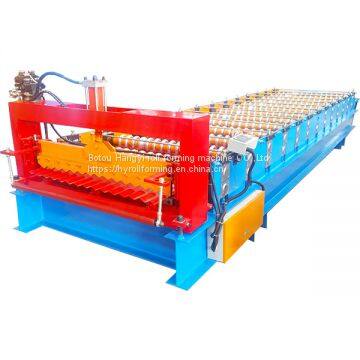

HY Factory Prices Wall Panel Metal Roofing Corrugated Tile Roll Forming Machine For Sale

FOB Price

USD $8000 - $10000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Tianjin
Payment Terms:T/T L/C Other Cash

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Model Number:

988

After-sales Service Provided:

Engineers available to service machinery overseas

Product Description

Working flow:

Decoiler→Feeding material into machine→Forming →Measure length→ Hydraulic cutting→ Finished Products

Parameter

Raw material
material	colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet	0.2-0.8 mm
material expand width	988mm
Efficiency width	1200mm
Machine details
roller material	high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	high grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	70mm or as your requirement
main frame	350 H steel
forming steps	16 stations
productivity	25m/min
hydraulic station power	3.7 KW
hydraulic pressure	10-12MPa
appearance size	6500mm1200mm1500mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirement
Cut Mode	Hydraulic forming after cutting off
Electronic control system	PLC, Touch Screen, Encoding counter

Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
