Product Description

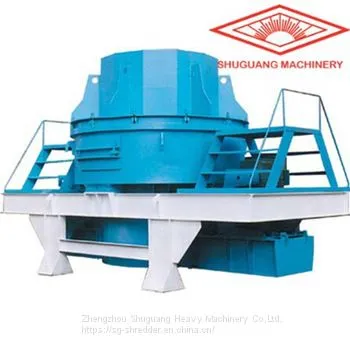

| Product Name | Heay-duty vertical shaft sand making machine | |||
| Feeding Size | <220mm | |||
| Production Capacity | 20-200t/h | |||
| Applicable Materials | Cobblestone, construction waste, river pebble, quartz sand, granite, basalt, iron ore, limestone, quartzite, etc. | |||
| Features | Large crushing ratio, long life, low price, easy maintenance | |||
Sand making machine is a new product optimized by Shuguang Company in combination with modern fine crushing technology,which has good performance and is used to crush various medium-hard ore and can be widely used in mining, metallurgy, refractory, cement, coal, glass, ceramic , power and other industries. The heavy-duty vertical shaft sand making machine has a relatively large feed ratio, a large crushing ratio, and an adjustable output particle size. It is not affected by the wear of the plate hammer and the lining plate,and has no screen bar setting which not be blocked, etc.
Advantages
1. Heavy-duty vertical shaft crusher has a large crushing ratio, no sieve bar setting, and does not block materials with high moisture content and large mud content.
2. Bearings are arranged horizontally and have a long life, which can crush materials with high temperature (such as cement clinker).
3. The rotor structure of this machine is unique. When crushing materials, the rotor body is hardly worn. And the replacement of wearing parts is quick and easy.
4. The wearing parts use high hardness, high toughness, multiple alloy wear-resistant materials, and the life is increased by 2-3 times.
5. The speed of the machine is adjustable, and the running speed can be controlled according to the size and hardness of different materials to achieve the desired granularity level.
6. Relatively low cost compared to other sand making equipment.
Technical Data
| Type | Rotation Speed(r/min) | Motor Power(kw) | Weight(t) | Feed Size(mm) | |
| Sofe Material | Hard Material | ||||
| VSI7611 | 1700-1880 | 110 | 11.8 | <35 | <30 |
| VSI8518 | 1520-1690 | 180 | 14.5 | <40 | <35 |
| VSI9526 | 1360-1510 | 264 | 17.8 | <45 | <40 |
| VSI1140 | 1180-1310 | 400 | 25.6 | <50 | <45 |
| VSI1145 | 1100-1310 | 440 | 28.6 | <50 | <45 |
