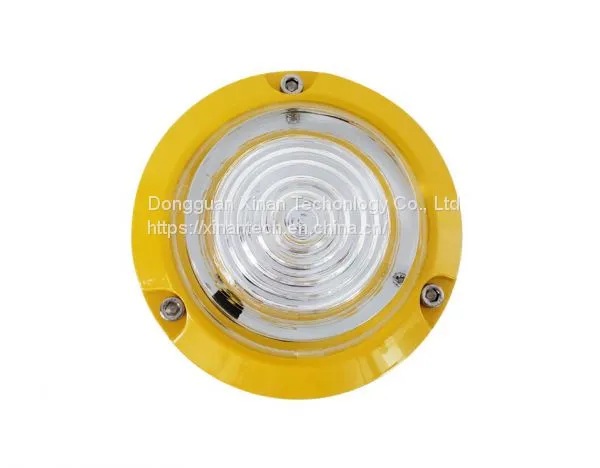

Help CenterWhite Color Heliport Approach LED Light
Related Products
-
Heliport Beacon Led LightUS$ 579 - 999MOQ: 2 Pieces -
New!Heliport Flood Light With Perimetet LightUS$ 599 - 799MOQ: 2 Pieces
-
Helilport Runway Center Line Led LightUS$ 299 - 399MOQ: 2 Pieces
-
Helideck Circle & H LightingUS$ 599 - 799MOQ: 2 Pieces
-
Easy Carrying Lighting for Airport / HeliportUS$ 59 - 99MOQ: 2 Pieces
Description
GS-HP/T Heliport Approach Light adopts LED light source technology, service life can be above 10 years.
Lens adopts tempered glass, it can show the location of airport running way ‘s edge.
it can send out omnidirectional blue light signal at low visibility daytime and night, which can show the taxiway’s direction and location.
Name |
Parameter |
Model |
GS-HP/T |
Power voltage |
Optional voltage:AC220V, AC120V, DC24V, 6.6A |
Power Supply Frequency |
50HZ～60HZ |
Power Consumption |
≤7W |
Working mode |
Steady Burning |
Intensity |
≥300cd |
Service Life of the Light Source |
≥20years |
Optional Emitting Light Colors |
BLUE |

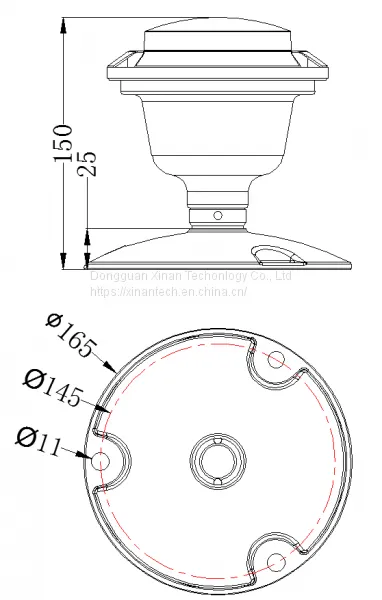

Overall Size(mm) |
165x 165 x 150(mm) |
Installation size |
￠145mm x M10 (3 holes) |
IP Protection |
IP68 |
Ambient Temperature |
-55℃～85℃ |
Net Weight |
1.6KG |
About us
Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). we are proud to have served customers from all across the world.
Contact person
Ms kary
qq:926365176
