Description

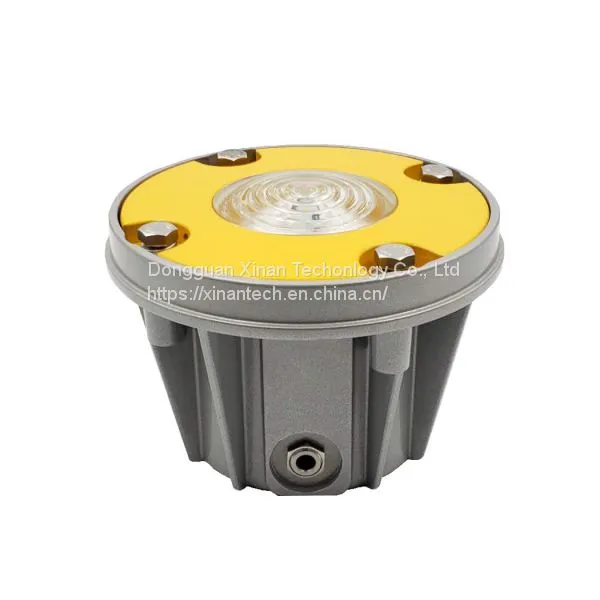

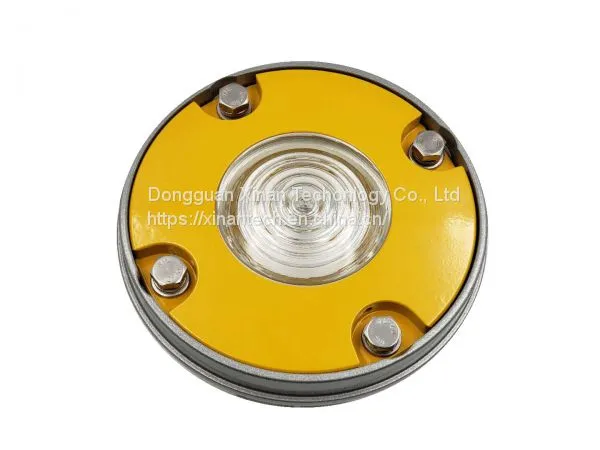

GS-HP/A Aiming Point Light shell adopts aluminum gravity casting, it good at water proof and heat dissipation.
Its inner adopt LED light resource and cooperate with advanced optical glass design,emitting angle meet FAA standard.
The product can send out white steady burning light signal at night or during low visibility weather.

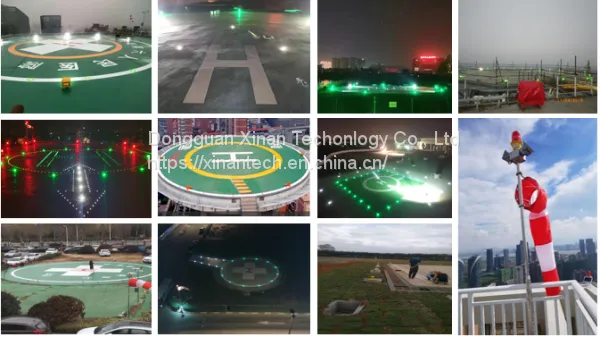

Usually, at least six lights can provide an accurate landing and lift -off position for helicopters.
Name |
Parameter |
Name |
Parameter |
Type |
GS-LS/B |
Light Source Life |
＞100000 hours |
Power Provider |
Mono-crystalline silicon solar panel |
Optional Emitting Light Colors |
Red, Amber Yellow, Green, Blue, White |
Battery Capacity |
12V14AH |
Battery Type |
Special battery |
Solar panel power |
6W x 4pcs |
Solar panel voltage |
16.5V |
Power Consumption |
≤2W |
Vertical Divergence |
＞8° |
Visual Range |
6~12 NM |
Horizontal Out-put |
360° |
Light Source |
LED |

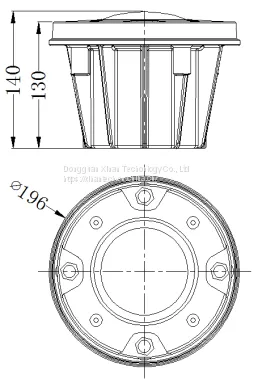

Overall Size(mm) |
522×522×472 mm |
Working temperature |
-40℃~70℃ |
Installation Size(mm) |
Pitch circle 160 mm distributed 4M12 holes |
Storage temperature |
-40℃～70℃ |
Working mode optional |
350 lights Characteristics |
Sun Switch Illumination Threshold |
300LUX±100LUX |
Wind-speed Ability |
80m/s |
Continuous Burning Time in rainy days |
＞20 days (12 hours a day) |
IP Protection |
IP65 |
Weight |
8.5kg |
Remote monitoring |
Optional |
