Ship Inflatable Docking Floating Rubber Fender
US$ 3000 - 3250
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
FLORESCENCE
Place of Origin:
China
Model Number:
FL-SJY5759
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
2 days
Related Products
-
Marine Ship Pneumatic Floating Rubber FenderUS$ 3000 - 3250MOQ: 1 Piece -
Ship Inflatable Floating Pneumatic FenderUS$ 3000 - 3250MOQ: 1 Piece
-
STS Floating Pneumatic Rubber FenderUS$ 3000 - 3250MOQ: 1 Piece
-
Marine Mooring Floating Pneumatic Rubber Dock FenderUS$ 3000 - 3250MOQ: 1 Piece
-
Pneumatic Floating Fender Used for Ship and BoatUS$ 3000 - 3250MOQ: 1 Piece
Brand Name
FLORESCENCE
Place of Origin
China
Model Number
FL-SJY5759
Part
Other, D2.0L3.5m ship floating rubber fender at stock
Ship inflatable docking floating rubber fender
Floating rubber fender is the advanced anti-collision device for marine applications in the world today. It uses compressed air as medium to absorb the impact energy when ship-to-ship contact and ship-to berthing. Comparing with traditional bumper style rubber fender, it has the following advantages:
1.More energy absorption
2.Less reverse impact on ships
3.Light weight
4.Easy installation
5.Softer and economical
6.Widely used by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharfs.
1.More energy absorption
2.Less reverse impact on ships
3.Light weight
4.Easy installation
5.Softer and economical
6.Widely used by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharfs.

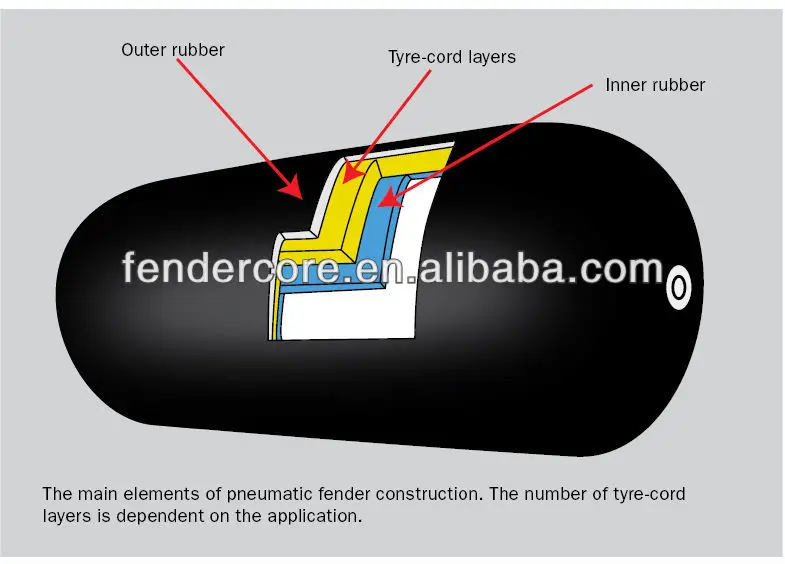

Structure of floating rubber fender
Outer rubber layer
The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has
sufficient tensile and tear strength to withstand any weather condition and hard usage.
Synthetic-tyre-cord layer
The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.
Inner rubber layer
The inner rubber layer seals the air inside, utilizing a compound with airtight quality.
The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has
sufficient tensile and tear strength to withstand any weather condition and hard usage.
Synthetic-tyre-cord layer
The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.
Inner rubber layer
The inner rubber layer seals the air inside, utilizing a compound with airtight quality.

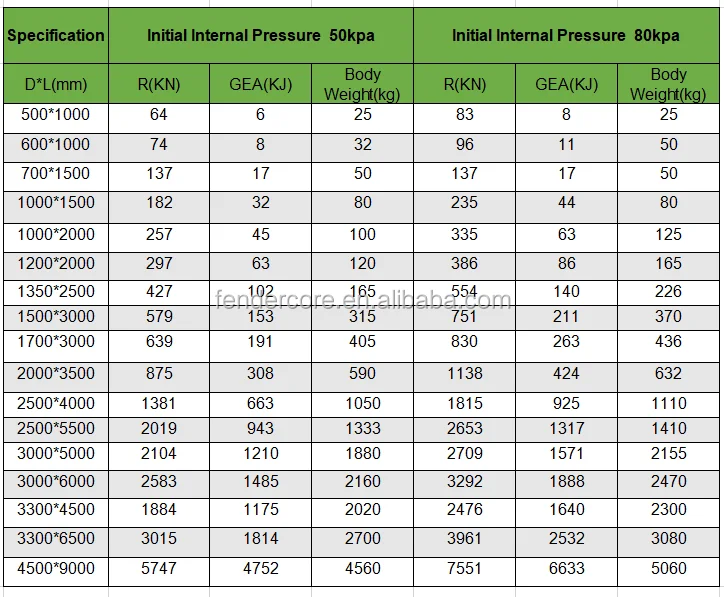

Specification of floating rubber fender
Different types of floating rubber fender

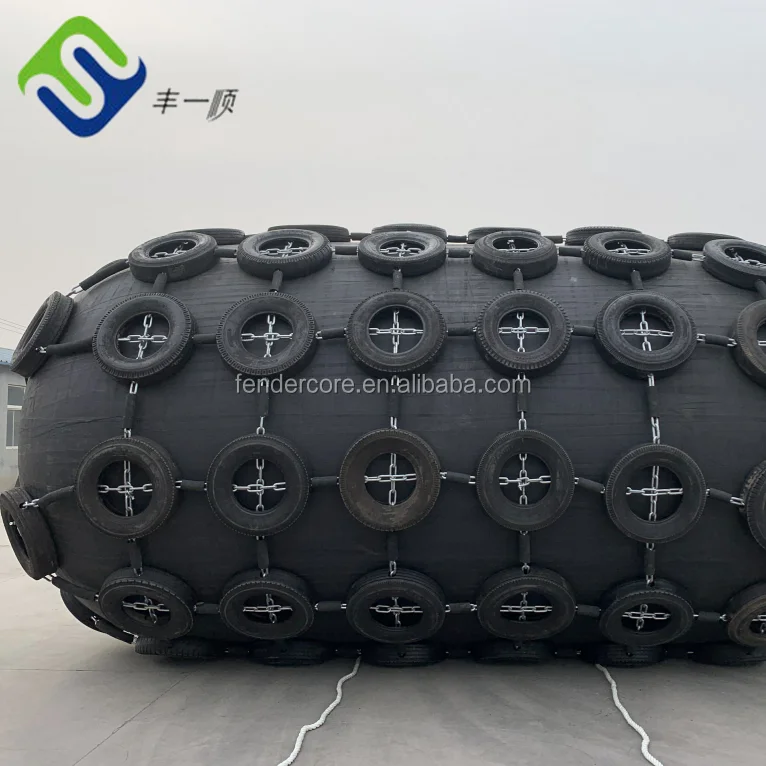

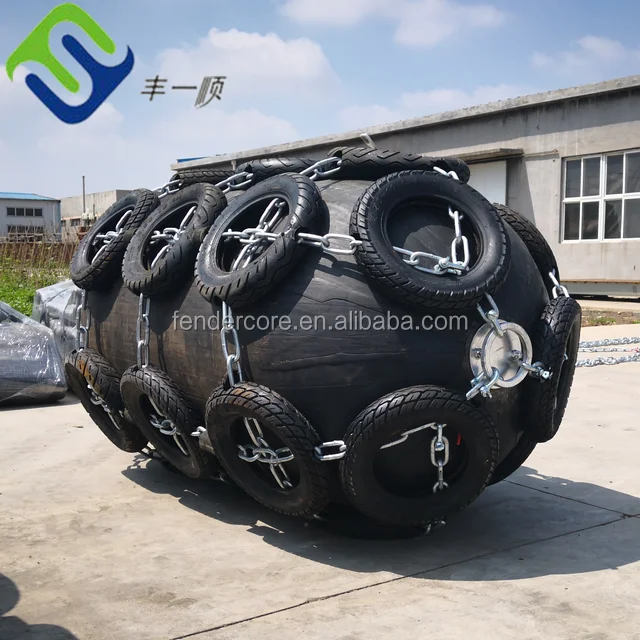

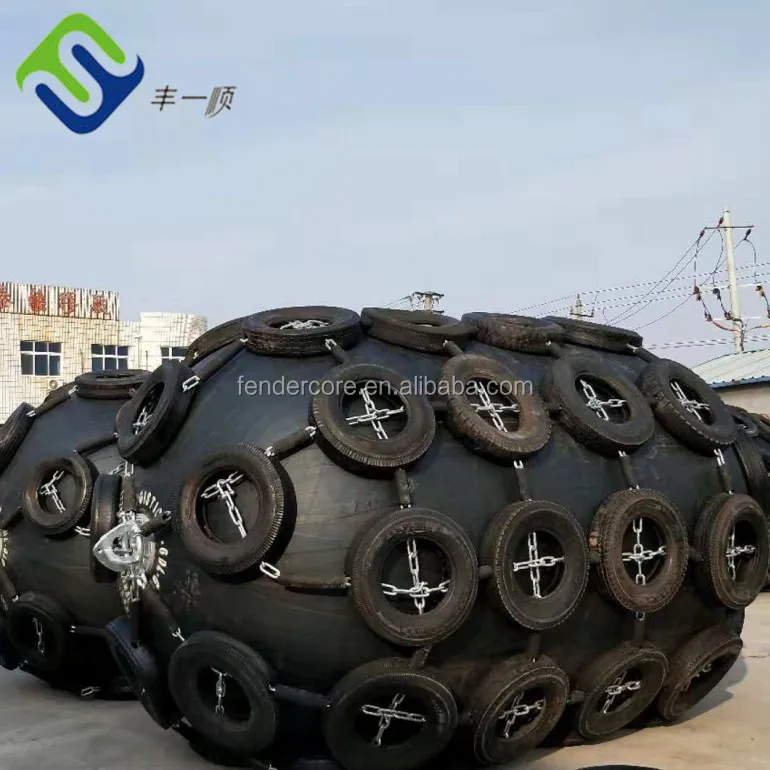

1. Net type floating rubber fender
General: Net type floating rubber fender is a kind of fender with high strength, high wear resistance which is made according to ISO 17357 Regulations.
Size: D0.5L1.0m ~ D3.3L6.5m
Characteristics: Floating rubber fenders shall consist of an out rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.

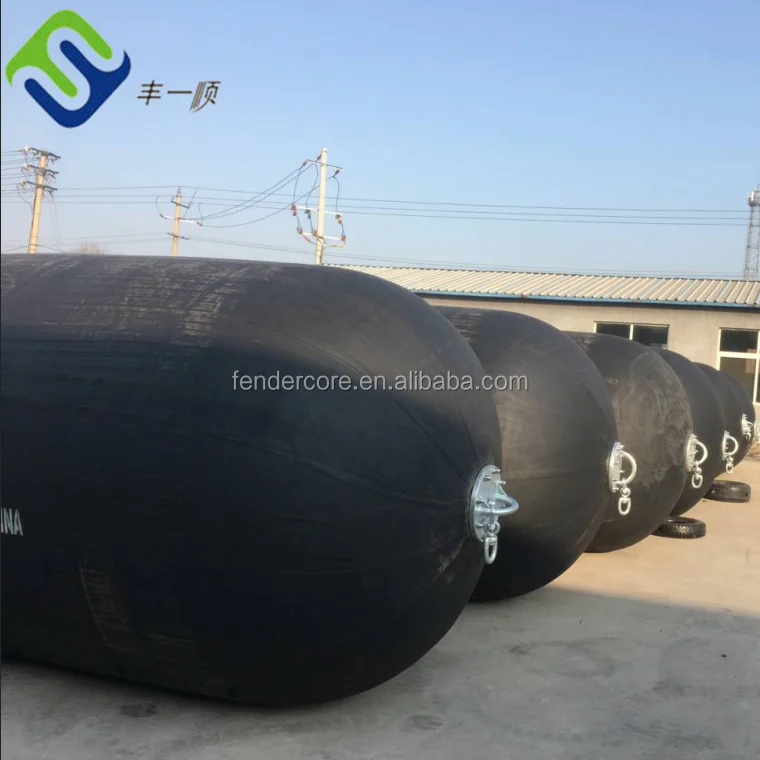

2. Sling type floating rubber fender
General: Sling type floating rubber fender is a kind of fenders without chain & tire net made according to ISO 17357 International Standard.
Size: D0.5L1.0m ~ D3.3L6.5m
Characteristics: Light weight, Color variety, No scratch to the ship and widely used for military ship, small vessels etc.
General: Net type floating rubber fender is a kind of fender with high strength, high wear resistance which is made according to ISO 17357 Regulations.
Size: D0.5L1.0m ~ D3.3L6.5m
Characteristics: Floating rubber fenders shall consist of an out rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.
2. Sling type floating rubber fender
General: Sling type floating rubber fender is a kind of fenders without chain & tire net made according to ISO 17357 International Standard.
Size: D0.5L1.0m ~ D3.3L6.5m
Characteristics: Light weight, Color variety, No scratch to the ship and widely used for military ship, small vessels etc.

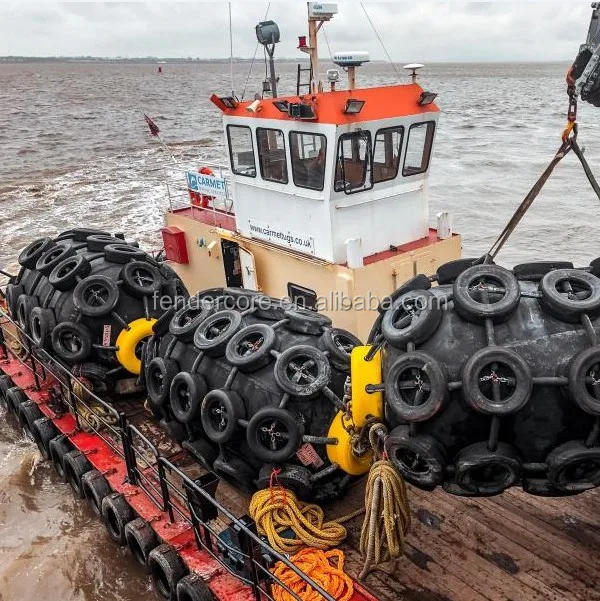

Application of floating rubber fender

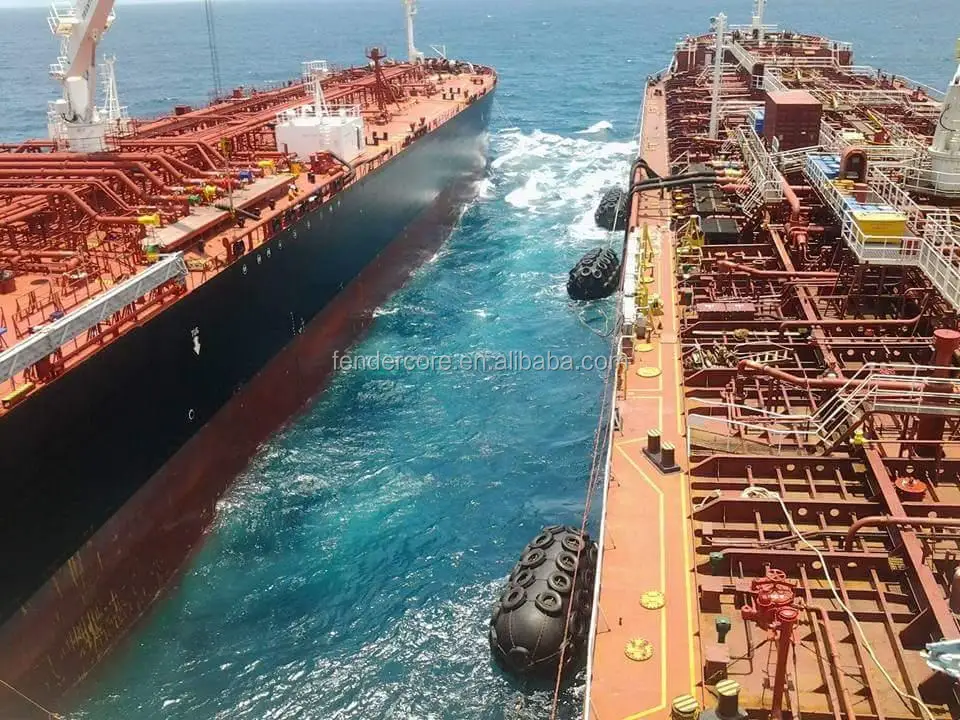

Ship to ship transfers at seas.
Double banking operation as well as vessel to berth at dock/jetty.
Oil & gas tankers.
Temporary and permanent installations.
Rapid response and emergencies.
Liquid cargo and naval defense vessels.
Double banking operation as well as vessel to berth at dock/jetty.
Oil & gas tankers.
Temporary and permanent installations.
Rapid response and emergencies.
Liquid cargo and naval defense vessels.

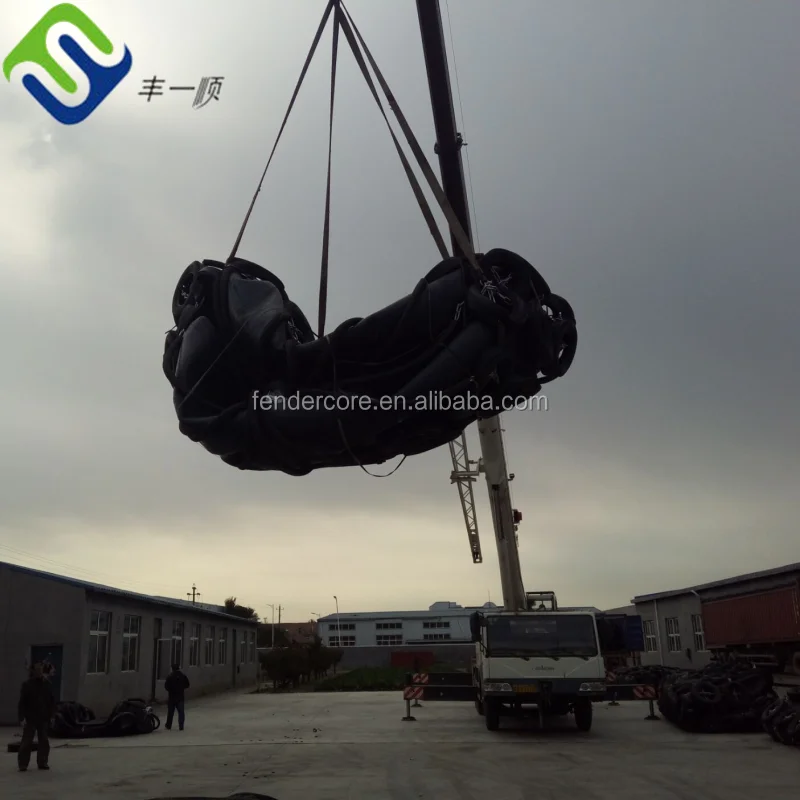

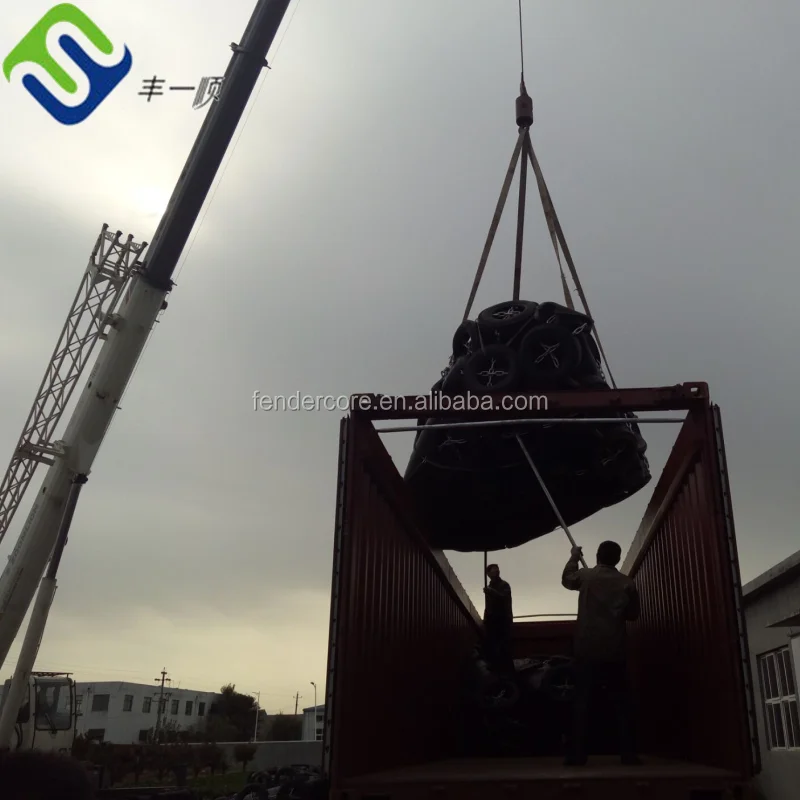

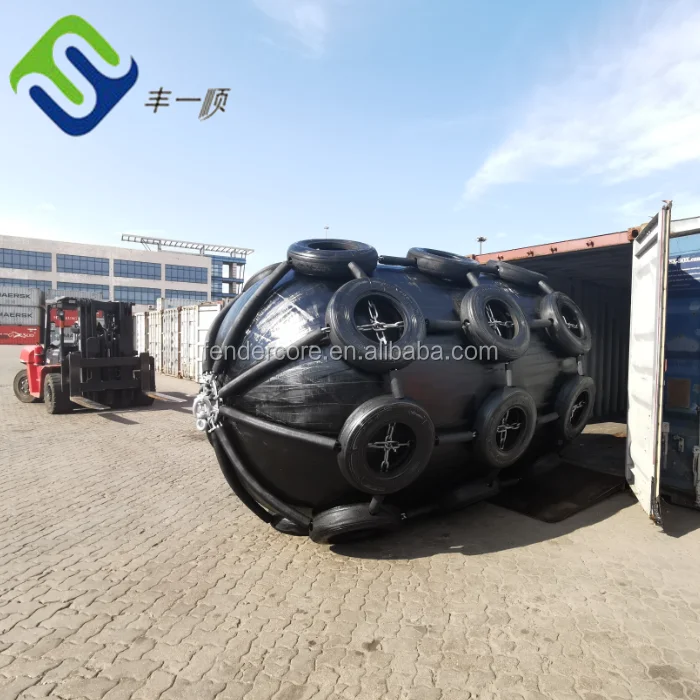

Packing and loading
Use attention of floating rubber fender
*Frequently check whether the fender body is damaged and whether the pressure is normal,and the valve core must be replaced every six moths
*The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed
*The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed
*The accessories and jigs nuts can’t be loose when testing the internal pressure
*The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.
*The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed
*The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed
*The accessories and jigs nuts can’t be loose when testing the internal pressure
*The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.
Storage of floating rubber fender
1. When not using for a long time,wash the fender surface,dry up and fill in sufficient right amount of compressed air to lay in a cool,dry and well-ventilated place.
2. The storage place of pneumatic rubber fender should be far away from heat source.
3. Try to keep fender away from acid,alkali,grease and organic solvents.
4. When not applying the fender,the pneumatic rubber fender cant be piled up and heavy items cant be piled on the fender
2. The storage place of pneumatic rubber fender should be far away from heat source.
3. Try to keep fender away from acid,alkali,grease and organic solvents.
4. When not applying the fender,the pneumatic rubber fender cant be piled up and heavy items cant be piled on the fender
