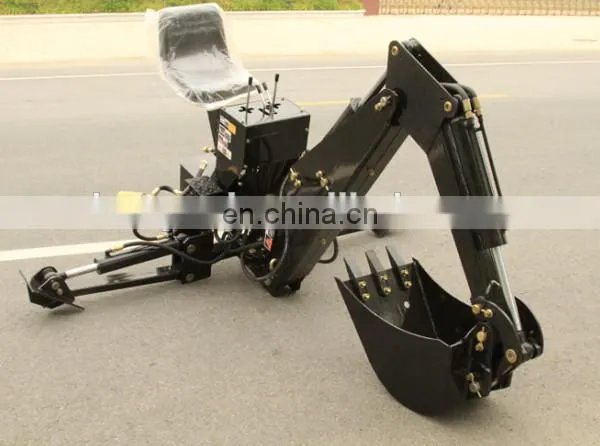

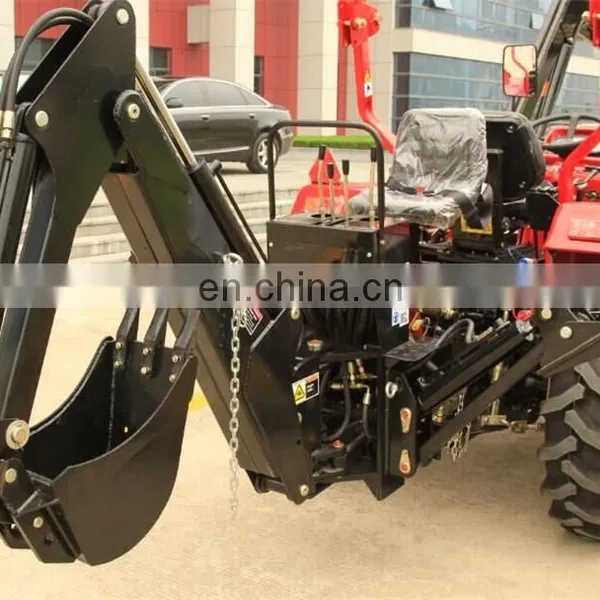

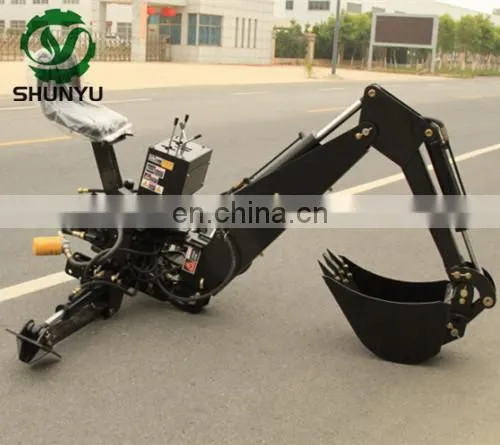

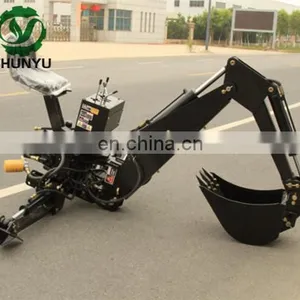

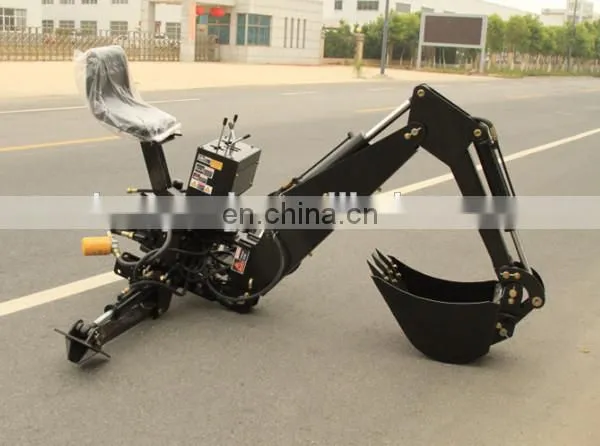

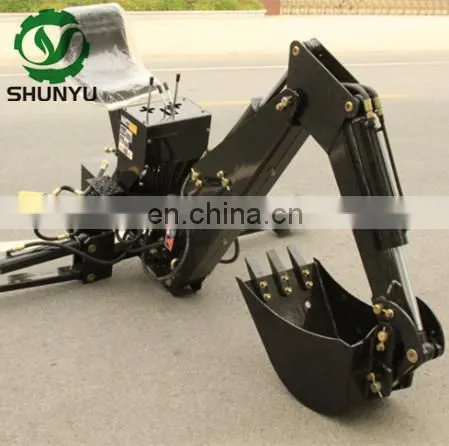

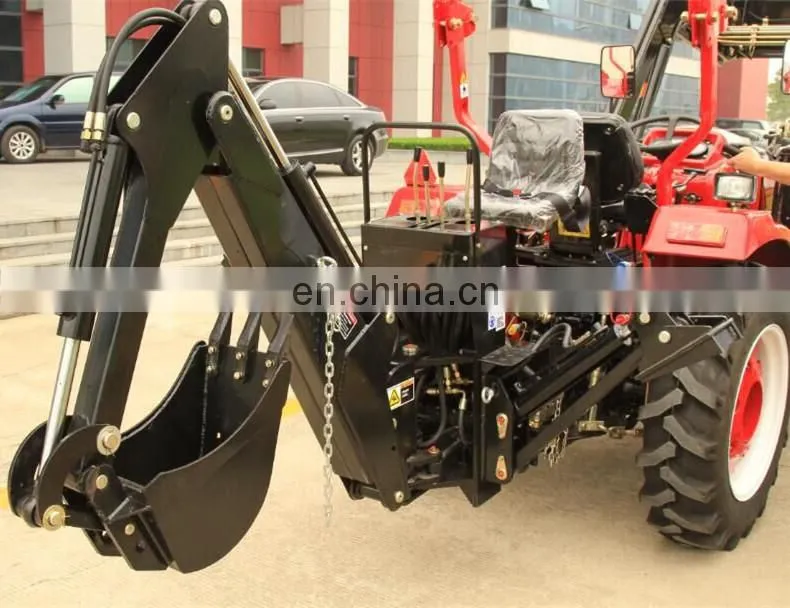

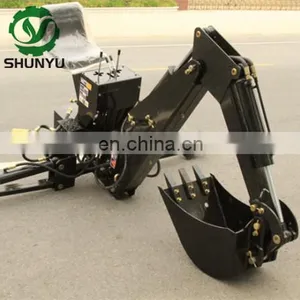

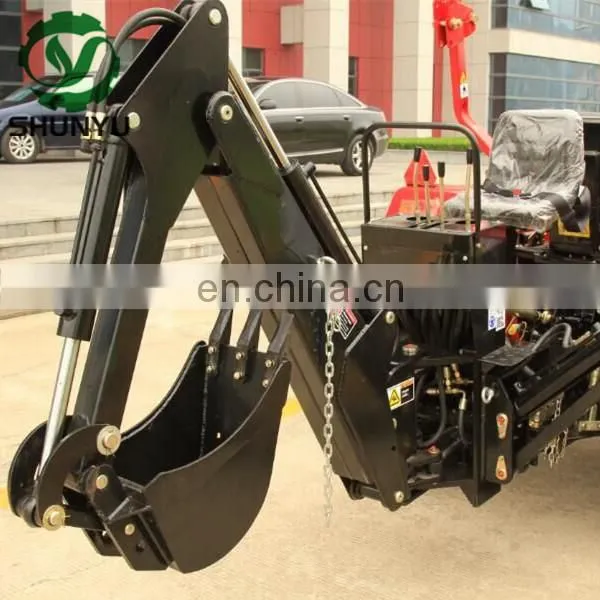

agriculture machinery LW-8 20-90hp Towable backhoe excavator bucket backhoe
Backhoe specifications:
Model |
LW-6 |
LW-7 |
LW-8 |
Dimension(L*W*H)(mm) |
3800*1860*2500 |
4410*1960*3400 |
4980*1960*3510 |
Matched power(HP) |
20-30 |
35-50 |
60-90 |
Structure weight(kg) |
600 |
650 |
700 |
Max digging depth(m) |
1.85 |
2.15 |
2.64 |
Max digging radius(m) |
2.8 |
3.36 |
3.93 |
Max digging height(m) |
2.5 |
3.4 |
3.5 |
Max unloading height(m) |
1.4 |
1.76 |
2.0 |
Stabilizer width(m) |
1.8 |
1.8 |
1.83 |
Swing angle for boom |
140° |
140° |
140° |
Bucket turning angle |
160° |
160° |
160° |

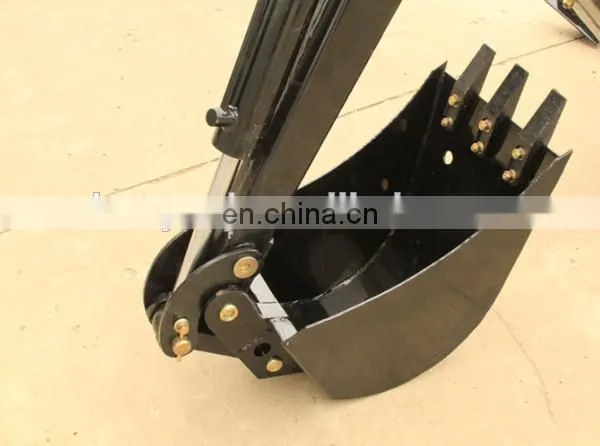

Bucket capacity(m³) |
0.036 |
0.045 |
0.05 |
Bucket width(mm) |
300 |
400 |
500 |
SHUNYU machinery mainly supply farm tractors 25hp-210hp and farm implements:

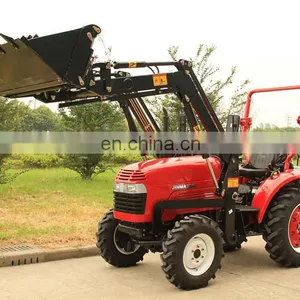

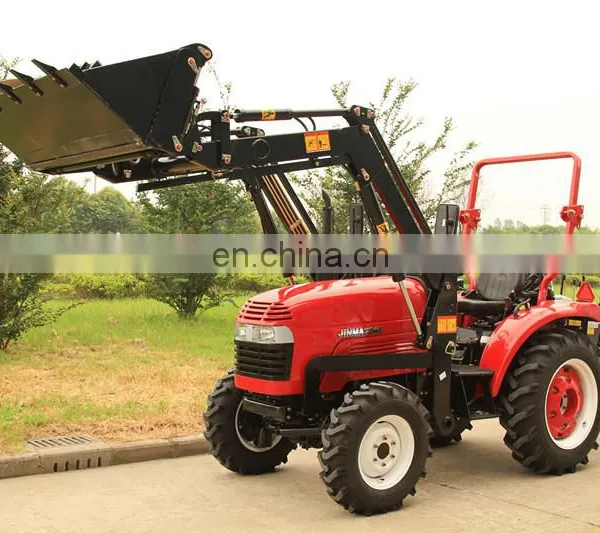

front end loader, backhoe, disc plough, wood chipper, flail mower, forklift for tractors.
We could not put all products on website, welcome to contact us freely if you need something.
Pre-sales service After-sales Service
*Inquiry and consulting support * training how to instal the machine
* View factory * training how to use the machine
Your inquiries will be highly appreciated.
