24V 2.2KW dc electric car motor with high torque 8N.m

FOB Price

US$ 45 - 50 / Piece

1 Piece(Min. Order)

Port shang hai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jinle	Place of Origin	Jiangsu, China
Model Number	W9405	Type	Micro Motor
Certification	CE	Torque	6N.m
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Series Wound
Efficiency	IE 4	Protect Feature	Drip-proof
Continuous Current(A)	115A	Speed(RPM)	2600RPM
Commutation	Brush

Product Description

24V 2.2KW dc electric car motor with high torque 8N.m

We attend several fairs in domestic and overseas.
1) Canton Fair in Spring and Autumn
2) PTC in Shanghai
3) Hannover in Germany
4) Win Eurasia in Turkey

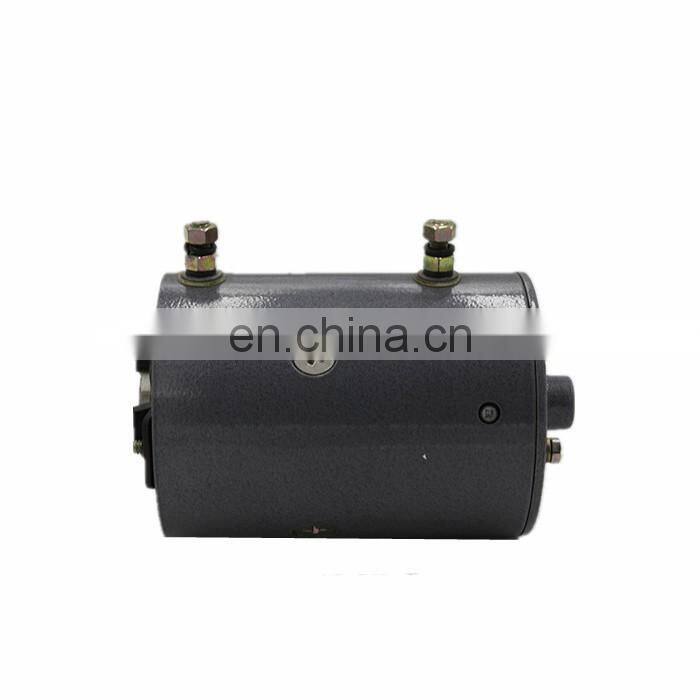

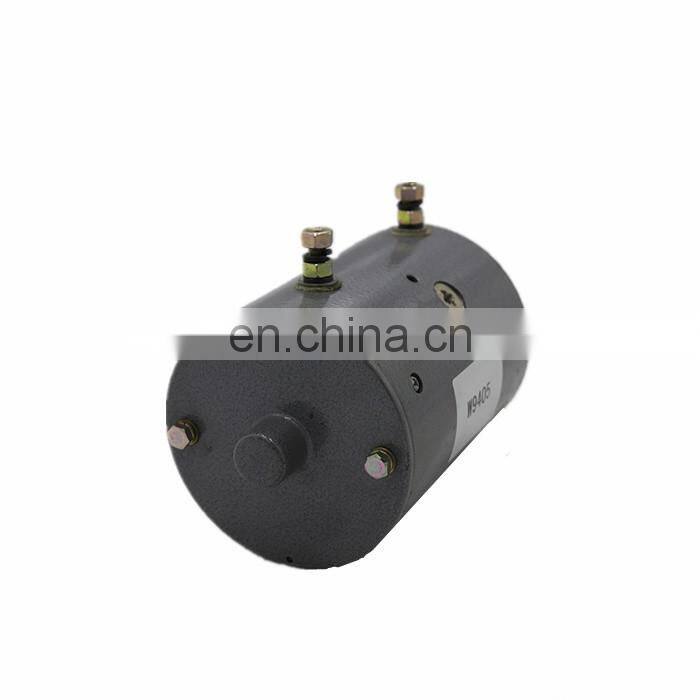

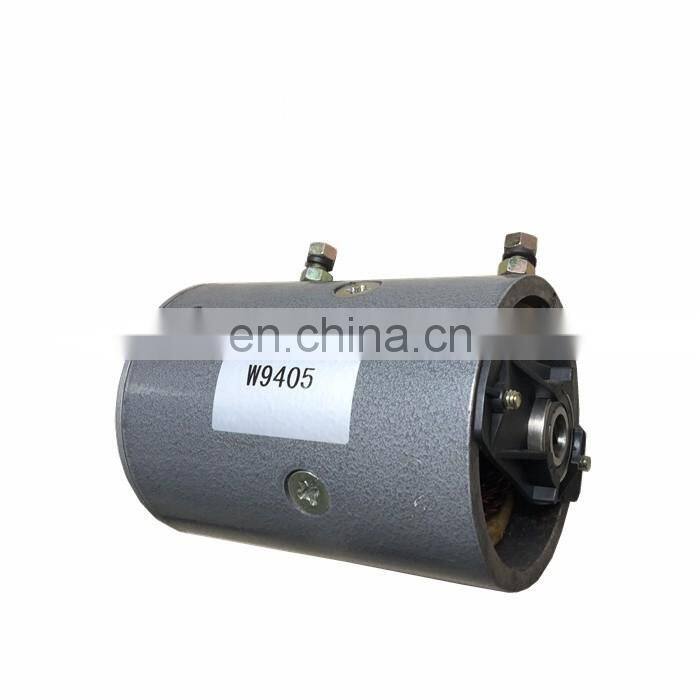

This type W9405 is a 24V 2.0KW dc motor with carbon brush .It is composed of a stator magnetic pole, a rotor (armature), a commutator (commonly referred to as a commutator), a brush, a casing, a bearing, and the like.
It can be used in forklift , car , Fan , boat , electric bicycle.Its work duty is S3 .
This motor can supply basic power for them .It has the advantages of good speed regulation performance, easy starting, and ability to load and start.
Our product quality has passed CE and ISO certification.

Parameters

Type	Voltage	Power	Speed	Rotation	0.D
W9405	24V	2.0KW	2600RPM	CCW	114mm

Unload		Max_Torque		Max_Efficiency		Max_Pout
n	7314rpm	M	6.020N.m	Eff	67.04%	Eff	57.86%
I	109.360A	I	211.930A	n	5947rpm	n	2325rpm
		n	2325rpm	M	1.010N.m	M	6.020N.m
		Eff	57.86%	I	74.140A	I	211.930A
		P2	1465.60W	P2	628.90W	P2	1465.60w

Packing & Delivery

Certifications

Our Company

Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors

We have nearly 22 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.

So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.

Welcome to our factory to visit!

Our Service

Specifications of our hydraulic dc motors, dc motor, hydraulic power unit motor dc :
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% coppe wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 21 years' manufacturing experience

Contact Information

FAQ

1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates of hydraulic dc motors
CE, ISO9001 etc

3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control of dc motor
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
