Home > Electrical & Electronics > Battery, Storage Battery & Charger > Battery Pack > 12.8V22Ah Golftrolley

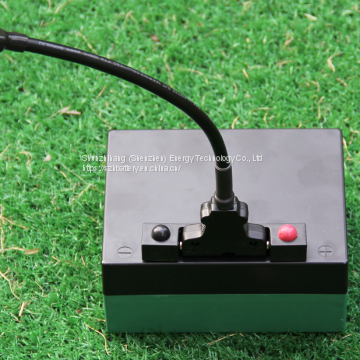

12.8V22Ah Golftrolley
US$ 50 - 300
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHUNZHIHANG
Place of Origin:
China
Model Number:
12.8V16Ah/18Ah/22Ah
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
30 days
Related Products
Brand Name
SHUNZHIHANG
Place of Origin
China
Model Number
12.8V16Ah/18Ah/22Ah
Type
Li-Ion
Size
（168±1）mm *（128±1）mm*（102±1）mm
Weight
2.4±0.1kg
Voltage
12.8V
Application
Golftrolley
Nominal Capacity
12.8V16Ah/18Ah/22Ah
Components
Other, battery cell
Composed Type
Other, battery cell
Product Specification
l Product Model：HT-4IFR12.8-22-Y （32650-3.2V-4S4P）
l Nominal Voltage：12.8V
l Rated Capacity：23±0.5Ah（C5）
l Energy：281.6Wh
l Internal Resistance：≤40mΩ
l Weight: 2.4±0.1kg
l Size:（168±1）mm *（128±1）mm*（102±1）mm
l Voltage Range：10.0V～14.4V
l Charger Current：≤5A
l Discharge Current：20A
l Max continuous current：≤30A
l Cycle Life：≥1500 cycles, capacity retention rate≥80%).（Standard charge at 0.2C（A）, rest 0.5~1h; discharge at 0.2C to cut off voltage，rest 0.5~1h,repeat the above steps until 1500 cycles.）
l Protection function：Over charge protection、Over discharge protection、Over current protection、Temperature protection、Balanced function
