Home > Products > Hydraulic dc motors > 100% Copper Wire 24v 2000w dc motor

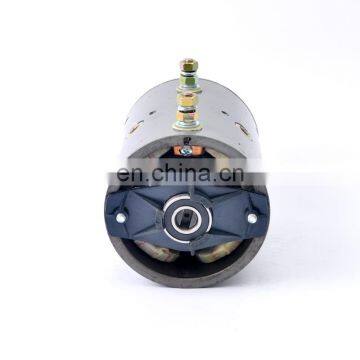

100% Copper Wire 24v 2000w dc motor

FOB Price

USD $35 - $48 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jinle	Place of Origin	Jiangsu, China
Model Number	W9405	Type	Micro Motor
Certification	CE	Torque	6N.m
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Series Wound
Efficiency	Other
Continuous Current(A)	120A	Speed(RPM)	2600RPM
Commutation	Brush

Product Description

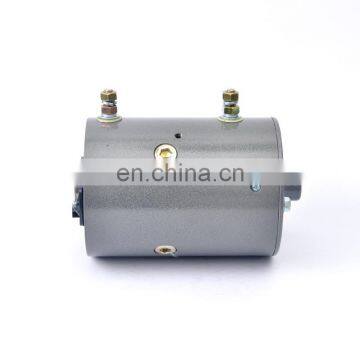

100% Copper Wire 24v 2000w dc motor

1.Specifications 100% Copper Wire 24v 2000w dc motor

Type	W9405
Voltage	24V
Power	2KW
Speed	2600RPM
Rotation	CCW

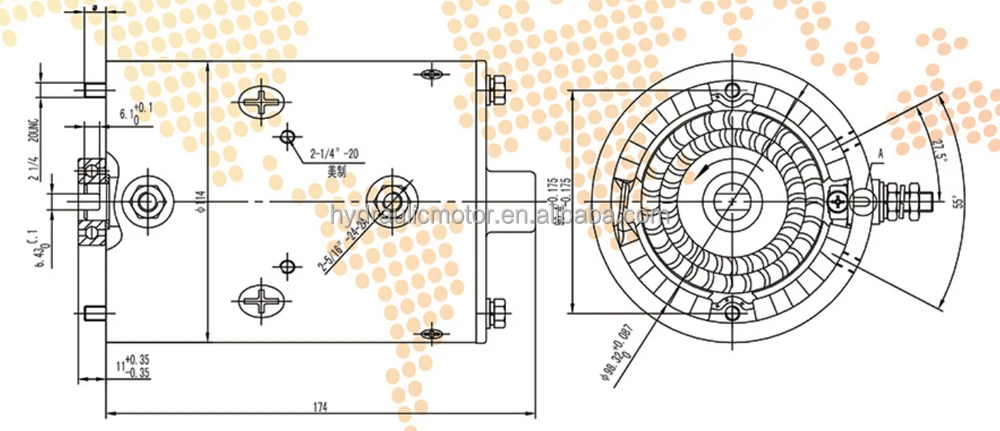

o.d	114MM
Operating mode	S3
Effiency	IE2
Weight	7.5KG
Insulation	F
Protection Class	IP54

2.Features 100% Copper Wire 24v 2000w dc motor

This snow-sweeper hydraulic dc motor 24v 2kw have following features:
(1)stable running, high efficiency, low noise
(2)good service after sale
(3)12V, 24V, 48V, 60V etc. on your request
(4)Customized production is available!
(5)Supply for OEM Production!
(6)nearly 20 years' manufacturing experience

3.We provide you OEM or ODM service 100% Copper Wire 24v 2000w dc motor

(1) good quality service;HOT selling hydraulic dc motor 12 volt 1600w ZD193

(2) fast delivery service;
(3) safety package service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(4)fast sample valves preparing service;
(5) good after sale service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(6)24 hour online service;

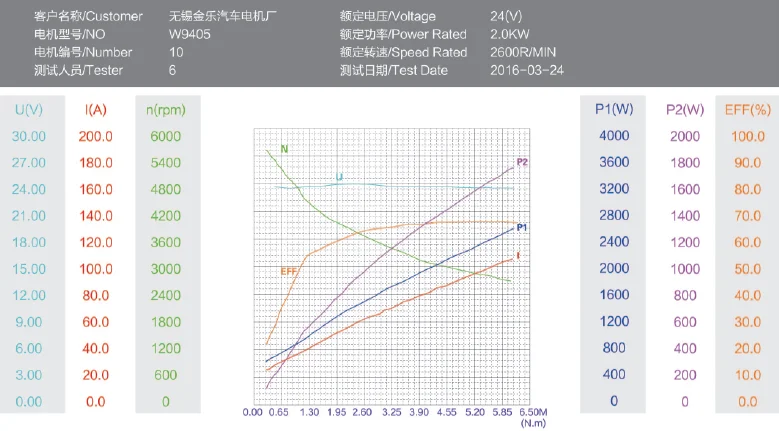

4.Parameters 100% Copper Wire 24v 2000w dc motor

Unload :

Speed(n) =5570(rpm)
Current(l) =28.410(A)
Max_Torque
Torque(M) =6.060(N.m) 12volt 1.7kw dc motor for forklift truck pump
Current(I) =109.360(A)
Speed(n) =2753(RPM)
Eff =67.12%
Output Power(P2) =1747.20(W)
Max_Efficiency:
Eff =67.25% 12v 1.7kw dc motor for power unit pack
Speed(n) =2914(RPM) 12volt 1.7kw dc motor for forklift truck pump
Torque(M) =5.160(N.m)
Current(I) =98.260(A)
Output Power(P2) =1575.70(W)
Max_Pout:
Eff =67.12%
Speed(n) =2753(RPM)
Torque(M) =6.060(N.m)
Current(I) =109.360(A)
Output Power(P2) =1747.20(W)

FAQ

1. Business Type

100% Copper Wire 24v 2000w dc motor

a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops

2. Certificates

100% Copper Wire 24v 2000w dc motor

CE, ISO9001:2000 etc.

3. How long could we get the goods?24v 500w hydraulic manget motor with carbon brush
100% Copper Wire 24v 2000w dc motor
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders

4. We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
100% Copper Wire 24v 2000w dc motor
a. 100% inspection before packing
b. Spot inspection before shipment
