Our Jinle hydraulic DC Motors/electric motors are mainly used in forklift lifting and direct drive, van wing door, auotmobile tail board, truck stamped and canopy system, hydraulic power unit equipment etc. Consists of stator, 100% copper wire armature, commutor and carbon brush etc.Our factory was established in 1996, with 21 years experience.  We have passed CE and ISO9001:2000 certificates. Welcome to send inquiry to our hydraulic dc motors, PMDC motors.

Specifications of 12V direct forklift starter motor for wheel hub

Model: ZD193A

Material: high quality fresh raw materials with 100% copper wire armature

Voltage: 12V

Power: 1600W/2HP

Speed: 2600rpm

Rotation: CCW

O.D: 114mm(4.5")

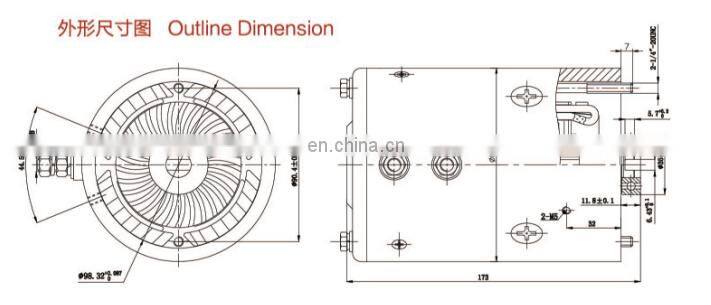

Outline Dimension of 12V direct forklift starter motor for wheel hub

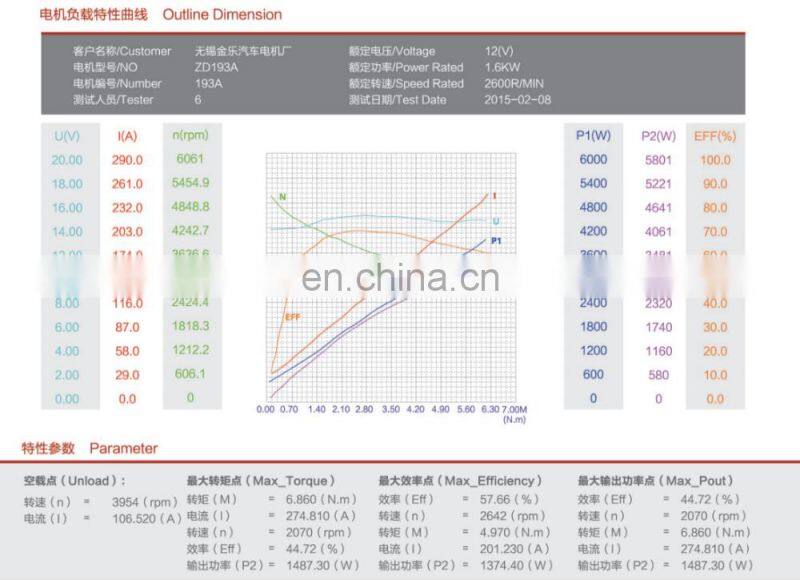

Motor Load Characteristic Curve of 12V direct forklift starter motor for wheel hub

Parameter of 12V direct forklift starter motor for wheel hub

Advantage of Jinle Hydraulic dc motors/electric motors 12v 24v 36v 48v 60v 72v

1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable

5) Advanced automatic and semi-automatic equipments

6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option

8) High class professional R&D team and skilled workers

9) Factory established in 1996 over 20 years' manufacturing experience

10)Highly qualified service, able to solve any problems

Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v and power pack unit

1. Business Type

a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters

c. Employees: over 80 in office & workshops

2. Certificates

CE, ISO9001:2000 etc.

3. How long could we get the goods?

a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders

4. Quality Control

We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.

a. 100% inspection before packing

b. Spot inspection before shipment
