Chinese Factory 12v 1.6kw Electric dc Motor for Lifting

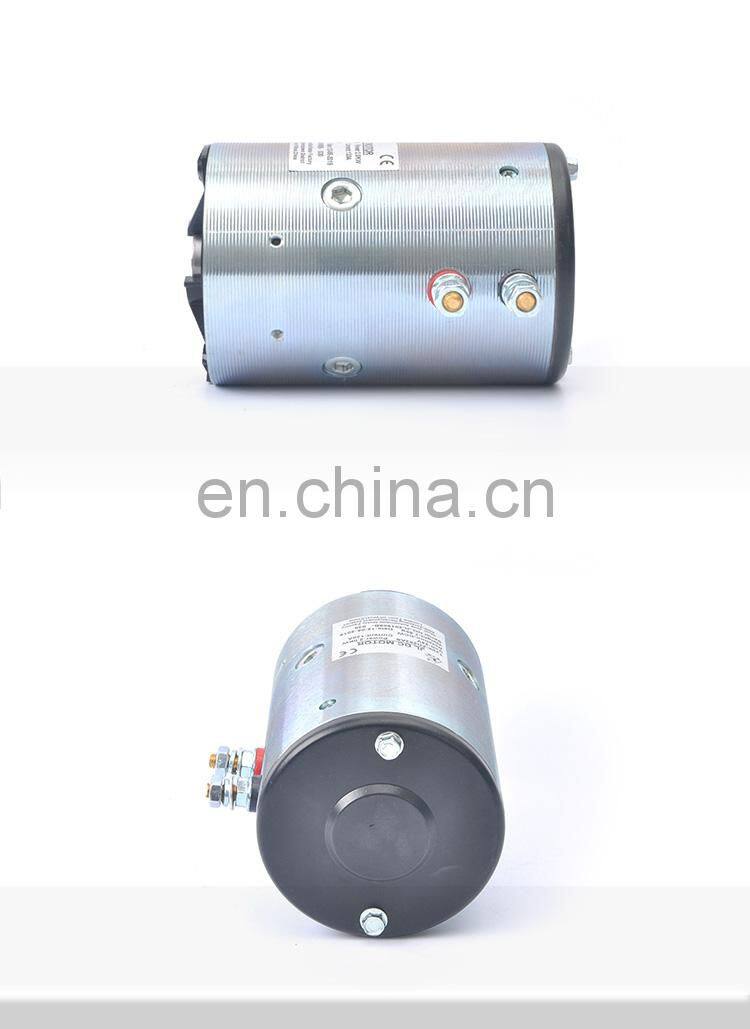

Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-1

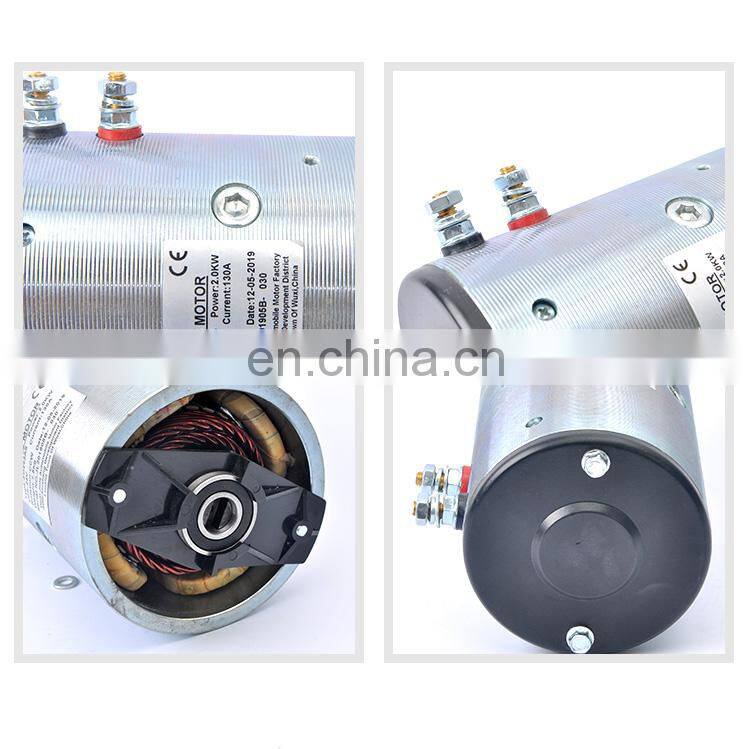

Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-2

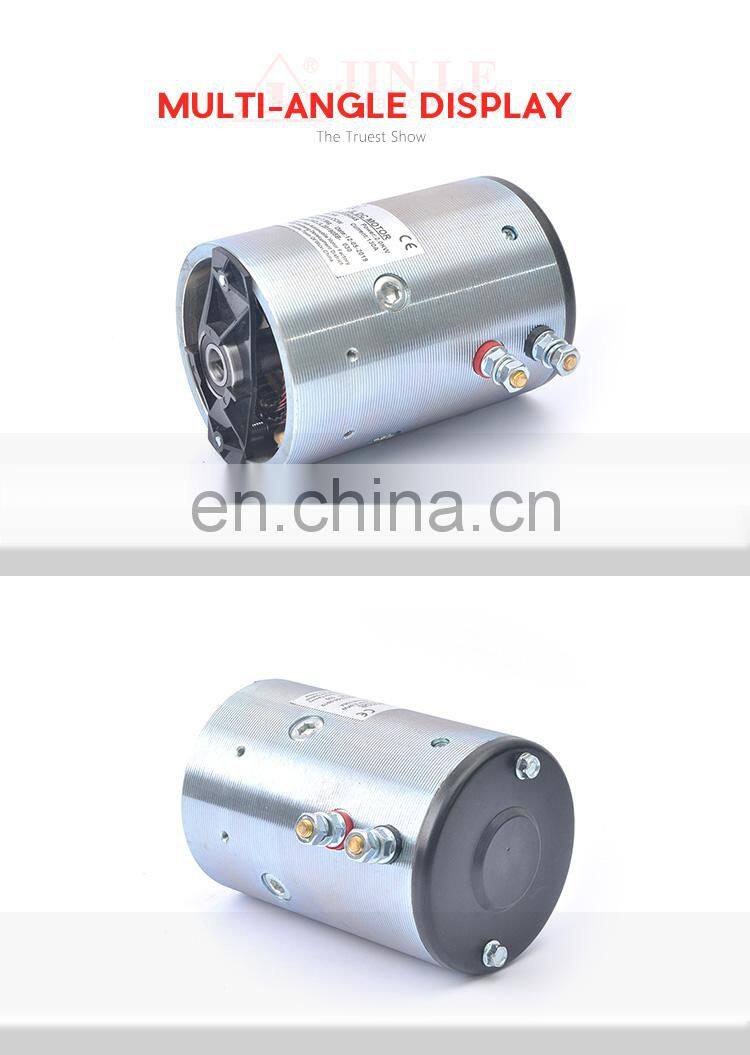

Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-3
Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-4
Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-5
Chinese Factory 12v 1.6kw Electric dc Motor for Lifting photo-6
US$ 35 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD193
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name jinle
Place of Origin Jiangsu, China
Model Number ZD193
Certification CE
Torque 6N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Shunt Wound
Efficiency IE 4
Continuous Current(A) Current
Speed(RPM) 2600rpm
Commutation Brush



chinese factory 12v 1.6kw electric dc motor for lifting



Product Description



Specifications of 12v 1.6kw dc motor for lifting

Model: ZD193

Material: 100% copper wire armature

Voltage: 12V

Power: 1600W

Speed: 2600rpm

Rotation: CW

O.D: 114mm

chinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for lifting

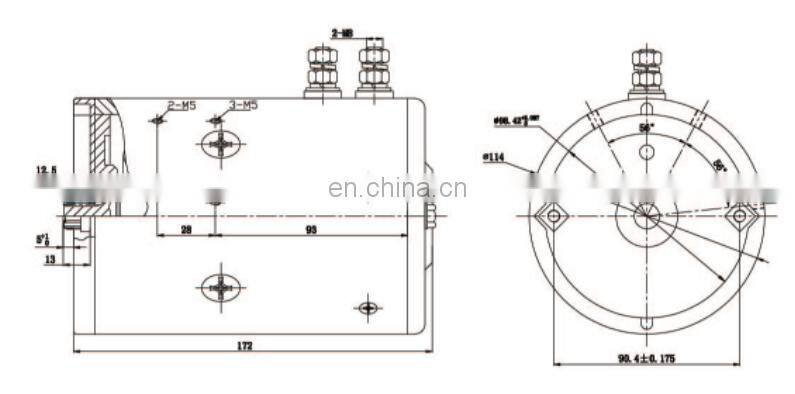

Outline Dimension of 12v 1.6kw dc motor for lifting

Motor Load Characteristic Curve of 12v 1.6kw dc motor for lifting

Parameter of 12v 1.6kw dc motor for lifting

Unload:
Speed(n)  = 3954rpm
Current(l) = 106.520A
Max_Torque:
Torque(M) = 6.860N.m
Current(I)   = 274.810A
Speed(n) = 2070rpm
Eff = 44.72%
Output Power(P2) = 1487.30W
Max_Efficiency:
Eff = 57.66%
Speed(n) = 2642rpm
Torque(M) = 4.970N.m
Current(I) = 201.230A
Output Power(P2) = 1374.40W
Max_Pout:
Eff = 44.72%
Speed(n) = 2070rpm
Torque(M) = 6.860N.m
Current(I) = 274.810A
Output Power(P2) = 1487.30W



Advantage of 12v 1.6kw dc motor for lifting

1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable

5) Advanced automatic and semi-automatic equipments

6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option

8) High class professional R&D team and skilled workers

9) Factory established in 1996 over 20 years' manufacturing experience

10)Highly qualified service, able to solve any problems







chinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for liftingchinese factory 12v 1.6kw electric dc motor for lifting



FAQ



1. Business Type

a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters

c. Employees: over 80 in office & workshops



2. Certificates

CE, ISO9001:2000 etc.



3. How long could we get the goods?

a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders



4. Quality Control

We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.

a. 100% inspection before packing

b. Spot inspection before shipment

12v 1.6kw dc motor for lifting
