2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200

2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 thumbnail-1
2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 thumbnail-2
2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 thumbnail-3
2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 photo-1
2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 photo-2
2500rpm 24v Electric Motor With High Torque for Bicycle ZD1200 photo-3
US$ 48 - 48 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD1200
Contact Supplier Request Quote Chat Now
Wuxi Jinle Automobile Motor Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number ZD1200
Type Micro Motor
Certification CE
Torque 6N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency Other
Voltage(V) 12V
Output Power 1600w
Continuous Current(A) 120A
Speed(RPM) 2500RPM
Commutation Brush



Product Description

 12V 1600W DC MOTOR

  • stable running, high efficiency, low noise

  • good service after sale

  • 12V, 24V, 48V, 60V etc.  on your request

  • Customized production is available!

  • Supply for OEM Production!

  • nearly 20 years' manufacturing experience



------------------------------------------------------------------------------ DETAILS ----------------------------------------------------------------------------



Type ZD1200
Voltage 12V
Power 1.6KW
Speed 2500RPM
Rotation CW
O.D 114mm
Weight 7.5kg
Packaing Customized



Insulation class: H

Protection class: Ip54

Operating mode: S3

Customization is available. Send me parameters, we will custom for you.

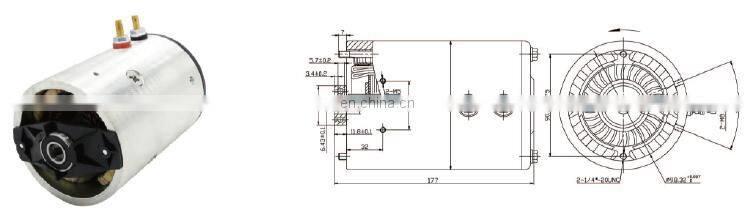

--------------------------------------------------------------OUTLINE DIMENSION------------------------------------------------

2500rpm 24v electric motor with high torque for bicycle ZD1200






 2500rpm 24v electric motor with high torque for bicycle ZD12002500rpm 24v electric motor with high torque for bicycle ZD1200





 2500rpm 24v electric motor with high torque for bicycle ZD1200











Packaging & Shipping





 2500rpm 24v electric motor with high torque for bicycle ZD1200

Our Services



2500rpm 24v electric motor with high torque for bicycle ZD1200



2500rpm 24v electric motor with high torque for bicycle ZD1200







----------------------------------------------------------------CERTIFICATE--------------------------------------------------------------



2500rpm 24v electric motor with high torque for bicycle ZD1200   2500rpm 24v electric motor with high torque for bicycle ZD1200









Company Information

 2500rpm 24v electric motor with high torque for bicycle ZD1200

Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.



We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.



So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.



 We have been attentively persisting in manufacturing motors for 20 years.


FAQ



1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops



2. Certificates

CE, ISO9001 etc



3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders



4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
