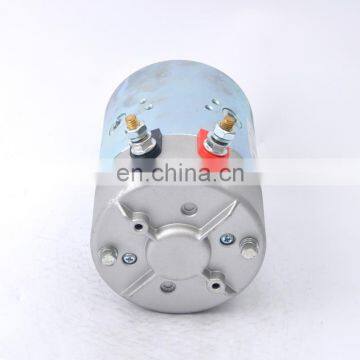

Good Looking High Quality Hydraulic dc Motor 12V 1.6KW 6NM O.D114mm

FOB Price

US$ 37 - 38 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jinle	Place of Origin	Jiangsu, China
Model Number	N1612	Type	Micro Motor
Certification	CE	Torque	6NM
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Series Wound
Efficiency	IE 4	Protect Feature	Drip-proof
Continuous Current(A)	120A	Speed(RPM)	2350rpm
Commutation	Brush

Product Description

1) Type: 1612,N1612

2) Voltage: 12V

3) Power: 1.6KW

4) Speed: 2500PM

5) Rotation: CW

6) O.D. : 114mm

7) Operating mode: S3

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 6N.m

Type	Voltage	Power	Speed	Rotaion	O.D.	Torque
W5692	12V	1.6KW	2500RPM	CW	114mm	6N.m
W6599	12V	1.7KW	2720RPM	CW	114mm	6N.m
W9789	12V	1.6KW	2500RPM	CW	114mm	6N.m
ZD4201	48V	2.0KW	2700RPM	CW	114mm	6N.m
ZD1223	12V	2.0KW	2800RPM	CW	114mm	6N.m
ZD293	24V	2.2KW	3000RPM	CW	114mm	6N.m
ZD2930	24V	2.2KW	2700RPM	CW	114mm	6N.m
ZD1221	12V	2.0KW	2900RPM	CW	114mm	6N.m
ZD2931	24V	2.0KW	2600RPM	CW	114mm	6N.m
ZD223A	24V	2.2KW	2700RPM	CW	114mm	6N.m
ZDY211	24V	0.8KW	3650RPM	CW	80mm	2N.m
ZDY212	24V	0.5KW	2800RPM	CW	80mm	2N.m
ZDY112	12V	0.5KW	2300RPM	CW	80mm	2N.m
ZDY113	12V	0.8KW	3500RPM	CW	80mm	2N.m
ZD2973A	24V	3.0KW	3100RPM	CW	127mm	10N.m
ZD2373	24V	3.0KW	2850RPM	CW	125mm	10N.m
XQD-3C	24V	3.5KW	3100RPM	CW	142mm	10N.m
W8799	12V	1.5KW	2400RPM	CCW	114mm	6N.m
W8935	12V	1.5KW	2460RPM	CCW	114mm	6N.m
W8950	24V	2KW	2600RPM	CCW	114mm	6N.m
W8999	12V	1.6KW	2500RPM	CCW	114mm	6N.m
W9405	24V	1.5KW	2400RPM	CCW	114mm	6N.m
ZD193A	12V	1.6KW	2500RPM	CCW	114mm	6N.m
ZD223A	24V	2.2KW	2700RPM	CCW	114mm	6N.m
ZD293A	24V	2.2KW	3000RPM	CCW	114mm	6N.m
QZD2411	24V	1.1KW	2160RPM	BI-DIRECTIONAL	127mm	10N.m
QZD4841	48V	4.0KW	2030RPM	BI-DIRECTIONAL	170mm	17N.m
W8923	12V	1.4KW	2250RPM	BI-DIRECTIONAL	114mm	6N.m
W8930B	12V	1.5KW	2380RPM	BI-DIRECTIONAL	114mm	6N.m
W8941	12V	1.5KW	2400RPM	BI-DIRECTIONAL	114mm	6N.m
W9144	12V	1.5KW	2150RPM	BI-DIRECTIONAL	114mm	6N.m
W7923	12V	1.2KW	1700RPM	BI-DIRECTIONAL	114mm	6N.m
1259	12V	50W	500RPM	CW	56mm	0.5N.m
N2463	24V	200W	3000RPM	BI-DIRECTIONAL	63mm	1N.m
ZDY118	12V	1.2KW	3000RPM	CW	80mm	2N.m
ZDY218	24V	1.2KW	3000RPM	CW	80mm	2N.m
ZDY418	48V	1.2KW	3000RPM	CW	80mm	2N.m
MA08XXN	12V	0.8KW	3200RPM	BI-DIRECTIONAL	80mm	2N.m
MB08XXN	24V	0.8KW	3000RPM	BI-DIRECTIONAL	80mm	2N.m
ZDY211S	24V	0.8KW	3100RPM	CCW	80mm	2N.m

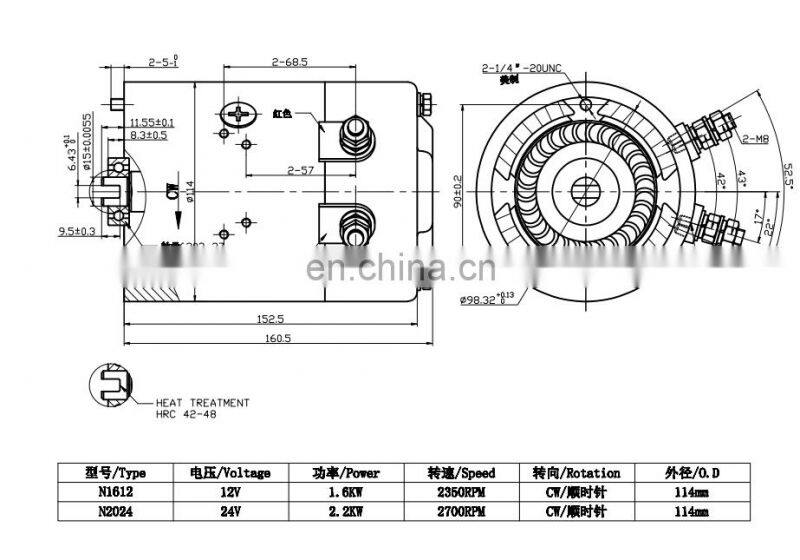

N1612	12V	1.6KW	2350RPM	CW	114mm	6N.m
N2024	24V	2.2KW	2700RPM	CW	114mm	6N.m
ZD1230	12V	1.6KW	2350RPM	CW	114mm	6N.m
ZD2420	24V	2.2KW	2700RPM	CW	114mm	6N.m
ZD6202	60V	2.0KW	2600RPM	CW	114mm	6N.m
ZD7202	72V	2KW	2600RPM	CW	114mm	6N.m
MD12160	12V	1.6KW	2700RPM	CW	114mm	6N.m
ZD1241	12V	1.6KW	2350RPM	CW	114mm	6N.m
ZD2941	24V	2.2KW	2700RPM	CW	114mm	6N.m
N3024	24V	3.0KW	3000RPM	CW	127mm	10N.m

FAQ

1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates

CE, ISO9001 etc

3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
