Home > Products > Hydraulic dc motors > 48V 800W DC MOTOR Hydraulic Permanent Magnet
48V 800W DC MOTOR Hydraulic Permanent Magnet
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | ZDY418 | Type | Micro Motor | |
| Certification | CE | Torque | 2NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 48v | Output Power | 800w | |
| Continuous Current(A) | 120A | Speed(RPM) | 3000RPM | |
| Commutation | Brush |
Product Description

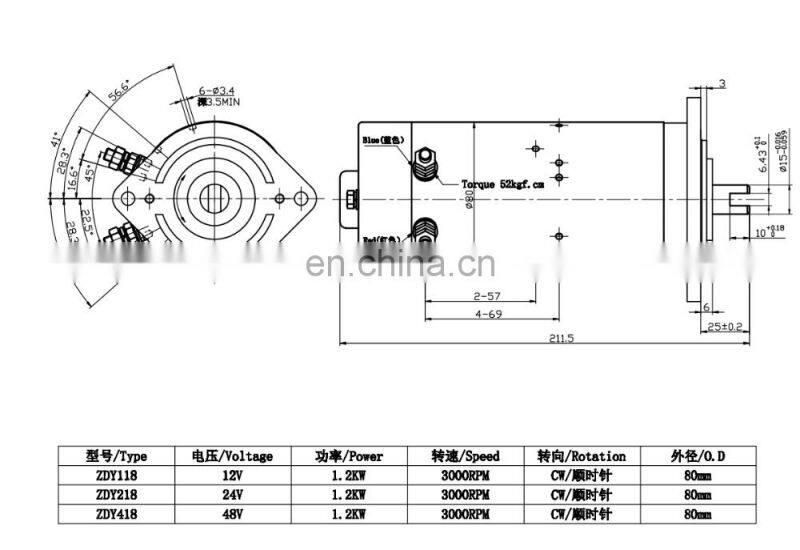

48V 800W DC MOTOR hydraulic permanent magnet
We will attend HANNOVER MESSE in 2017 in German, BOOTH No HALL020,A30-19 . From April 24th-28th.
Welcome your visit!
hydraulic dc motor
permanent magnet motor/ motors with permanent magnet
permanent magnet motors , Jinle Brand , 48V
Wuxi Jinle Automobile Motor Factory
Hydraulic Permanent magnet motor
Type | ZDY418 |
Voltage | 48V |
Power | 800W |
Speed | 3000RPM |
Rotation | CW |
O.D. | 80mm |
Operating Mode | S3 |
Effiency | IE2 |
Weight | 2.5KG |
Insulation | F |
Protection Class | IP54 |
JINLE HYDRAULIC DC MOTOR
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
| Type | Voltage | Power | Speed | Rotaion | O.D. | Torque | Duty |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm | 6N.m | S3 |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm | 6N.m | S3 |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm | 6N.m | S3 |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm | 2N.m | S3 |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm | 2N.m | S3 |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm | 2N.m | S3 |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm | 2N.m | S3 |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm | 10N.m | S2 |
| ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm | 10N.m | S2 |
| XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm | 10N.m | S2 |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm | 6N.m | S3 |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm | 6N.m | S3 |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm | 6N.m | S3 |
| QZD2409 | 24V | 900W | 2150RPM | BI-DIRECTIONAL | 126mm | 10N.m | S1 |
| QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm | 10N.m | S1 |
| QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm | 17N.m | S1 |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| 1259 | 12V | 50W | 500RPM | CW | 56mm | 0.5N.m | S2 |
| N2463 | 24V | 200W | 3000RPM | BI-DIRECTIONAL | 63mm | 1N.m | S2 |
| ZDY118 | 12V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY218 | 24V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY418 | 48V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm | 2N.m | S3 |
| N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD7202 | 72V | 2KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| MD12160 | 12V | 1.6KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1241 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2941 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| N3024 | 24V | 3.0KW | 3000RPM | CW | 127mm | 10N.m | S2 |
Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
