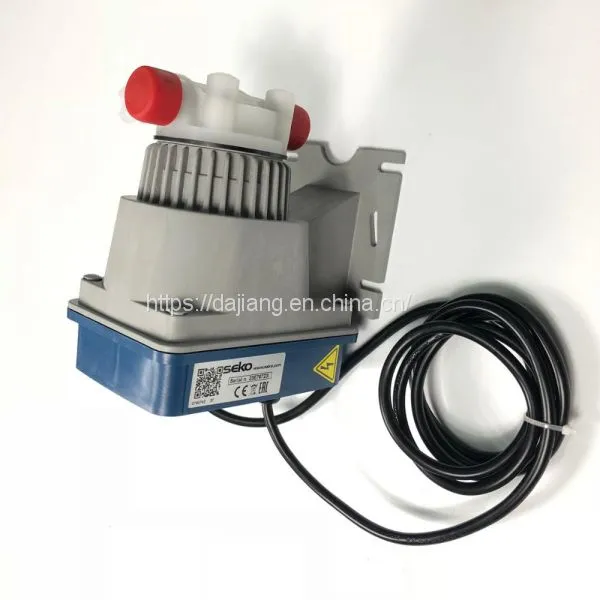

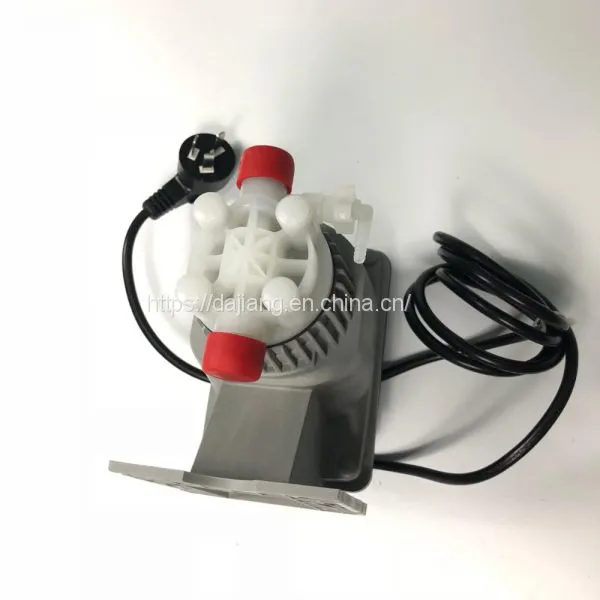

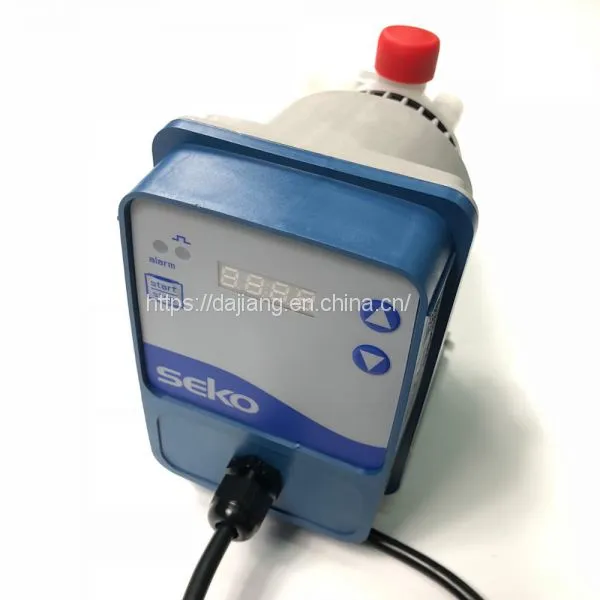

Automatic DMS seko chlorine dosing pump for chemical liquid

Compatible

 PVDF pump head and ceramic ball valve as standard

 PVDF is suitable for almost all chemical used in the Industrial, Waste Water Treatment and potableWater applications

The use of Ceramic balls as standard improves the pumping reliability and the chemical compatibility of the whole liquid end

Full chemical compatibility

Reliable

Long life diaphragm tested to give 5 years working life

The advanced design and manufacturing process allows the diaphragm to have a unique life expectancy Made of pure solid PTFE, the diaphragm is compatible with most chemicals The diaphragm has been tested over a period of 5 years giving superior results Routine diaphragm replacement is no longer a requirement

Reduced maintenance

Full chemical compatibility

Steady Dosing Performance

Stabilized Multi Power Supply 100÷240 Vac 50/60 Hz with reduced consumption

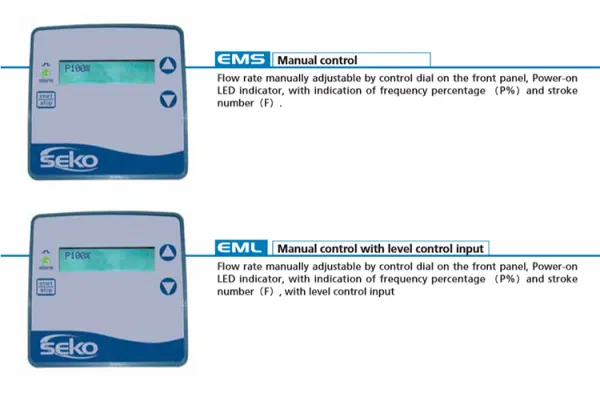

Dosing Mode

The pump head has a manual priming valve.

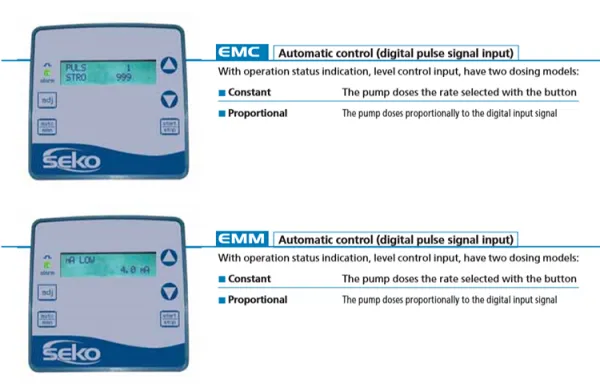

The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate. Moreover it is equipped with the low level alarm to stop or not the pump.

Pumps Head

BODY   PVDF

BALL VALVES   Ceramic

SEAT VALVE   FPM/EPDM

 DIAPHRAGM   PTFE

 The parts in contact with the liquid have been chosen in order to guarantee perfect compatibility with most chemical  normally in use.

Installation

Horizontally-mounted( standard)

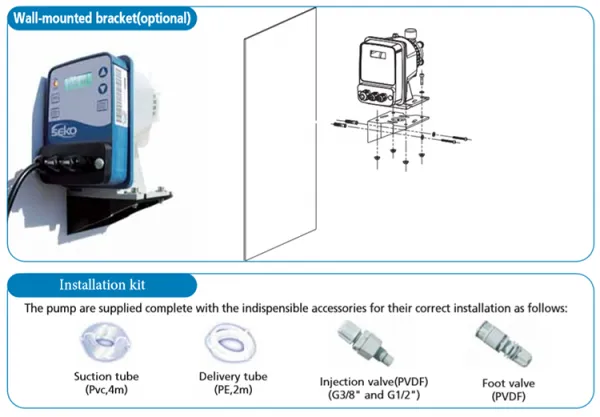

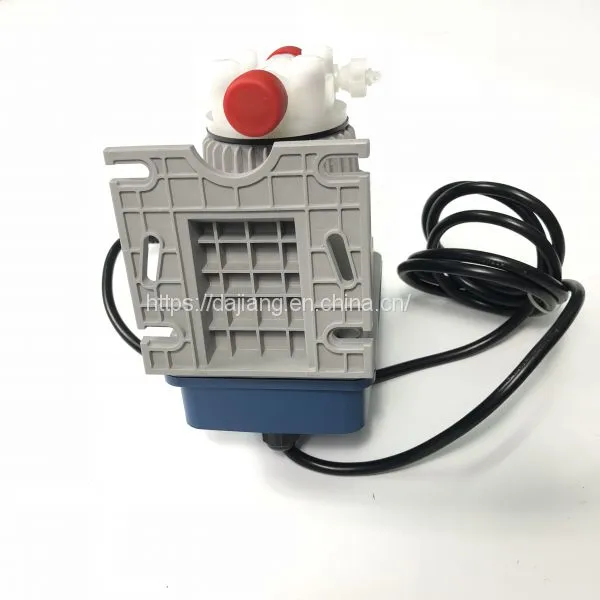

Wall-mounted(optional, need to buy bracket)

TEKBA series

Technical specifications

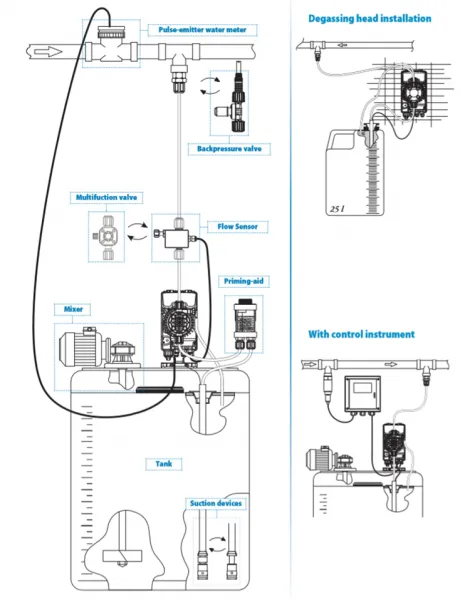

Typical Installation
