Integral V-cone Flow Transmitter

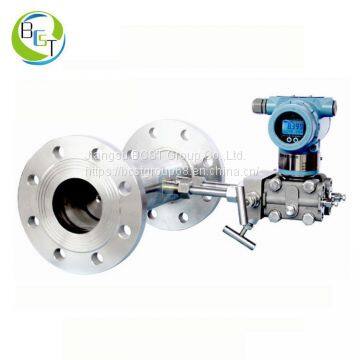

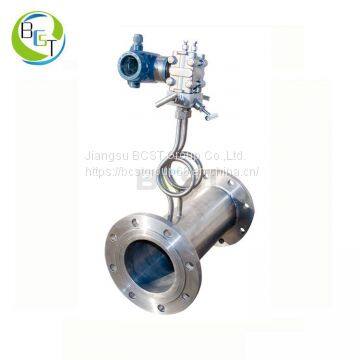

Integral v-cone flow transmitter

V-cone flowmeter is widely used in petroleum, chemical industry, natural gas, mining and metallurgy, steel, electric power, water, water supply and drainage, paper making, sugar processing, pharmaceutical, brewing, beverage, textile, printing, dyeing, chemical fiber, environmental protection and municipal engineering industry measurement.

Because of the unique structure of V-cone flowmeter, fluid in the pipe doesn’t sharply contract, the change of fluid pressure is stable, and differential pressure signal is more stable, to ensure accurate measurement of flow, especially small flow.

At the same time, because of suspension of axis and tapered body structure, when fluid close to V cone, pipe center velocity slows while velocity around pipe wall speeds. High speed fluid directly washes inner cone throttling element and pipe wall, automatically realize cleaning, to avoid adhesion and accumulation of smudgy medium. It is applicable for liquid containing gas, gas containing water and gas or liquid containing solid. It has a unique advantage in measurement of coke oven gas, blast furnace gas, natural gas, liquefied petroleum gas, high-viscosity crude oil and smudgy.

BCST V-cone flowmeter is widely used in petroleum, chemical industry, natural gas, mining and metallurgy, steel, electric power, water, water supply and drainage, paper making, sugar processing, pharmaceutical, brewing, beverage, textile, printing, dyeing, chemical fiber, environmental protection and municipal engineering industry measurement.

If you want to know more detailed information about this product, you can click the link below：

/product-integral-v-cone-flow-transmitter.html

Technical Parameter

Adopt National standard: GB/T2624-1993, SY / T6143-2004, International standard ISO5167

Pipe size: DN15 – DN3000

Basic Error: ±0.5%, ±1.5%, ±2.5%

Repeatability: ±0.1%

Working pressure: 2.5 MPa, 4.0MPa, 6.3 MPa, 10.0 MPa, 16.0 MPa, 26.0 MPa, 42.0 MPa

Medium temperature:<550 ℃

Medium: Liquid, gas (including natural gas) or steam

Turndown: 10:1

Requirements to straight tube section: upstream 0-3D, downstream 0-1D

Power supply: 1) external: 24V DC  2) Internal (built-in battery): 3.6V DC

Display: 8-digit LCD display of flow rate, totalizer, flux pressure, flux temperature & troubleshot code.

Output signal: 1) 4-20mA DC flow signal

               2) Fit output signal of HRT protocol

               3) No output signal for battery powered flow meter

Explosion proof: Intrinsically safe type IbIICT5

Enclosure: IP65

BCST V-cone flowmeter Model Selection
