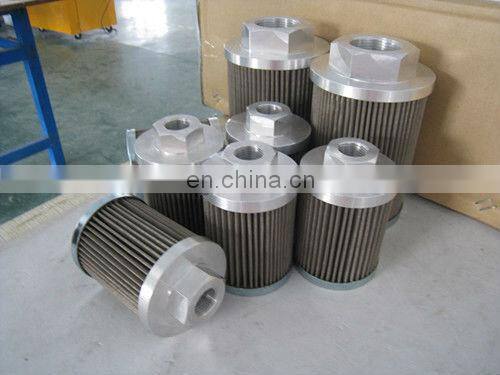

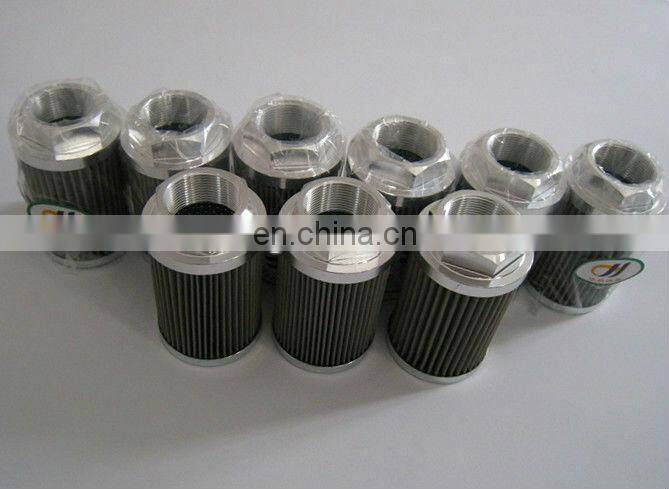

Pump suction strainer,Suction oil filter CS2505M60A
- 50000 Piece / Pieces per Month
- Shanghai China ports
- T/T Credit Card
- On sale replace Mp-filtri suction filter CU040M90N,pump suction strainer
- Suction hydraulic oil filter ,washable media suction oil filter for bypass system
- Interchange Argo oil filter V3.0520-53,olive oil separator
- High flow tractor hydraulic oil filter PU999 1X
- Alternative EPE oil filter element,turbine lube oil filter
- Alternative gul12a-50uw-dv taisei kogyo filter element for lube oil
Product Details
Brand Name: | Huahang | Place of Origin: | Henan, China | ||
Certification: | ISO9001:2015,CE,SGS | Warranty: | 1 year | ||
Weight: | 2.2 kg | Dimension(L*W*H): | as your need | Condition: | New |
Structure: | Cartridge | Power(W): | Needed) |
Product Description
Pump suction strainer suction oil filter CS2505M60A
Suction filter ----Introduction
Oil suction filter element used to suck oil filter , filtering solid particle and colloidal material in the working medium. Effective control pollution degree in working medium . It install in the tank , and must install under the liquid level tank .The material of filter element is stainless steel or copper wire mesh , can repeated use clean.
Suction filter ----Characters
1. SS net is difficult of break away from.
2. Washable SS net.
3. High precision & high filter efficiency
4. Chemistry compatibility wide
5. Filter element aperture compact , equality
6. Small filtration resistance , high flow
7. Filter element accept dirt , long use life .etc.
Suction filter ----Applications
It is widely use pure water manufacture pretreatment , live drinking water , circulating cooling water , laboratory water , boiler water , oilfield flooding and food drink , chemical , make wine , pharmacy , electroplate , printing , paint , petroleum , electronic etc industry.
Suction filter ----Specifications
1. The filter head: polyamide (nylon)
2. End cover: galvanized steel plate
3. Filter skeleton: galvanized steel plate
4. Metal mesh: 60 mu mu mu - 90-90
5. Bypass valve: 30 kPa delta p plus or minus 10%
6. Working temperature: 25 ~ + 110 °C
7. Filter fracture pressure: the delta p 100 kPa
Suction filter----More models
Model | DN(mm) | Nominal flow rate(L/min) | Filter precision(um) | Reset pressure loss(MPa) | Mating assembly mode |
TFX-25 | 15 | 25 | 80 100 180
| No more than 0.01 | TF-25 -L |
TFX-40 | 20 | 40 | TF-40 –L | ||
TFX-63 | 25 | 63 | TF-63 -L | ||
TFX-100 | 32 | 100 | TF-100 –L | ||
TFX-160 | 40 | 160 | TF-160 –L | ||
TFX-250 | 50 | 250 | TF-250 –L | ||
TFX-400 | 65 | 400 | TF-400 –L | ||
TFX-630 | 90 | 630 | TF-630 –L | ||
TFX-800 | 90 | 800 | TF-800 –L | ||
TFX-1000 | 90 | 1000 | TF-1000 –L |
Model | DN(mm) | Nominal flow rate(L/min) | Filter precision(um) | Nominal pressure loss(MPa) | Mating assembly model |
UX-25 | 15 | 25 | 80 100 180 | No more than 0.007 | NJU-25 –J |
UX-40 | 20 | 40 | NJU-40 –J | ||
UX-63 | 25 | 63 | NJU-63 –J | ||
UX-100 | 32 | 100 | NJU-100 –J | ||
UX-160 | 40 | 160 | NJU-160 –J | ||
UX-250 | 50 | 250 | No more than 0.01 | NJU-250 –J | |
UX-400 | 65 | 400 | NJU-400 –J | ||
UX-630 | 80 | 630 | NJU-630 –J | ||
UX-800 | 90 | 800 | NJU-800 -J |
Model | Through diameter(mm) | Nominal flow rate(L/min) | Filter precision(um) | Nominal pressure(MPa) | Pressure loss(MPa) | Mating assembly model | |
Initial | Max | ||||||
FBX-25 | 55 | 25 | 1 3 5 10 20 30 | 1.6 | No more than 0.075 | 0.35 | RFB-25 |
FBX-40 | 40 | RFB-40 | |||||
FBX-63 | 63 | RFB-63 | |||||
FBX-100 | 100 | RFB-100 | |||||
FBX-160 | 160 | RFB-160 | |||||
FBX-250 | 80 | 250 | RFB-250 | ||||
FBX-400 | 400 | RFB-400 | |||||
FBX-630 | 630 | RFB-630 | |||||
FBX-800 | 800 | RFB-800 | |||||
FBX-1000 | 1000 | RFB-1000 | |||||
FBX-1300 | 1300 | RFB-1300 |
Model | Through diameter(mm) | Nominal flow(L/min) | Filtrating precision(um) | Nominal pressure(MPa) | Mating assembly model |
GP300*Q2 | 35 | 300 | 3 5 10 20 30 | 1.6 | GP-A300*Q2 |
GP400*Q2 | 400 | GP-A400*Q2 | |||
GP500*Q2 | 500 | GP-500*Q2 | |||
GP600*Q2 | 600 | GP-600*Q2 |

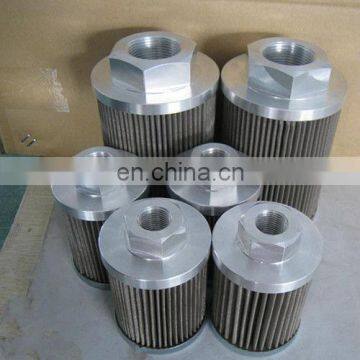

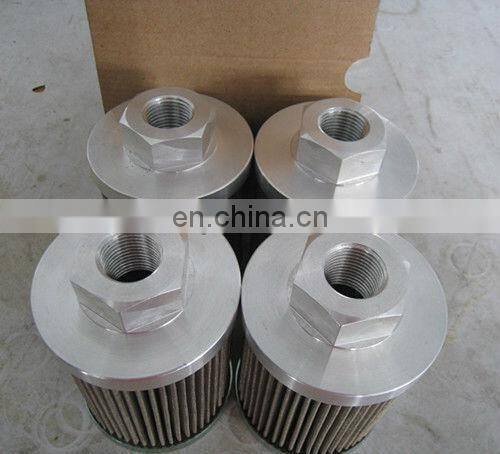

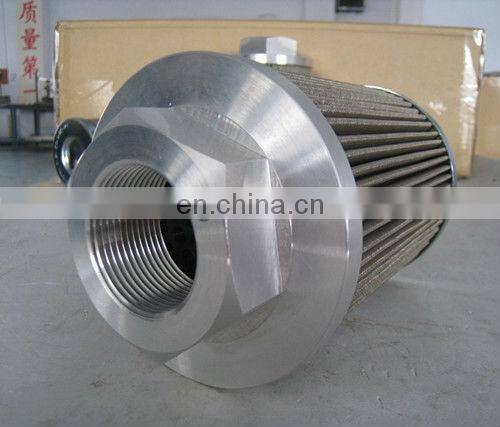

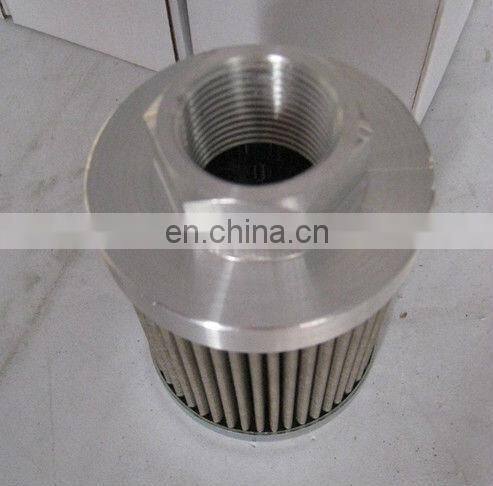

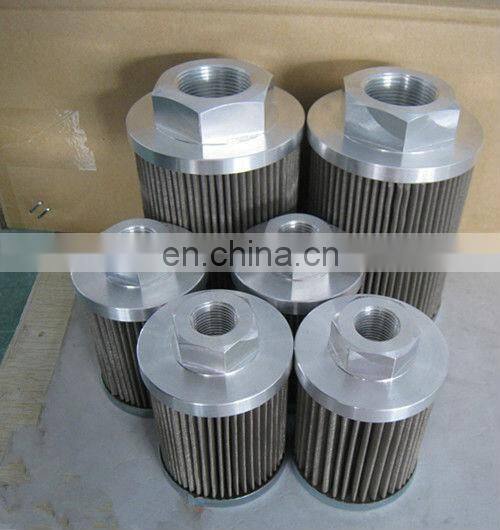

More suction filter pictures show
1.Film bag,than box inside,Carton,wooden outside.Natural package
2.As your requirements
3.Shipment port:Shanghai or any other Chinese ports
4.By international express,air and sea
Delivery Detail:7-15 working days after confirming payment
Xinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer integrating design, production and marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety of high-quality products.
Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in petroleum, chemical and metallurgical machinery, textile, pharmaceutical, automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers with the best quality service.
We are manufaturer of vearies filters for more than 14 years. We can make different models and sizes as your requiremenst. Welcome old and new client inquiry and visit our factory at any time!!!
