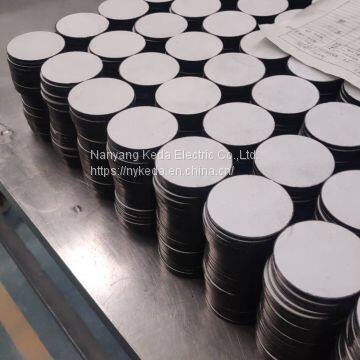

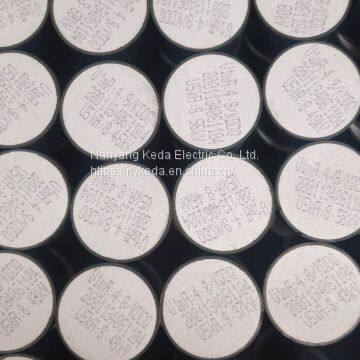

High Gradient Zinc Oxide Varistor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KEDA Electric
Place of Origin:
China
Model Number:
Diameter 60mm to 85mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
KEDA Electric
Place of Origin
China
Model Number
Diameter 60mm to 85mm
Superior electrical performance:
Using the original raw material formula, the unique chemical co-precipitation process, the unique sintering, double-face vertical grinding pads and fully automatic patented aluminum spraying technology, the produced resistor chip guarantees its high current tolerance and also takes into account its aging characteristics. It can be installed in various insulation media, and the resistors are common to both AC and DC. The company has successfully developed a high-gradient resistor with a potential gradient of 350V / mm, which reduces the insulation level and meets customers' design requirements for miniaturization of GIS surge arresters.
| Main Specification of high gradient Metal Oxide Varistor | |||||||||||
| Type | Overall dimension (mm) |
D.C.reference voltage U1mA （reference current is 1mA）(kV) |
(UxkA/U1mA D C) Max. ratio of residual voltage (UxkA/U1mA D C) (at 8/20µs) |
Current impulse withstand capability | Recommend-ed rated voltage UR (kVrms) |
Recommended max. continuous operating voltage(MCOV)and peak value of resistive current under MCOV | Aging Coefficient | ||||
| Outer diameter |
Inner diamter | Height | 4/10µs (kA) |
2ms (A) |
MCOV (kV) |
IR (µA) |
|||||
| MOV60×22.5 | 60.0±1.0 | 22.5±1.0 | 6.3-8.1 | 1.66(at 10kA) | 100 | 400/500 | U1mA/√2 | UR×0.8 | 220 | ＜0.96 | |
| MOV71×22.5 | 71.5±1.0 | 22.5±1.0 | 6.3-7.9 | 1.60(at 10kA) | 600/800 | 250 | |||||
| MOV71/26×22.5 | 71.5±1.0 | 26.0±1.0 | 22.5±1.0 | 6.3-7.9 | 1.65(at 10kA) | 500/600 | 250 | ||||
| MOV85/26×22.5 | 85.5±1.0 | 26.0±1.0 | 22.5±1.0 | 6.3-7.9 | 1.58(at 10kA) | 800/900 | 250 | ||||
| MOV85×22.5 | 85.5±1.0 | 22.5±1.0 | 6.3-7.9 | 1.55(at 10kA) | 900/1000 | 320 | |||||
