Replacement Air/Oil Separator Element Filter 10651874 for Screw Compressor Parts
US$ 20 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
APS
Place of Origin:
China
Model Number:
10651874
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Replacement Compressor Air/Oil Separator Element Filter 02250125-500US$ 15 - 38MOQ: 1 Piece -
Super Quality Low Price Compressor Air/Oil Separator Element 02250145-897US$ 15 - 128MOQ: 1 Piece
-
Supply Compressor Air/Oil Separator Filter Element 250028-244US$ 15 - 99MOQ: 1 Piece
-
Primary Air/Oil Separator Element 250034-082 With Pleated Hv Glass FiberUS$ 15 - 55MOQ: 1 Piece
-
Primary Air Oil Separator Filter Element 250034-085 for Compressor PartsUS$ 15 - 65MOQ: 1 Piece
Brand Name
APS
Place of Origin
China
Model Number
10651874
Type
Other, Air oil separator
Replacement Air/Oil Separator Element Filter 10651874 for Screw Compressor Parts:
1.Filtering precision:0. 01 Micron .
2.Oil contained in compressed is below 3ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5.Initial pressure differential≤0.02Mpa.
6.Filter element of air oil separator is made by the thin fiberglass,which imported from HV&Lydall company.
| Model | 10651874 |
| Filter media | HV Fiberglass |
| Removal rating | 0.01micron |
| Size | OD=290mm, H=450mm |
| Collapse pressure | 21-210Bar |
| Cap material | SSTL |
| Working temperature | -20ºC-100ºC |
| MOQ | 1pcs |
| Packing | Neutral packing or as customers' request |

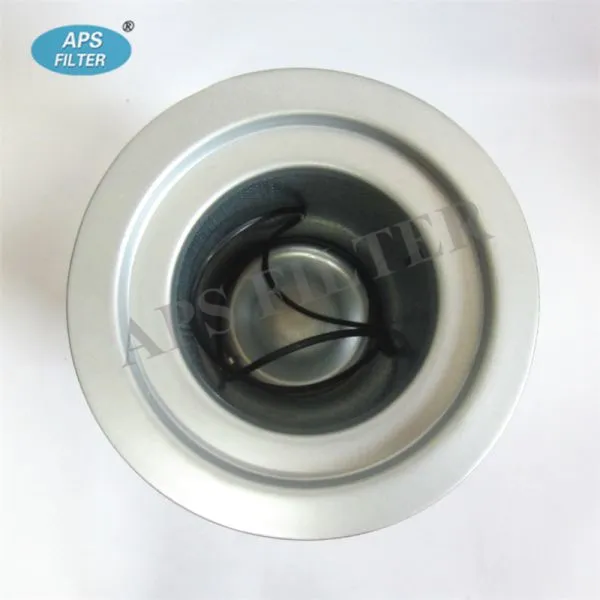

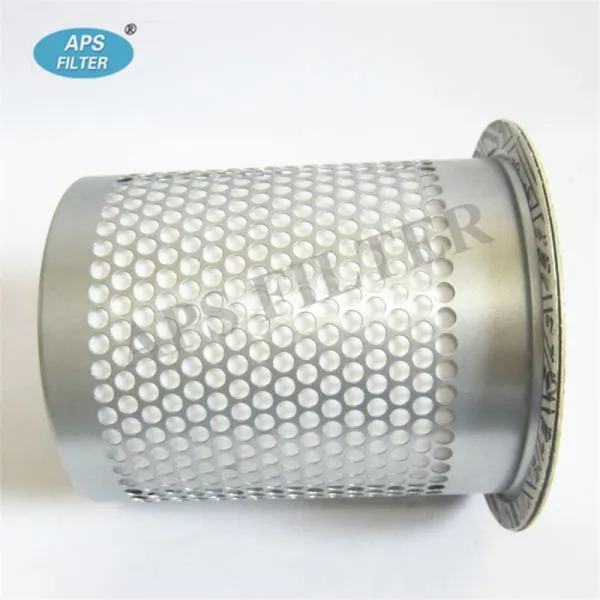

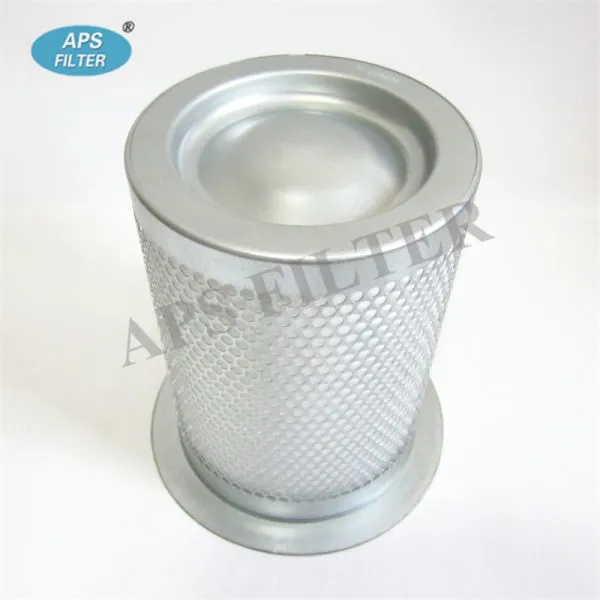

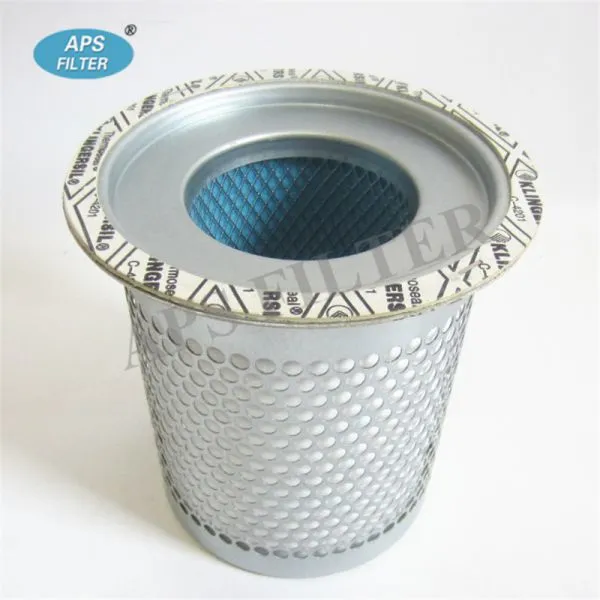

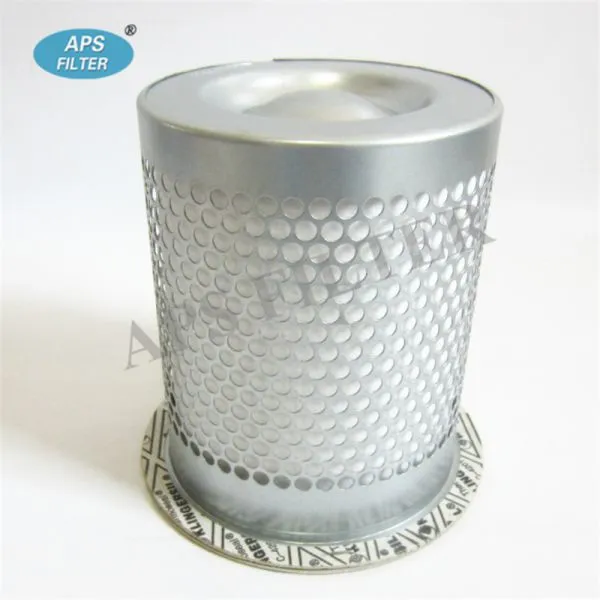

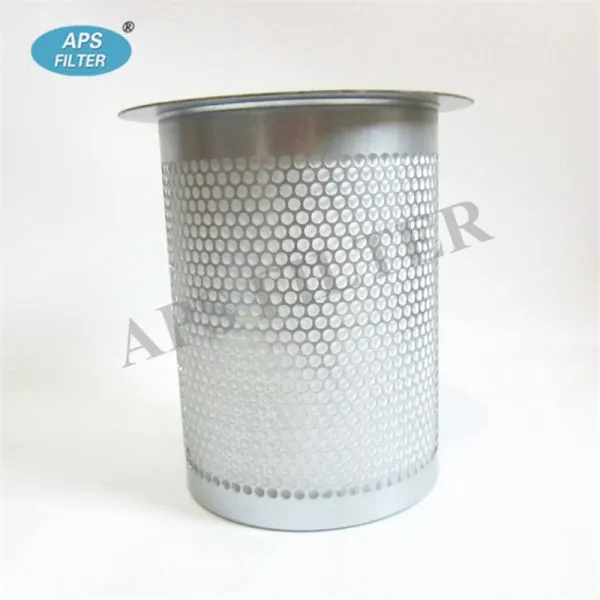

More APS Compressor separator 10651874 Pictures:
APS Filter can also supply following parts:
| 10494574 |
| 10525274 |
| 10533574 |
| 10651874 |
| 10882574 |
| 11427474 |
| 11427274 |
| 100003725 |
| 100005424 |
| 100007587 |
| 100014428 (98262/173) |
| 13010174 |
| 13088474 |
| 1311125600 |
| 13138274 |
| 13363674 |
| 3221130480/QX103383 |
| 43996-1 |
| 43996-2 |
| 55B29 |
| 59180 |
| 59177 |
| 98262/26 |
| 98262-33 |
| 98262/78 |
| 98262/108 |
| 98262/162 |
| 98262/174 |
| 98262/197 |
| 98262/194 |
| 98262/214 |
| 98262/5094 |
| 9826233238 |
| CK4175-2(100005424)(QX193107) |
| CK4230-1 |
| CK4175-1 |
| CK6127/23 |
| LB30060003 |
| QX104000 |
| QX104008 |
| QX104009 |
| QX107198 |
| QX109827 |
| QX55829 |
| QX102271/QX102272 |
| CK4140-1 |
| A13010174 |
Working Principle:
Compressed air from the compressor head mixed with different sizes oil droplets. Larger sizes can be removed easily when they passed oil tanks, while small sizes (diameter less then 1um ) must be filtered through oil gas separator nmicron glass fiber filter layer.
After the diffusion of oil particles through filter material and the mechanism of inertia collision condensation, intercepted directly by filter material, finally make suspended oil particles in compressed air quickly condensed into oil droplets.
Under the action of gravity, Oil concentration at bottom of oil separator, through the bottom concave back inlet tubing then return to head lubricating oil system, at last compressor discharged purer oil-free compressed air.
Air oil separator is an essential component for air compressors. High quality oil separator element not only can guarantee the compressed air generated by compressor, and the separator working life up to thousands of hours.
Xinxiang APS Filter Co., Ltd. Was established in 1997, APS have a production construction area of 60, 000 square meters, plus a 1000 square meters working and living area including modern office building, multi-function hall and staff apartment, etc, existing staff more than 200 people including high and intermediate professional technicians and management staff of 50 people. APS Filter Co., Ltd is a global and professional manufacturer and service-provider in compressor filter element and post-treatment equipment with integration of R&D, design, manufacture and marketing.
APS according to the world first-class standard set up R&D center, the filtering technology research and development center focusing on the filter research and application of technological innovation and development and production of various kinds of filter element, also participate in multiple filtering industry standards. In June 2002, APS has passed the ISO9001 quality system certification, ISO14001 environmental management system certification, In 2009, In APS has acquired the prizes of"Advanced Utilization of Foreign Capital Enterprise" and in 2010 acquired "AAA Grade Credit Enterprise". We focus on providing customers with high quality best price products, not only received the social recognition, and was deeply loved by customers both in China and abroad, and different l kinds of replacement filter, air compressor filter, precision filter, vacuum filter, water filter and non-standard filter custom-made occupies a large market in the world.
Related products:
Our ways of transport:
FAQ
Q1. What is your product range?
A: Our products cover replacement hydraulic filter, Air compressor filters, Compressed air filter element, Heavy truck insert filters, Vacuum pump filters, and Some spare parts for compressors.
Q2. Is customized filter or OEM available?
A: Yes, just offer your required specifications and drawings.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build new molds, but open new mold fee charged, when you place bulk order, the mold fee can return back.
Q4. What's your terms of packing?
A: Generally, we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q8. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
