reminder:

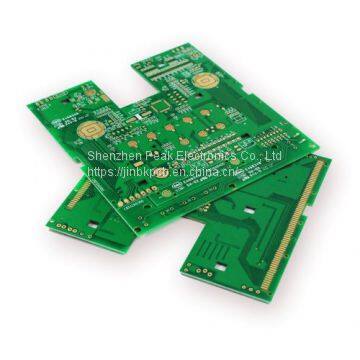

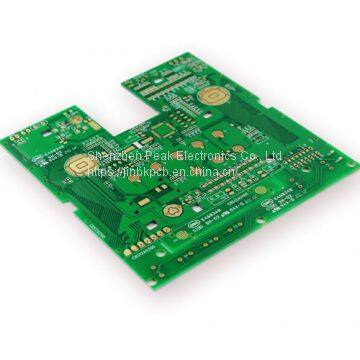

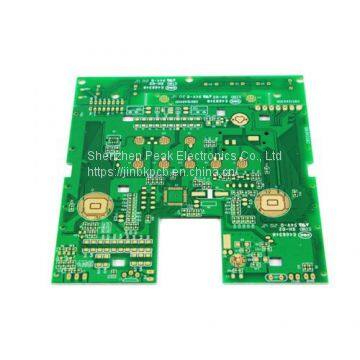

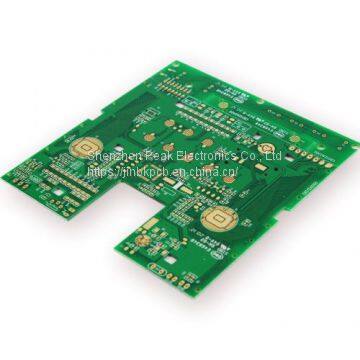

1. The pictures are all samples, only for appearance and process reference, there is no stock for sale, our factory mainly processes customized products.
2. The price of the picture is the regular quotation for reference only. The price of PCBA, SMT, dip and SMD OEM products is the regular quotation for processing fee. The electronic components are provided by the customer. The actual price is determined by both parties according to the customer demand.
Overview of production line strength and factory capacity
Factory scale
Plant area: 15000 ㎡
-
Main products: circuit board and patch, FR-4 circuit board, aluminum based circuit board, PCB, FPC
Number of workers: 101-200
Number of proofers: 6
Board house area: 10000 ㎡
Number of people making board: 10
Product line: FR-4 circuit board, aluminum base circuit board
Main sales areas: China, Hong Kong, Macao and Taiwan, South America, North America, Japan, East Asia, Southeast Asia, Middle East, Eastern Europe, Western Europe, Africa and the world
Making ability
Manufacturing capacity: FR-4 (all glass trip), aluminum base plate, copper base plate, CEM-1 (half glass fiber), high Tg, high CTI, high frequency plate, etc.
1、 Processing layers: 1-12
2、 Processing area: hard plate 1200 * 600mm, FPC flexible plate 500 * 500mm.
3、 Finished copper thickness: 0.5-6 oz
4、 Thickness of finished plate: hard plate 0.2-2.0mm, FPC flexible plate 0.08-0.32mm.
5、 Minimum line width: hard plate 0.1mm/4mil, FPC flexible plate 0.07mm.
6、 Minimum wire spacing: hard plate 0.1mm/4mil, FPC flexible plate 0.07mm.
7、 Minimum finished aperture: 0.2mm/10mil,
8、 Minimum resistance bridge width: 0.1mm/4mil
9、 Minimum profile tolerance: ± 0.10 mm / 4 mil
10、 Wing curvature ≤ 0.7% flame retardant grade: 94v0
11、 Resistance welding type: photosensitive ink (green, red, yellow, black, purple, white, blue, dumb green, etc.)
12、 Surface treatment type: Tin spray, gold deposition, gold plating, nickel plating, silver deposition, OSP oxidation resistance.
Production proofing time
Production proofing time: 3 days (24 hours in an emergency), 6-10 days (3 days in an emergency) for multilayer boards, 5-6 days for FPC flexible boards
Small batch: 4-6 days, depending on the quantity, about 10 days for multilayer board.
Batch: 7-8 days, multilayer board 12-15 days.
Customer information
Documents to be provided by the customer:
1.dxp 2. Protel 99 SE 3.camnt95 4. Powerpcb 5. CAD 2012
Please choose one of the above five
The data to be provided for making circuit board are as follows:
1. PCB data (drawing of circuit board)
2. Process requirements:
Surface manufacturing process: tin spraying, gold plating, gold deposition, nickel plating, oxidation resistance. (one of them)
Welding resistance color: dark green, light green, blue oil, white oil, red oil, etc. (one of them)
Number of floors: 1-12 (one of them)
Plate thickness: 0.4 ~ 2.5mm (one of them)
Plate: FR-4, aluminum, copper, high frequency, cam-1, etc. (one of them)
Copper thickness: 1oz-6oz (one of them)
3. quantity
4. Payment method
5. PCBA OEM products shall be provided with components and BOM list by the customer.
Note: if the majority of customers do aluminum substrate, its thermal conductivity can be generally divided into: ordinary 1.0, medium and high conductivity (one of them)
Special requirements: impedance, BGA, minimum aperture up to 0.2mm, minimum line width / line distance 0.075mm
