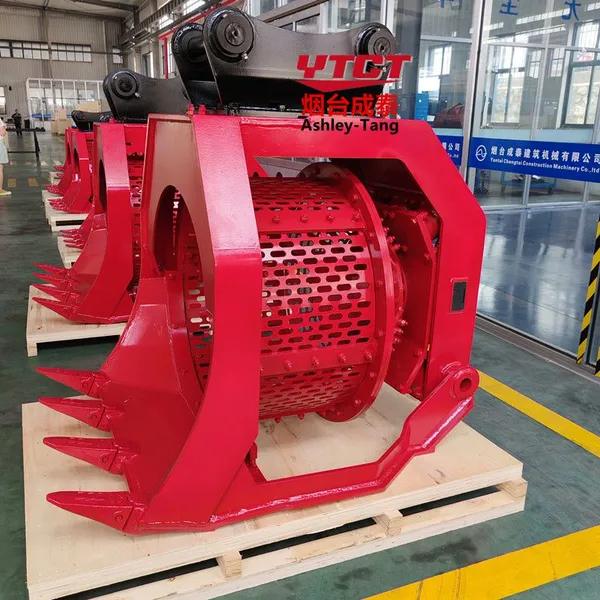

Help CenterYTCT China Factory 360 Degree Rotary Screening Bucket for Excavator
Related Products
-
YTCT CTHB 360 Degree Rotation Sieve Bucket Mini Rotary Screening Bucket for Mini ExcavatorsUS$ 800 - 100000MOQ: 1 Piece -
China Excavator Attachment Hydraulic Concrete Rock Breaker Jack Hammer Breaking Hammer Hb40g Hb30g Hb20g HB15GUS$ 6000 - 9000MOQ: 1 Piece
-
Furkawa Hydraulic Breaker Hb10g Hb20g Hb30g Rock Breaker Hammer (martillo Hidraulico)US$ 800 - 100000MOQ: 1 Piece
-
Hydraulic Breaker Box Type Hammer Attachments Models HB15G HB20G HB30G HB40GUS$ 800 - 100000MOQ: 1 Piece
-
Hitachi Rock Breaker Soosan Breaker Korea Krupp Hydraulic BreakerUS$ 800 - 100000MOQ: 1 Piece
| Model | Unit | YTCT-SD01 | YTCT-SD04 | YTCT-SD06 | YTCT-SD08 | YTCT-SD10 |
| Suitable Excavator Weight | ton | 2-4 | 5-9 | 12-17 | 18-25 | 26-35 |
| Screening Diameter E | mm | 350 | 700 | 840 | 1200 | 1600 |
| Bucket Inner Depth F | mm | 280 | 550 | 650 | 880 | 1230 |
| Oil Pressure | bar | 140-200 | 160-220 | 180-240 | 200-260 | 200-300 |
| Oil Flow | L/min | 20 | 40 | 80 | 100 | 150 |
| Bucket Capacity | m³ | 0.05 | 0.20 | 0.45 | 1.05 | 2.2 |
| Bucket Weight | kg | 220 | 560 | 970 | 1400 | 2600 |
Prodcut Application:
Excavator rotary screening bucket can separate stone from sand, classify soft materials, especially smaller size granule. It is widely applied to agriculture, forestry , civil and irrigation and construction works.
Prodcut Features:

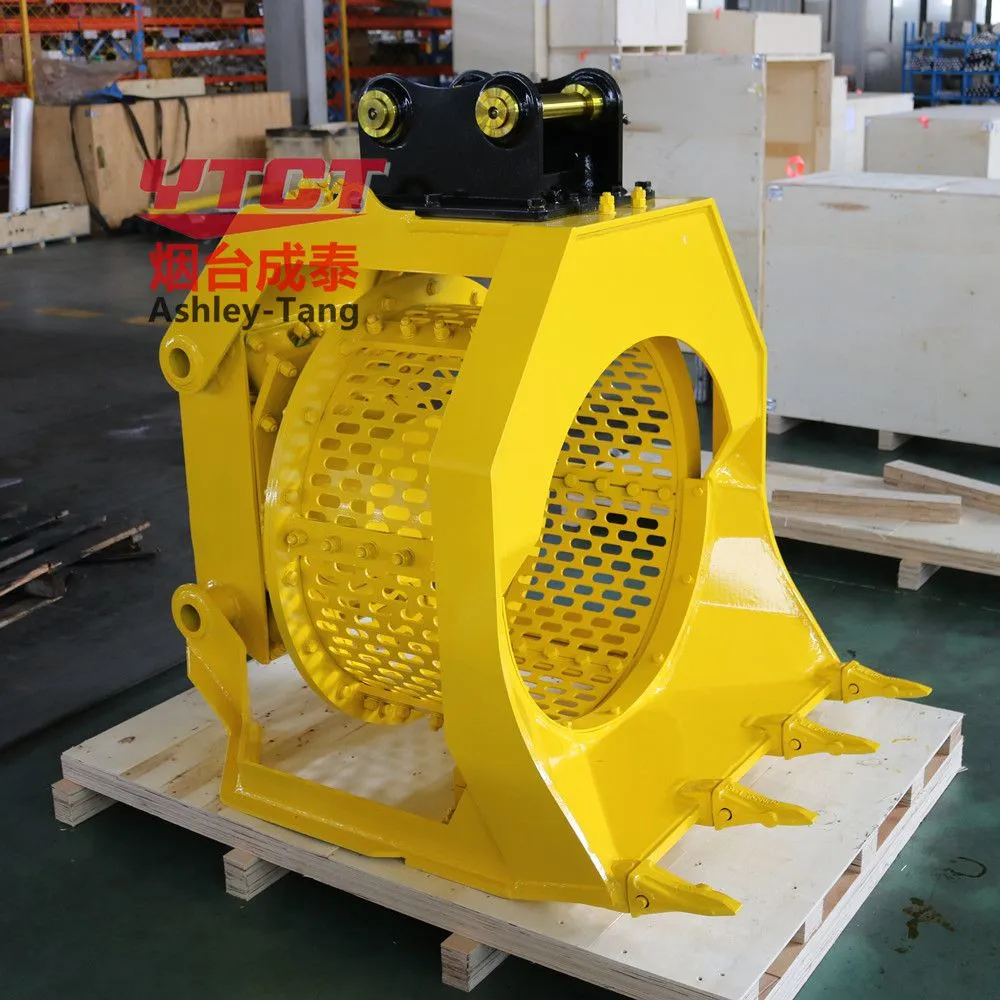

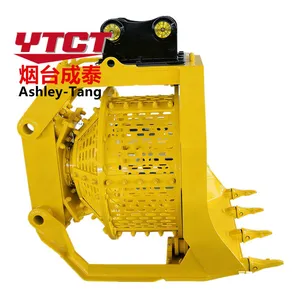

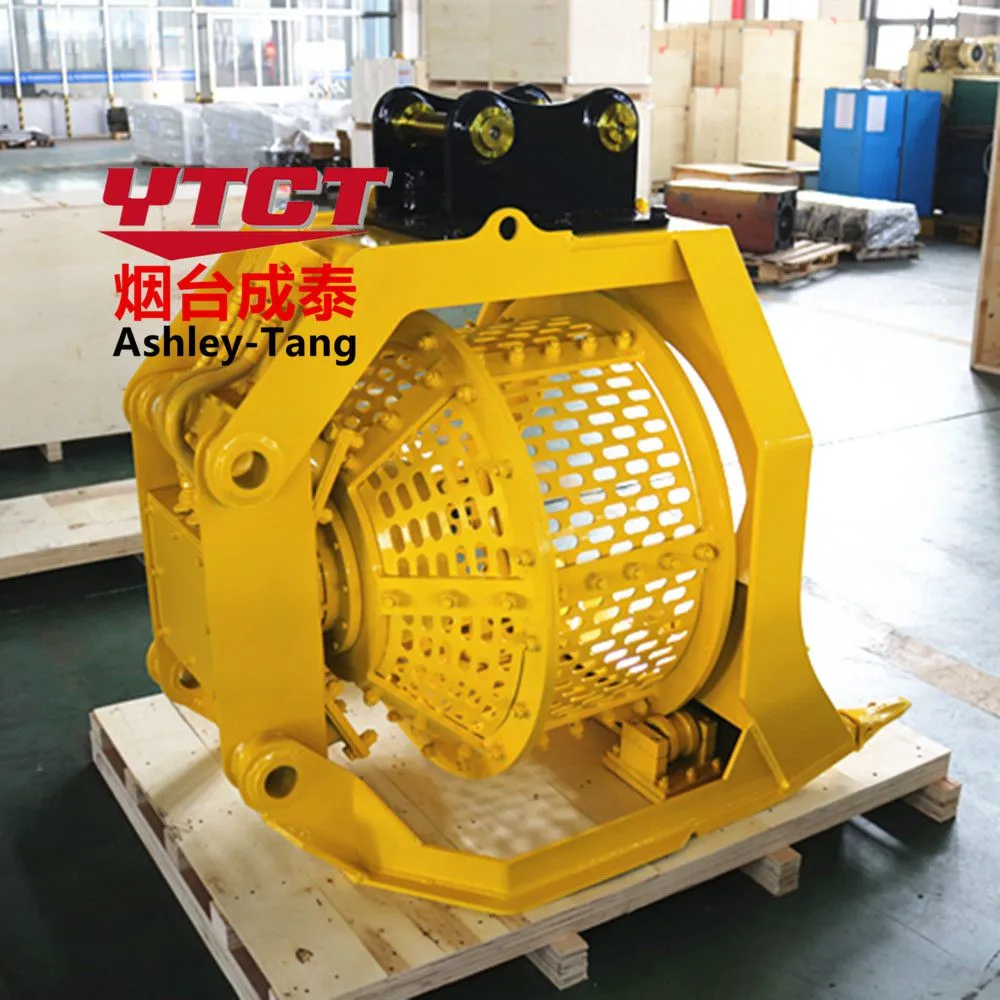

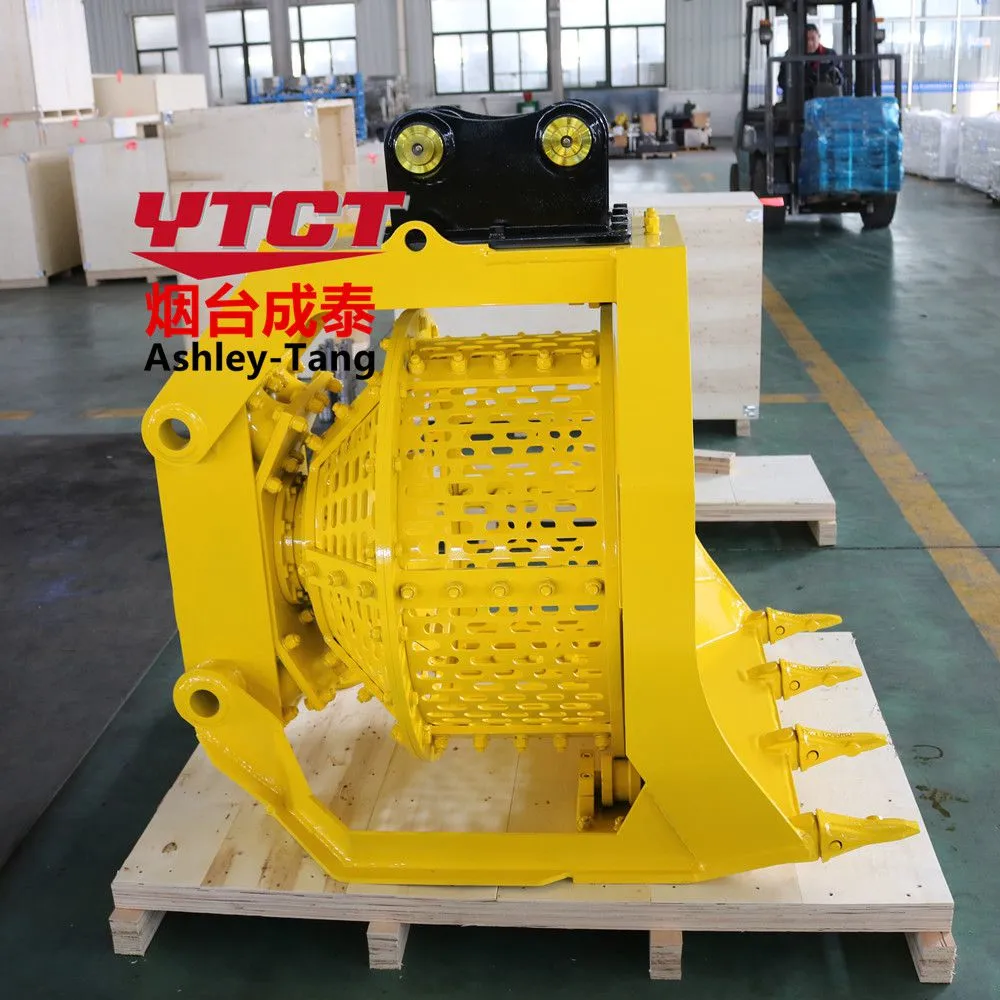

YTCT rotary screeing bucket can finish both screening and diging jobs at once, it can increase the working efficiency easily comparing to excavator skeleton bucket.

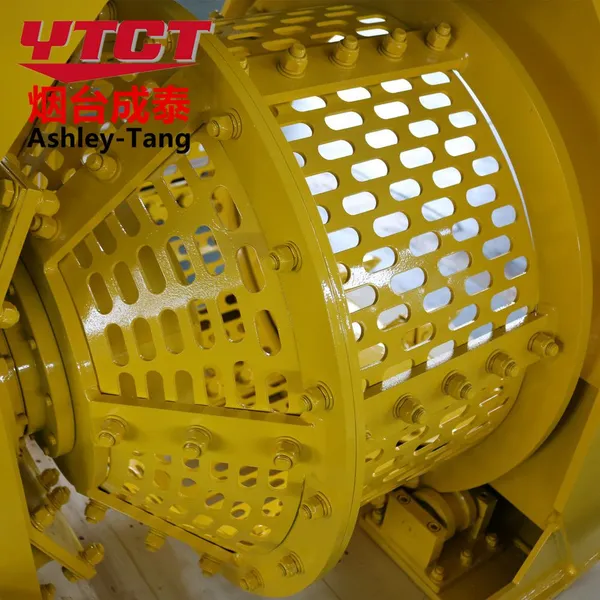

The screeing mesh is modular design with various mesh sizes. The mesh hole sizes could be choosed from 20*20 to 80*80MM.
The mesh is made of HARDOX 400/450 steel material for much longer working life.
The screening bucket also reduces the machine operation cost,and make human's hard work getting easy.
· Agriculture
The attachment is prominent in this sector because of the separation of digging and soil screening. It is more ideal for large scale farming. This is because there is a need to turn the soil constantly for different purposes.
· Forestry
The rotary screening bucket can also be of service in the large scale clearing of forests. They can perform functions such as digging and leveling of land area.
· Irrigation
Irrigation is majorly about digging the ground and material screening. The excavator rotary screening bucket is ideal for such purpose. However, you can further add other attachments, such as the excavator thumb, to help in the digging part.
· Road Building
Excavator rotary screening bucket are also ideal for road building. However, this might be at stages where there is a need to transfer and separate stones from sand.
· Cleaning Rivers
Because of their design, they are also ideal from clearing secluded part of waterbodies. However to effectively use them, you have to go for the bigger size. The bucket part will help hold the materials while the mesh will drain the water.
excavator rotary screening bucket is ideal in places in digging, and screening is done simultaneously. It is an essential attachment for excavators used in works related to Agriculture, Forestry, Irrigation. With the products, there is an assurance of efficiency and productivity
