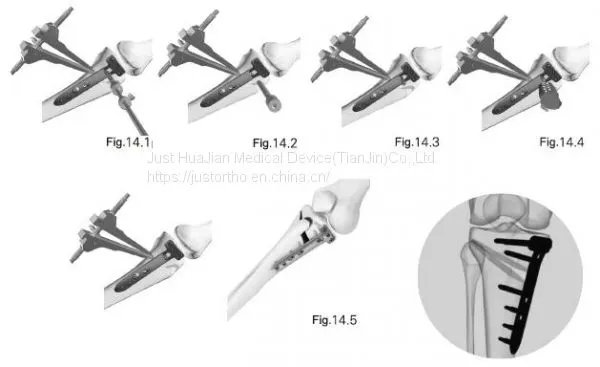

Periarticular Locking Plate System
Product Features
7°posterior slope with left/right design conforms to the anatomy of tibial plateau;
Screw orientation meets osteotomy equirements and ensures optimum support of articular surfaces;
The plate's high strength, in combination with the axially and angularly stable LHS, ensures absolute stability of the osteotomy fixation;
Long shaft portion evenly transmits the occurring forces into the tibial shaft;
Pretensioning and toughness of the plate allows compression of the lateral hinge ;
Tapered, rounded tip facilitates plate insertion.
Technical parameters:
1. Material: Ti
2. Specification: 116mm*5 hole(L/R), 102mm*3 hole(L/R), 120mm*4 hole(L/R), 141mm*5 hole(L/R)
Locking Screw: 5*(24-85)mm Cortical Screw: 4.5*(24-55)mm
knee joint replacement techniques manufacturer:Just HuaJian Medical Device(TianJin)Co.,Ltd.
Packaging & Delivery
Packaging |
Inner: Three layers of sterile package, both are Tyvek + PETG heat-sealing package, covered by carton and heat shrinkable filmsExternal: Standard carton |
Lead Time |
7-21 days (To be negotiated) |
Delivery |
Door to door (DHL/TNT/UPS/FEDEX/EMS, etc.) |
JUST has developed most comprehensive hip and knee product family in China including joint prosthesis materials, knee prosthesis types, Head Options Primary Hip prosthesis and Hip Spacer Mold instrument.If you need, please contact us.
