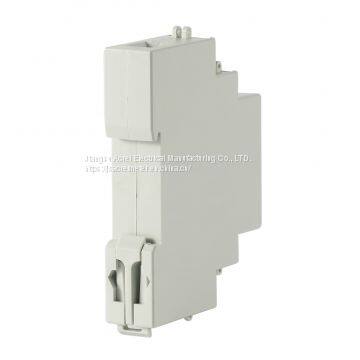

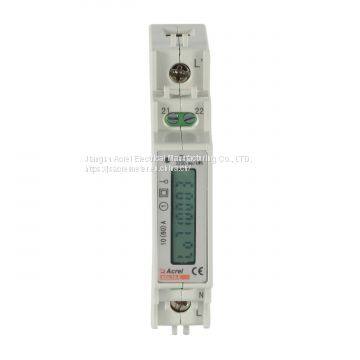

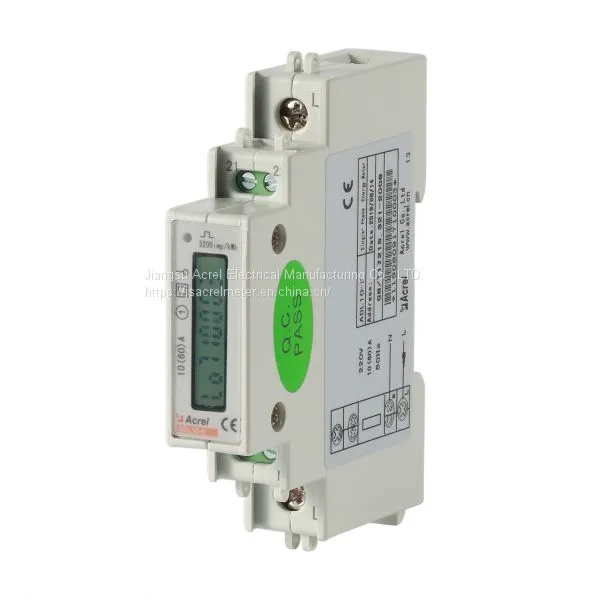

Acrel 300286.SZ ADL10-E/C LCD Display RS485 Single Phase Digital Energy Meter

                      ADL10-E Single Phase Electric Energy Meter

  General

ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standar

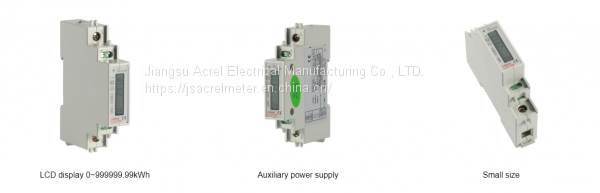

Features

● AC 220V
● 10（60）A
● RS485，MODBUS-RTU
● LCD display
● kWh Class 1，Kvarh Class 2
● U、I、P、Q、S、PF、kWh、kvarh

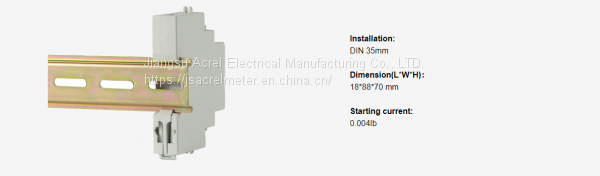

● DIN 35mm

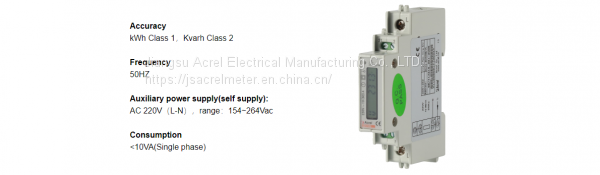

Technical Parameters

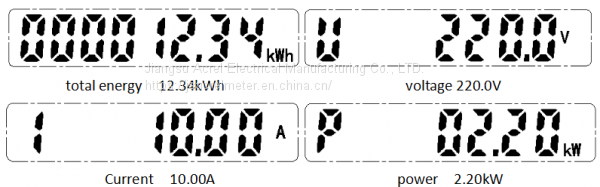

 LCD Display

Function

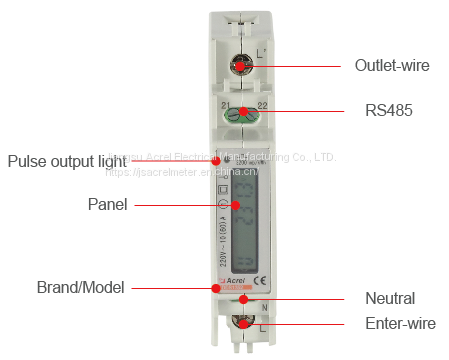

                                        Wiring

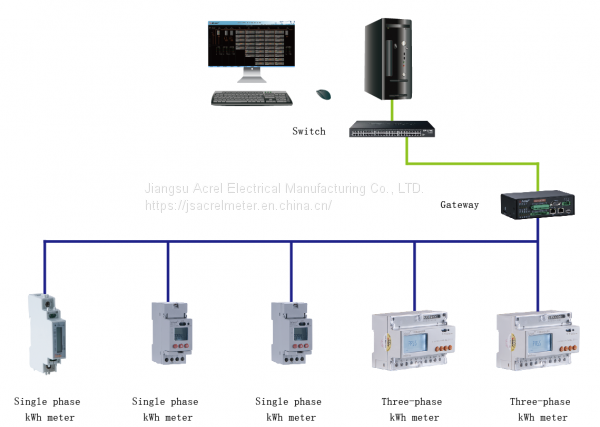

Typical connection

Detailed Information
