sondex ATW-227 hastelloy C-276 plate and shell heat exchanger high temperature pressure marine seller
- 2500 Set / Sets per Month
- qingdao
- T/T
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Brand Name: | reapter | Place of Origin: | China | Model Number: | ATW40-165R-50D |
Certification: | Other, CE, ISO9001 | Condition: | New | Structure: | Plate Heat Exchanger |
Product Description

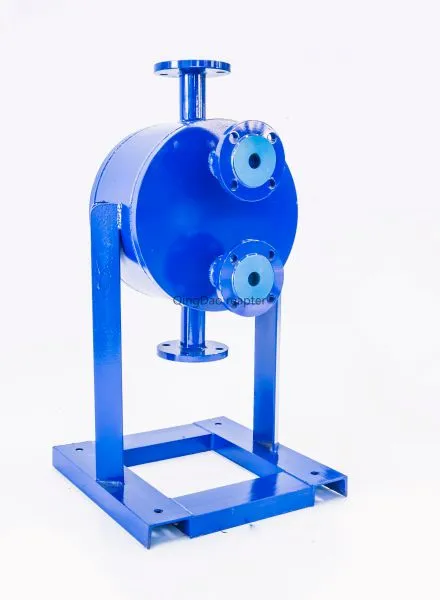

The plate and shell heat exchanger adopts a circular corrugated heat exchanger plate that welded into a heat exchanger lathed bundle and combined with the structure of the pressure vessel shell. It also has a high heat transfer efficiency,compact structure and resistant to high temperature & pressure like shell tube heat exchanger. The plate and shell heat is durable under high temperature & pressure,large temperature difference and thermal shock, which is in a leading position in the industry.
Maximum volume:2500m3/h; Maximum design pressure:100bar
Maximum temperature:450 celsius degree; Minimum difference in temperature:0.5-1celsius degree
Nozzle diameter:DN25~DN500; Plate thickness:0.8mm - 1.2mm
Gasket material:NBR, EPDM, HNBR, HT-NBR, HEPDM,CR,VITON/FKM
Fixed and movable plate material: Carbon Steel, Stainless Steel, and others on request.
Plate material:AISI304, AISI316L, Titanium,Ti-Pa,Hastelloy C276,254SMO,Nickel, AISI904L.
ATW40-165R-50D
ATW40-165R-50W
ATW50-227R-100W
ATW150-650R-500D
01
Our company has a set-up procedure for the selection and design of the Ruipute plate and shell heat exchanger. According to the specific working conditions provided by the user, the program can make the best selection design to meet this specific working condition, and we can provide the calculation data book and the heat exchanger dimensional sketch in time. Our company can design and manufacture Ruipute plate and shell heat exchanger according to PED or ASME specifications, and can provide corresponding qualification documents for design, manufacture, inspection, packaging, storage and transportation.
02
Qingdao Ruipute Plate and shell heat exchangers have been approved by relevant Chinese authorities, can be exported to many countries and delivered to users, also we can provide complete relevant documents.
03
Qingdao Ruipute plate and shell heat exchanger has been applied in many countries around the world, and has been recognized by many professional users. It is very distinctive in some industries.
Refrigeration industry; chemical industry; pharmaceutical,food and beverage industry; mechanical matching oil cooler; energy and electricity; shipping industry; steel, metallurgy industry;district heating industry; textile industry; paper industry
